| Place of Origin: | Guangdong,China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 2B6247 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Packaging Details: | strong carton box or as customers need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union,Paypal or Others |
| Supply Ability: | 1000pcs/week |
| Material: | Iron Plate , Rubber Bellows | Firestone: | W01-358-6947 |
|---|---|---|---|
| Gas Hole: | 1/4NPTF | Screw Center Distance: | 86 Mm |
| Cover Plate Diameter: | 160 Mm | Pressure Ability: | 0.2-0.8 M Pa |
| Stroke: | 95-325 Mm | Two Blind Nuts: | 2X3/8-16UNC |
| High Light: | air helper springs,air suspension parts |
||
W01-358-6947 Firestone Air Springs For Hendrickson Auxiliary Number:S-8701

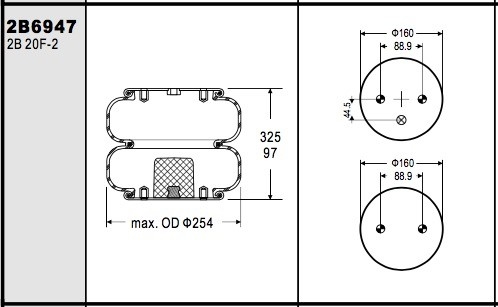

GUOMAT 2B6947 Specifications and Technical Data
Compressed Height: 3.12 inches /
Top Cover Plate Diameter: 6.31 inches / 160mm
Bottom Cover Plate Diameter: 6.31 inches / 160mm
Screw Center Distance : 89 mm
Distance Gas Hole Between Nut: 44.5 mm
Top Cover Plate Screw (Nut) Tooth : 2X1/2-13UNC
Bottom Cover Plate Screw (Nut) Tooth : 2pcsX3/8-16UNC
One hole in the middle of the Bottom Cover Plate:10.3
Rubber Bellows MAX Diameter: 262 mm
The Working Stroke : MAX 325 mm to MIN 95 mm
Gas Hole / Air inlet : 1/4 NPTF
Firestone Bellows Number: 20-2
Goodyear Bellows Number: 578-92-3-206 / 578923206 / 578 92 3 206
Bellows NO.: 20-2
Assembly Weight: 8.1 lbs
Design Height: 9-11 inches
Loading Capacity at 20 psig: 648 lbsf
Loading Capacity at 60 psig: 1,944 lbsf
Loading Capacity at 90 psig: 2,916 lbsf
Maximum Diameter: 10.4 inches
Operating Temperature: 56Cº to -53Cº
Goodyear: 2B6947 Cross others OEM
GUOMAT NO.2B6947
Firestone:W01-358-6947
Firestone:W01 358 6947
Firestone:W013586947
Contitech : FD 200-25 428
Contitech :FD200-25 428
Contitech :FD20025 428
Goodyear: 2B9-255
Goodyear:2B9255
Goodyear:2B9255
Goodyear Bellows: 578-92-3-206
Goodyear Bellows:578 92 3 206
Goodyear Bellows:578923206
Hendrickson Auxiliary Number:S-8701
Ridewell Number:1003586947C
Triangle Part Number:4428
Triangle Bellows Number:6332

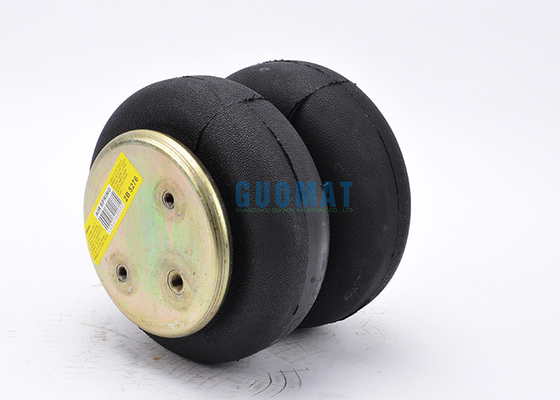

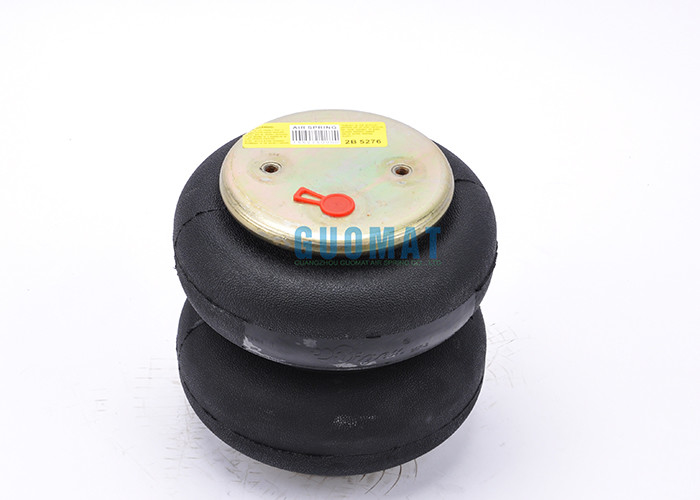

Description and application Of GUOMAT 2B6947 air spring:
This kind of GUOMAT 2B6947 that has two Two Pillars Nuts at the top of the Cover Plate And Two Blind Nuts at the bottom of the Cover Plate. one Gas Hole / Air inlet 1/4 NPTF at the side of the top of the cover plate.This air spring can be used on trailers for retrofitting. At the same time can be used in many industrial equipment.It is very convenient to install.
