Rubber Bellows Industrial Air Spring 161339 FD200-25507 FSIP OEM W013586948

Rubber Bellows Industrial Air Spring 161339 FD200-25507 FSIP OEM W013586948

  • Rubber Bellows Industrial Air Spring 161339  FD200-25507 FSIP OEM W013586948
  • Rubber Bellows Industrial Air Spring 161339  FD200-25507 FSIP OEM W013586948
Rubber Bellows Industrial Air Spring 161339  FD200-25507 FSIP OEM W013586948
Product Details:
Place of Origin: Guangdong,China
Brand Name: GUOMAT
Certification: ISO/TS16949:2009
Model Number: 2B6960
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Packaging Details: strong carton box or as customers need
Delivery Time: 2-8 work days
Payment Terms: T/T, Western Union,Paypal or Others
Supply Ability: 1000pcs/week
Contact Now
Detailed Product Description
Material: Iron Plate , Rubber Bellows Firestone: W01-358-6960
Gas Hole: 1/4NPTF Screw Center Distance: 86 Mm
Cover Plate Diameter: 160 Mm Pressure Ability: 0.2-0.8 M Pa
Stroke: 95-325 Mm Two Blind Nuts: 2X1/2-13UNC
High Light:

air helper springs

,

air suspension parts

ContiTech 161339 FD200-25507 FSIP OEM W013586948 Industrial Air Spring

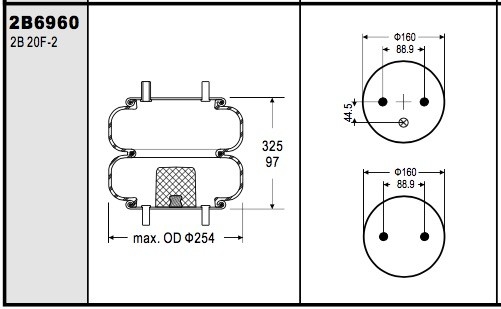

GUOMAT 2B6960 Specifications and Technical Data



Compressed Height: 3.12 inches /

Top Cover Plate Diameter: 6.31 inches / 160mm

Bottom Cover Plate Diameter: 6.31 inches / 160mm

Screw Center Distance : 89 mm

Distance Gas Hole Between Nut: 44.5 mm

Top Cover Plate Screw (Nut) Tooth : 2X1/2-13UNC

Bottom Cover Plate Screw (Nut) Tooth : 2pcsX3/8-16UNC

One hole in the middle of the Bottom Cover Plate:10.3

Rubber Bellows MAX Diameter: 262 mm

The Working Stroke : MAX 325 mm to MIN 95 mm

Gas Hole / Air inlet : 1/4 NPTF

Firestone Bellows Number: 20-2

Goodyear Bellows Number: 578-92-3-206 / 578923206 / 578 92 3 206

Bellows NO.: 20-2

Assembly Weight: 8.1 lbs

Design Height: 9-11 inches

Loading Capacity at 20 psig: 648 lbsf

Loading Capacity at 60 psig: 1,944 lbsf

Loading Capacity at 90 psig: 2,916 lbsf

Maximum Diameter: 10.4 inches

Operating Temperature: 56Cº to -53Cº





Goodyear: 2B6960 Cross others OEM



GUOMAT NO.2B6960

Firestone:W01-358-6960

Firestone:W01 358 6960

Firestone:W013586948
Contitech : FD 200-25 507

Contitech :FD200-25 507

Contitech :FD20025 507

Goodyear Bellows: 578-92-3-206

Goodyear Bellows:578 92 3 206

Goodyear Bellows:578923206

Airspring Supplier: ContiTech
Reference: 161339
Competitor/Supplier Number: FD20025507

Airspring Supplier: Triangle
Reference: 6332
Competitor/Supplier Number: 4507

Suspension Supplier: Tuthill Technology
Competitor/Supplier Number: 7025

Suspension Supplier: Tuthill Technology
FSIP OEM: W016816960

Firestone Trimmed: w013586960





Description and application Of GUOMAT 2B6960 air spring:

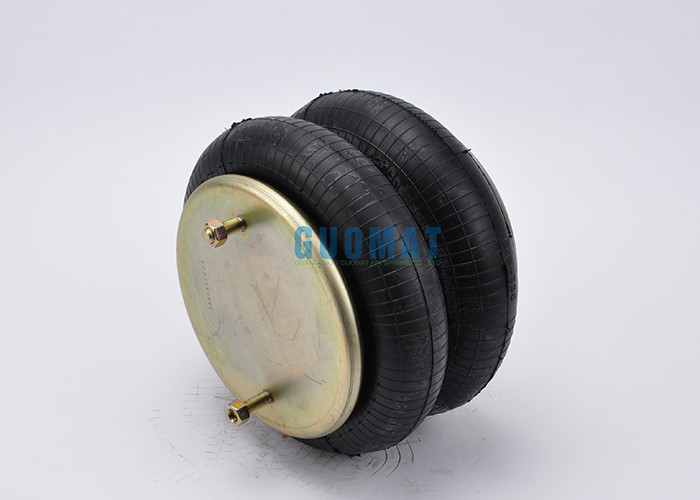

This kind of GUOMAT 2B6960 that has two Two Pillars Nuts at the top of the Cover Plate And Two Blind Nuts at the bottom of the Cover Plate. one Gas Hole / Air inlet 1/4 NPTF at the side of the top of the cover plate.This air spring can be used on trailers for retrofitting. At the same time can be used in many industrial equipment.It is very convenient to install.
