W01-358-7181 Goodyear Air Spring 2B12-411 ContiTech Number FD330-22 472

China W01-358-7181 Goodyear Air Spring 2B12-411 ContiTech Number FD330-22 472 supplier

Large Image :  W01-358-7181 Goodyear Air Spring 2B12-411 ContiTech Number FD330-22 472

Product Details:

Place of Origin: China
Brand Name: GUOMAT
Certification: ISO/TS16949:2009
Model Number: 2B7181

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Packaging Details: strong carton box or as customers need
Delivery Time: 2-8 work days
Payment Terms: T/T, Western Union,Paypal or Others
Supply Ability: 1000pcs/week
Contact Now
Detailed Product Description
Material: Steel And Rubber Goodyear: 2B12-411
Warranty: 12 Months Weight: 6.0 Kg
Other Name: Air Suspension Parts Pressure Ability: 0.2-0.8 M Pa
Package Size: 32*32*22 Cm Gas Hole: 3/8 NPTF

W01-358-7181 Firestone Air Spring Goodyear 2B12-411 ContiTech Number FD330-22 472

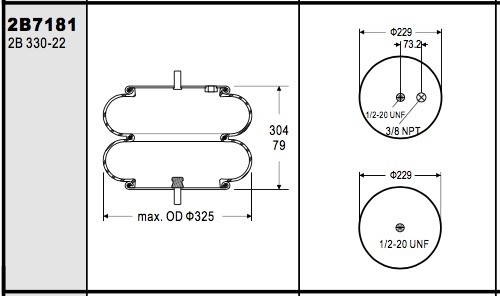

Technical Parameters of GUOMAT 2B7181



1 Inch (pounds) 7181 1 Inch (pounds) 7181
3 Inch (pounds) 6470 3 Inch (pounds) 6470
Maximum Stroke (pounds) 3700 Maximum Stroke (pounds) 3700
Equivalent High Strength Style Number 210 Equivalent High Strength Style Number 210
Extended Height (Similar End Closure) Style Number 22_Ì1.5 Extended Height (Similar End Closure) Style Number 22_Ì1.5
Material 2-Ply Standard Cord Material 2-Ply Standard Cord
Bead plate Type 3 Bead plate Type 3
Blind Nut Centers (inches) 6.2 Blind Nut Centers (mm) 157.48
Port Offset from Blind Nut Centerline (inches) 2.88 Port Offset from Blind Nut Centerline (mm) 73.152
Design Height 9.5 Design Height 241.3
aximum Height (inches) 10.1 aximum Height (mm) 256.54
Maximum Stroke (inches) 6.9 Maximum Stroke (mm) 175.26
Minimum Usable Height (inches) 3.2 Minimum Usable Height (mm) 81.28







OEM Original Equipment Manufacturer:



Firestone:W01-358-7181 / W01 358 7181 / W013587181

Firestone:22C

Air Spring Supplier: ContiTech
Competitor / Supplier Number: FD33022472

Air Spring Supplier: Goodyear
Reference: 578923309
Competitor / Supplier Number: 2B12411

Air Spring Supplier: Triangle
Reference: 6316
Competitor / Supplier Number: 4472

Air Spring Supplier: Dayton Parts
Competitor / Supplier Number: 3547181

Suspension of supplier: Fruehauf
Competitor / Supplier Number: UAB5620

Suspension of supplier: Fruehauf
Competitor / Supplier Number: UCC30541

Suspension of supplier: Hendrickson
Competitor / Supplier Number: S13050

Suspension of suppliers: Leland
Competitor / Supplier Number: SC2018

Suspended supplier: Navistar
Competitor / Supplier Number: 554794C1

Suspension of supplier: SAF Holland
Competitor / Supplier Number: 57007181

Suspended supplier: Ridewell
Competitor / Supplier Number: 1003587181C





Application of rubber air springs on lifting equipment:


Conventional lifting equipment uses cylinders or hydraulic cylinders to lift objects, requiring a large installation space, manufacturing difficulties, heavy weight, easy leakage, and inconvenient maintenance. After using the rubber air spring as the lifting element of the lifting device, the traditional shortcomings of the lifting device are overcome, no maintenance is required, the service life is long, and the operation and replacement are convenient. Therefore, rubber air springs are gradually replacing cylinder products on lifting equipment.





Other kinds of FD 330-22 that GUOMAT have:



GUOMAT NO. Reference Order NO. Force (lbs) Max OD (in) Design height(in) Height Narural frequ.[cpm]
80 psi 100 psi Min MAX
FD 330 22 313 FD 330-22 313 161016 4200 5250 12.9 9.5 4.1 12 102
FD 330 22 318 FD 330-22 318 161270 4200 5250 12.9 9.5 3 12 102
FD 330 22 327 FD 330-22 327 161029 4200 5250 12.9 9.5 4.1 12 102
FD 330 22 331 FD 330-22 331 161009 4200 5250 12.9 9.5 4.1 12 102
FD 330 22 334 FD 330-22 334 161271 4200 5250 12.9 9.5 4.1 12 102
FD 330 22 337 FD 330-22 337 161272 4200 5250 12.9 9.5 4.1 12 102
FD 330 22 343 FD 330-22 343 161273 4200 5250 12.9 9.5 3 12 102
FD 330 22 346 FD 330-22 346 161274 4200 5250 12.9 9.5 3 12 102
FD 330 22 363 FD 330-22 363 161275 4200 5250 12.9 9.5 3 12 102
FD 330 22 364 FD 330-22 364 161276 4200 5250 12.9 9.5 4.1 12 102
FD 330 22 365 FD 330-22 365 161277 4200 5250 12.9 9.5 4.1 12 102
FD 330 22 366 FD 330-22 366 161278 4200 5250 12.9 9.5 4.1 12 102
FD 330 22 367 FD 330-22 367 161279 4200 5250 12.9 9.5 4.1 12 102
FD 330 22 368 FD 330-22 368 161280 4200 5250 12.9 9.5 3 12 102
FD 330 22 465 FD 330-22 465 161281 4200 5250 12.9 9.5 3 12 102
FD 330 22 471 FD 330-22 471 161282 4200 5250 12.9 9.5 4.1 12 102
FD 330 22 472 FD 330-22 472 161283 4200 5250 12.9 9.5 3 12 102
FD 330 22 500 FD 330-22 500 161284 4200 5250 12.9 9.5 3 12 102
FD 330 22 540 FD 330-22 540 161285 4200 5250 12.9 9.5 4.1 12 102
