| Place of Origin: | China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 2B7183 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Packaging Details: | strong carton box or as customers need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union,Paypal or Others |
| Supply Ability: | 1000pcs/week |
| Material: | Steel And Rubber | Goodyear: | 2B12-412 |
|---|---|---|---|
| Warranty: | 12 Months | Weight: | 6.0 Kg |
| Other Name: | Air Suspension | Pressure Ability: | 0.2-0.8 M Pa |
| Package Size: | 32*32*22 Cm | Gas Hole: | 3/8 NPTF |
| High Light: | air helper springs,air suspension parts |
||
Goodyear 2B12-412 W01-358-7183 Firestone Air Suspension For Fruehauf Number UCA0112 WIth Bumper

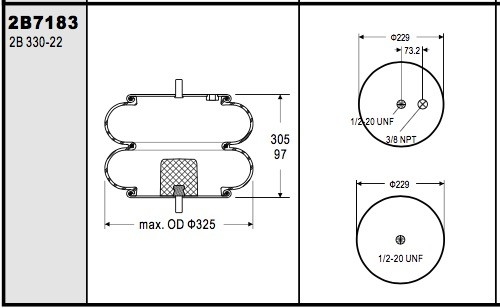

Technical Parameters of GUOMAT 2B7183
| 1 Inch (pounds) | 7183 | 1 Inch (pounds) | 7183 |
| 3 Inch (pounds) | 6470 | 3 Inch (pounds) | 6470 |
| Maximum Stroke (pounds) | 3700 | Maximum Stroke (pounds) | 3700 |
| Equivalent High Strength Style Number | 210 | Equivalent High Strength Style Number | 210 |
| Extended Height (Similar End Closure) Style Number | 22_Ì1.5 | Extended Height (Similar End Closure) Style Number | 22_Ì1.5 |
| Material | 2-Ply Standard Cord | Material | 2-Ply Standard Cord |
| Bead plate Type | 3 | Bead plate Type | 3 |
| Blind Nut Centers (inches) | middle | Blind Nut Centers (mm) | middle |
| Port Offset from Blind Nut Centerline (inches) | 2.88 | Port Offset from Blind Nut Centerline (mm) | 73.152 |
| Design Height | 9.5 | Design Height | 241.3 |
| aximum Height (inches) | 10.1 | aximum Height (mm) | 256.54 |
| Maximum Stroke (inches) | 6.9 | Maximum Stroke (mm) | 175.26 |
| Minimum Usable Height (inches) | 3.2 | Minimum Usable Height (mm) | 81.28 |
OEM Original Equipment Manufacturer:
Firestone:W01-358-7183 / W01 358 7183 / W013587183
Firestone:22C
Air Spring Supplier: ContiTech
Competitor / Supplier Number: FD33022471
Air Spring Supplier: Goodyear
Reference: 578923309
Competitor / Supplier Number: 2B12412
Air Spring Supplier: Triangle
Reference: 6316
Competitor / Supplier Number: 4471
Suspension of supplier: Fruehauf
Competitor / Supplier Number: UCA0112
Suspension of supplier: Fruehauf
Competitor / Supplier Number: UCA0112B
Suspension of suppliers: Leland
Competitor / Supplier Number: SC2019
Suspended supplier: Navistar
Competitor / Supplier Number: 554795C1
Suspension of supplier: SAF Holland
Competitor / Supplier Number: 57007183
Suspended supplier: Ridewell
Competitor / Supplier Number: 1003587183C
Firestone Trimmed: w013587183
Application of rubber air springs on lifting equipment:
Conventional lifting equipment uses cylinders or hydraulic cylinders to lift objects, requiring a large installation space, manufacturing difficulties, heavy weight, easy leakage, and inconvenient maintenance. After using the rubber air spring as the lifting element of the lifting device, the traditional shortcomings of the lifting device are overcome, no maintenance is required, the service life is long, and the operation and replacement are convenient. Therefore, rubber air springs are gradually replacing cylinder products on lifting equipment.
Other kinds of FD 330-22 that GUOMAT have:
| GUOMAT NO. | Reference | Order NO. | Force (lbs) | Max OD (in) | Design height(in) | Height | Narural frequ.[cpm] | ||
| 80 psi | 100 psi | Min | MAX | ||||||
| FD 330 22 313 | FD 330-22 313 | 161016 | 4200 | 5250 | 12.9 | 9.5 | 4.1 | 12 | 102 |
| FD 330 22 318 | FD 330-22 318 | 161270 | 4200 | 5250 | 12.9 | 9.5 | 3 | 12 | 102 |
| FD 330 22 327 | FD 330-22 327 | 161029 | 4200 | 5250 | 12.9 | 9.5 | 4.1 | 12 | 102 |
| FD 330 22 331 | FD 330-22 331 | 161009 | 4200 | 5250 | 12.9 | 9.5 | 4.1 | 12 | 102 |
| FD 330 22 334 | FD 330-22 334 | 161271 | 4200 | 5250 | 12.9 | 9.5 | 4.1 | 12 | 102 |
| FD 330 22 337 | FD 330-22 337 | 161272 | 4200 | 5250 | 12.9 | 9.5 | 4.1 | 12 | 102 |
| FD 330 22 343 | FD 330-22 343 | 161273 | 4200 | 5250 | 12.9 | 9.5 | 3 | 12 | 102 |
| FD 330 22 346 | FD 330-22 346 | 161274 | 4200 | 5250 | 12.9 | 9.5 | 3 | 12 | 102 |
| FD 330 22 363 | FD 330-22 363 | 161275 | 4200 | 5250 | 12.9 | 9.5 | 3 | 12 | 102 |
| FD 330 22 364 | FD 330-22 364 | 161276 | 4200 | 5250 | 12.9 | 9.5 | 4.1 | 12 | 102 |
| FD 330 22 365 | FD 330-22 365 | 161277 | 4200 | 5250 | 12.9 | 9.5 | 4.1 | 12 | 102 |
| FD 330 22 366 | FD 330-22 366 | 161278 | 4200 | 5250 | 12.9 | 9.5 | 4.1 | 12 | 102 |
| FD 330 22 367 | FD 330-22 367 | 161279 | 4200 | 5250 | 12.9 | 9.5 | 4.1 | 12 | 102 |
| FD 330 22 368 | FD 330-22 368 | 161280 | 4200 | 5250 | 12.9 | 9.5 | 3 | 12 | 102 |
| FD 330 22 465 | FD 330-22 465 | 161281 | 4200 | 5250 | 12.9 | 9.5 | 3 | 12 | 102 |
| FD 330 22 471 | FD 330-22 471 | 161282 | 4200 | 5250 | 12.9 | 9.5 | 4.1 | 12 | 102 |
| FD 330 22 472 | FD 330-22 472 | 161283 | 4200 | 5250 | 12.9 | 9.5 | 3 | 12 | 102 |
| FD 330 22 500 | FD 330-22 500 | 161284 | 4200 | 5250 | 12.9 | 9.5 | 3 | 12 | 102 |
| FD 330 22 540 | FD 330-22 540 | 161285 | 4200 | 5250 | 12.9 | 9.5 | 4.1 | 12 | 102 |
