Place of Origin: | China |
Brand Name: | GUOMAT |
Certification: | ISO/TS16949:2009 |
Model Number: | 2B7344 |
Minimum Order Quantity: | 1pc |
---|---|
Packaging Details: | strong carton box or as customers need |
Delivery Time: | 2-8 work days |
Payment Terms: | T/T, Western Union,Paypal or Others |
Supply Ability: | 1000pcs/week |
Material: | Steel And Rubber | Goodyear: | 2B12-304 |
---|---|---|---|
Warranty: | 12 Months | Weight: | 6.0 Kg |
Other Name: | Air Suspension Bellows | Pressure Ability: | 0.2-0.8 M Pa |
Package Size: | 32*32*22 Cm | Gas Hole: | 3/8 NPTF |
High Light: | air helper springs,air suspension parts |
W01-358-7344 Goodyear 2B12-304 Air Suspension For Load Air Supplier Number P10755C

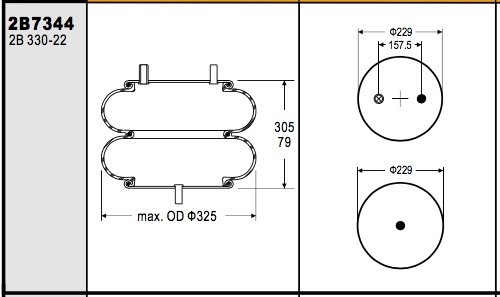

Technical Parameters of GUOMAT 2B7344
1 Inch (pounds) | 7344 | 1 Inch (pounds) | 7344 |
3 Inch (pounds) | 6470 | 3 Inch (pounds) | 6470 |
Maximum Stroke (pounds) | 3700 | Maximum Stroke (pounds) | 3700 |
Equivalent High Strength Style Number | 210 | Equivalent High Strength Style Number | 210 |
Extended Height (Similar End Closure) Style Number | 22_Ì1.5 | Extended Height (Similar End Closure) Style Number | 22_Ì1.5 |
Material | 2-Ply Standard Cord | Material | 2-Ply Standard Cord |
Bead plate Type | 3 | Bead plate Type | 3 |
Blind Nut Centers (inches) | 157.5 | Blind Nut Centers (mm) | 157.5 |
Port Offset from Blind Nut Centerline (inches) | 2.88 | Port Offset from Blind Nut Centerline (mm) | 73.152 |
Design Height | 9.5 | Design Height | 241.3 |
aximum Height (inches) | 10.1 | aximum Height (mm) | 256.54 |
Maximum Stroke (inches) | 6.9 | Maximum Stroke (mm) | 175.26 |
Minimum Usable Height (inches) | 3.2 | Minimum Usable Height (mm) | 81.28 |
OEM Original Equipment Manufacturer:
Firestone:W01-358-7344 / W01 358 7344 / W013587344
Firestone:22C
Air Spring Supplier: ContiTech
Competitor / Supplier Number: FD33022500
Air Spring Supplier: Goodyear
Competitor / Supplier Number: 2B12304
Air Spring Supplier: Triangle
Reference: 6316
Competitor / Supplier Number: 4500
Suspension supplier: load air
Competitor / Supplier Number: P10755C
Suspended supplier: Saurer
FSIP OEM: W017837344
Application of rubber air springs on lifting equipment:
Conventional lifting equipment uses cylinders or hydraulic cylinders to lift objects, requiring a large installation space, manufacturing difficulties, heavy weight, easy leakage, and inconvenient maintenance. After using the rubber air spring as the lifting element of the lifting device, the traditional shortcomings of the lifting device are overcome, no maintenance is required, the service life is long, and the operation and replacement are convenient. Therefore, rubber air springs are gradually replacing cylinder products on lifting equipment.
Other kinds of FD 330-22 that GUOMAT have:
GUOMAT NO. | Reference | Order NO. | Force (lbs) | Max OD (in) | Design height(in) | Height | Narural frequ.[cpm] | ||
80 psi | 100 psi | Min | MAX | ||||||
FD 330 22 313 | FD 330-22 313 | 161016 | 4200 | 5250 | 12.9 | 9.5 | 4.1 | 12 | 102 |
FD 330 22 318 | FD 330-22 318 | 161270 | 4200 | 5250 | 12.9 | 9.5 | 3 | 12 | 102 |
FD 330 22 327 | FD 330-22 327 | 161029 | 4200 | 5250 | 12.9 | 9.5 | 4.1 | 12 | 102 |
FD 330 22 331 | FD 330-22 331 | 161009 | 4200 | 5250 | 12.9 | 9.5 | 4.1 | 12 | 102 |
FD 330 22 334 | FD 330-22 334 | 161271 | 4200 | 5250 | 12.9 | 9.5 | 4.1 | 12 | 102 |
FD 330 22 337 | FD 330-22 337 | 161272 | 4200 | 5250 | 12.9 | 9.5 | 4.1 | 12 | 102 |
FD 330 22 343 | FD 330-22 343 | 161273 | 4200 | 5250 | 12.9 | 9.5 | 3 | 12 | 102 |
FD 330 22 346 | FD 330-22 346 | 161274 | 4200 | 5250 | 12.9 | 9.5 | 3 | 12 | 102 |
FD 330 22 363 | FD 330-22 363 | 161275 | 4200 | 5250 | 12.9 | 9.5 | 3 | 12 | 102 |
FD 330 22 364 | FD 330-22 364 | 161276 | 4200 | 5250 | 12.9 | 9.5 | 4.1 | 12 | 102 |
FD 330 22 365 | FD 330-22 365 | 161277 | 4200 | 5250 | 12.9 | 9.5 | 4.1 | 12 | 102 |
FD 330 22 366 | FD 330-22 366 | 161278 | 4200 | 5250 | 12.9 | 9.5 | 4.1 | 12 | 102 |
FD 330 22 367 | FD 330-22 367 | 161279 | 4200 | 5250 | 12.9 | 9.5 | 4.1 | 12 | 102 |
FD 330 22 368 | FD 330-22 368 | 161280 | 4200 | 5250 | 12.9 | 9.5 | 3 | 12 | 102 |
FD 330 22 465 | FD 330-22 465 | 161281 | 4200 | 5250 | 12.9 | 9.5 | 3 | 12 | 102 |
FD 330 22 471 | FD 330-22 471 | 161282 | 4200 | 5250 | 12.9 | 9.5 | 4.1 | 12 | 102 |
FD 330 22 472 | FD 330-22 472 | 161283 | 4200 | 5250 | 12.9 | 9.5 | 3 | 12 | 102 |
FD 330 22 500 | FD 330-22 500 | 161284 | 4200 | 5250 | 12.9 | 9.5 | 3 | 12 | 102 |
FD 330 22 540 | FD 330-22 540 | 161285 | 4200 | 5250 | 12.9 | 9.5 | 4.1 | 12 | 102 |
