ISO/TS16949 Industrial Air Bags 2B120 With Natural DIA. 120MM MAX DIA.135MM

ISO/TS16949 Industrial Air Bags 2B120 With Natural DIA. 120MM MAX DIA.135MM

  • ISO/TS16949 Industrial Air Bags 2B120 With Natural DIA. 120MM MAX DIA.135MM
  • ISO/TS16949 Industrial Air Bags 2B120 With Natural DIA. 120MM MAX DIA.135MM
ISO/TS16949 Industrial Air Bags 2B120 With Natural DIA. 120MM MAX DIA.135MM
Product Details:
Place of Origin: Guangdong,China
Brand Name: GUOMAT
Certification: ISO/TS16949:2009
Model Number: 2B120
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Packaging Details: strong carton box or as customers need
Delivery Time: 2-8 work days
Payment Terms: T/T, Western Union,Paypal or Others
Supply Ability: 1000pcs/week
Contact Now
Detailed Product Description
Material: Cover Plate , Rubber Bellows GUOMAT: 2B120
Natural DIA.: 120MM MAX DIA.: 135MM
Pressure Ability: 0.2-0.8 MPa
Highlight:

air helper springs

,

air suspension parts

Air Bags 2B120 With Natural DIA. 120MM MAX DIA.135MM For Modification of Japanese Cars





OEM COMPLETE Number
2B120

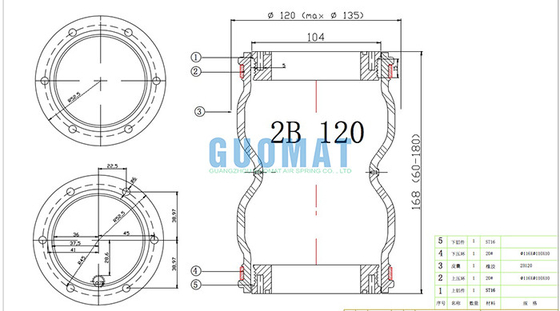

2B120 Specifications and Detail Technical Parameters







❶Nut / Blind Nut

Top Cover Plate Screw (Nut) Tooth : 6 pcs X M8X1.25

Screw Center Distance of Top Cover Plate : 90 mm

Bottom Cover Plate Screw (Nut) Tooth : 6 pcs X M8X1.25

Screw Center Distance of Bottom Cover Plate : 90 mm

❷ Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet : G1/4

❸ Cover Plate

Top Cover Plate Diameter (Width): 116mm

Bottom Cover Plate Diameter (Width): 116 mm

❹Rubber Bellows

Rubber Bellows Natural Diameter : 120mm

Rubber Bellows MAX Diameter : 135 mm

Installation Space Diameter : 155 mm

Rubber Bellows Natural Height : 168 mm

❺ Bumper block / Buffer block

Without Bumper Block

❻ Girdle Hoop / Girdle Ring

With Girdle Hoop :One Pieces of Girdle Hoop





Pictures Show The Information Includes:



Technical data

Vibration isolation - dynamic characteristic values

Pneumatic application - static characteristic values



ISO/TS16949 Industrial Air Bags 2B120 With Natural DIA. 120MM MAX DIA.135MM 0ISO/TS16949 Industrial Air Bags 2B120 With Natural DIA. 120MM MAX DIA.135MM 1ISO/TS16949 Industrial Air Bags 2B120 With Natural DIA. 120MM MAX DIA.135MM 2
