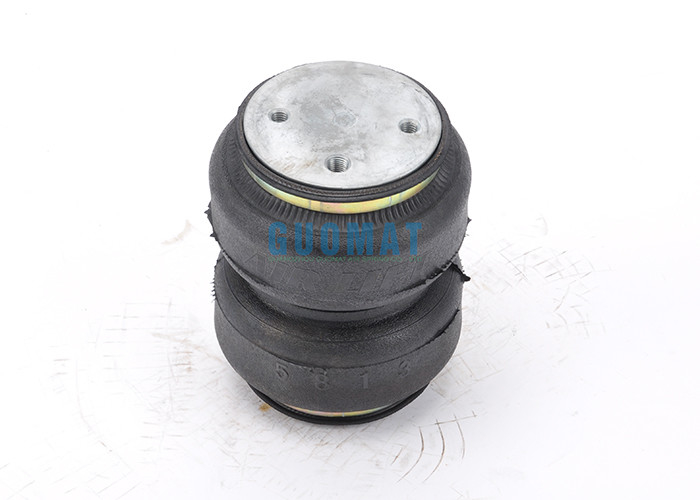

2B105 Industrial Air Spring Bags With Natural DIA. 105 MM MAX DIA.120MM For Modification of Cars

2B105 Industrial Air Spring Bags With Natural DIA. 105 MM MAX DIA.120MM For Modification of Cars

  • 2B105 Industrial Air Spring Bags With Natural DIA. 105 MM MAX DIA.120MM For Modification of Cars
  • 2B105 Industrial Air Spring Bags With Natural DIA. 105 MM MAX DIA.120MM For Modification of Cars
2B105 Industrial Air Spring Bags With Natural DIA. 105 MM MAX DIA.120MM For Modification of Cars
Product Details:
Place of Origin: Guangdong,China
Brand Name: GUOMAT
Certification: ISO/TS16949:2009
Model Number: 2B120
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Packaging Details: strong carton box or as customers need
Delivery Time: 2-8 work days
Payment Terms: T/T, Western Union,Paypal or Others
Supply Ability: 1000pcs/week
Contact Now
Detailed Product Description
Material: Cover Plate , Rubber Bellows GUOMAT: 2B105
Natural DIA.: 105MM MAX DIA.: 120MM
Pressure Ability: 0.2-0.8 MPa
High Light:

air helper springs

,

air suspension parts

Air Spring Bags 2B105 With Natural DIA. 105 MM MAX DIA.120MM For Modification of Cars





OEM COMPLETE Number
2B105

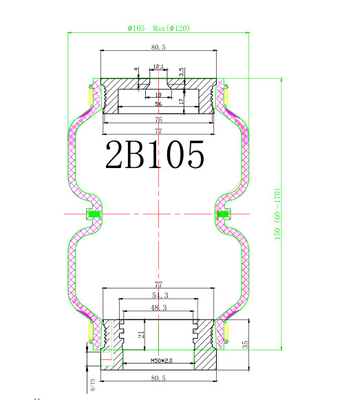

2B105 Specifications and Detail Technical Parameters



Nut / Blind Nut

Top Cover Plate Screw (Nut) Tooth : 6 pcs X M8X1.25

Screw Center Distance of Top Cover Plate : 95 mm

Bottom Cover Plate Screw (Nut) Tooth : 6 pcs X M8X1.25

Screw Center Distance of Bottom Cover Plate : 95mm

Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet : G1/4

Cover Plate

Top Cover Plate Diameter (Width): 101mm

Bottom Cover Plate Diameter (Width): 101 mm

Rubber Bellows

Rubber Bellows Natural Diameter : 105mm

Rubber Bellows MAX Diameter : 120mm

Installation Space Diameter : 140 mm

Rubber Bellows Natural Height : 150mm

Bumper block / Buffer block

Without Bumper Block

Girdle Hoop / Girdle Ring

With Girdle Hoop :One Pieces of Girdle Hoop





Note:
1. The minimum height of the assembly is 60mm, and the highest natural pull-in height is 170mm when inflated to 0.7Mpa.
Inflatable test height 110mm, air pressure 0.7Mpa, inflatable outer diameter 115mm (sample)





Pictures Show The Information Includes:



Technical data

Vibration isolation - dynamic characteristic values

Pneumatic application - static characteristic values



2B105 Industrial Air Spring Bags With Natural DIA. 105 MM MAX DIA.120MM For Modification of Cars 0
