Replace Shock Of Japanese Air Springs For Cars 2B130-2 With Natural DIA. 130 MM MAX DIA.145MM

China Replace Shock Of Japanese Air Springs For Cars 2B130-2 With Natural DIA. 130 MM MAX DIA.145MM supplier

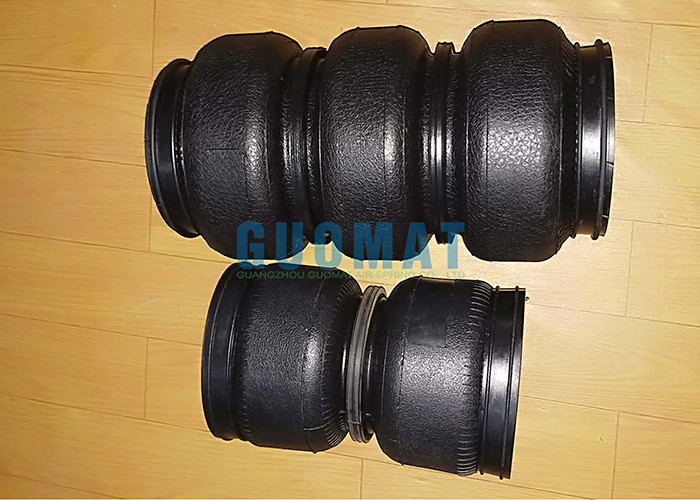

Large Image :  Replace Shock Of Japanese Air Springs For Cars 2B130-2 With Natural DIA. 130 MM MAX DIA.145MM

Product Details:

Place of Origin: Guangdong,China
Brand Name: GUOMAT
Certification: ISO/TS16949:2009
Model Number: 2B120

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Packaging Details: strong carton box or as customers need
Delivery Time: 2-8 work days
Payment Terms: T/T, Western Union,Paypal or Others
Supply Ability: 1000pcs/week
Contact Now
Detailed Product Description
Material: Cover Plate , Rubber Bellows GUOMAT: 2B130-2
Natural DIA.: 130MM MAX DIA.: 135MM
Pressure Ability: 0.2-0.8 MPa

Replace Shock of Japanese Cars Air Spring 2B130-2 With Natural DIA. 130 MM MAX DIA.145MM​





OEM COMPLETE Number
2B130-2





2B130-2 Specifications and Detail Technical Parameters





Nut / Blind Nut

Top Cover Plate Screw (Nut) Tooth : 6 pcs X M8X1.25

Screw Center Distance of Top Cover Plate : 90 mm

Bottom Cover Plate Screw (Nut) Tooth : 6 pcs X M8X1.25

Screw Center Distance of Bottom Cover Plate : 90 mm

Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet : G1/8

Cover Plate

Top Cover Plate Diameter (Width): 104mm

Bottom Cover Plate Diameter (Width): 104 mm

Rubber Bellows

Rubber Bellows Natural Diameter : 130mm

Rubber Bellows MAX Diameter : 145 mm

Installation Space Diameter : 165 mm

Rubber Bellows Natural Height : 160 mm

Bumper block / Buffer block

Without Bumper Block

Girdle Hoop / Girdle Ring

With Girdle Hoop :One Pieces of Girdle Hoop





Pictures Show The Information Includes:



Technical data

Vibration isolation - dynamic characteristic values

Pneumatic application - static characteristic values



Replace Shock Of Japanese Air Springs For Cars 2B130-2 With Natural DIA. 130 MM MAX DIA.145MM
