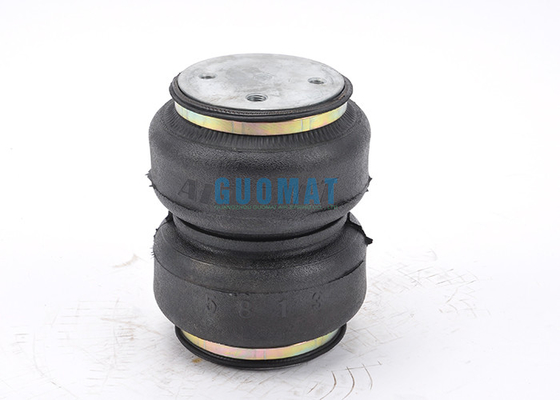

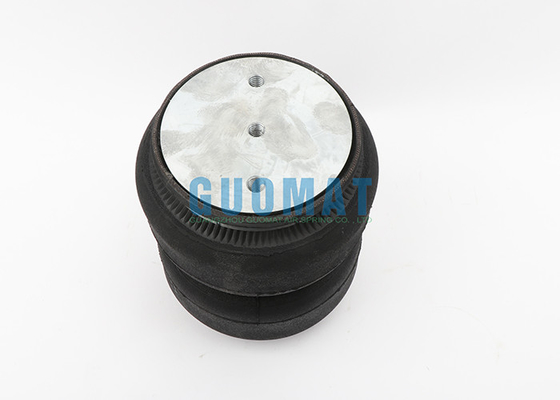

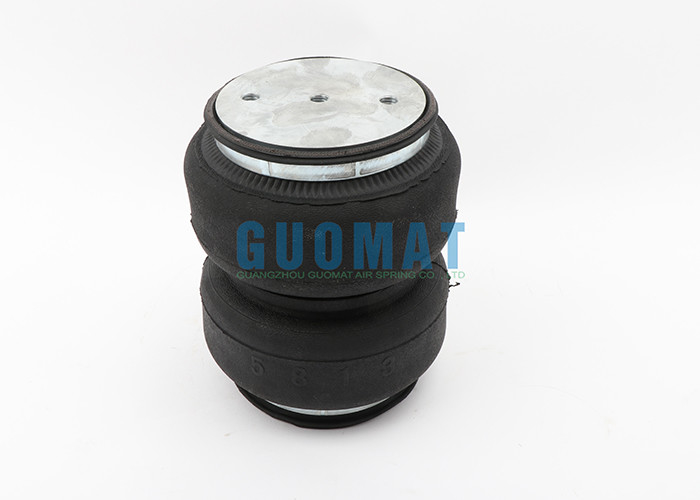

Rubber Bellows Industrial Air Spring 2B 5813-8 Screw 3/8-16UNC

China Rubber Bellows Industrial Air Spring 2B 5813-8 Screw 3/8-16UNC supplier
Rubber Bellows Industrial Air Spring 2B 5813-8 Screw 3/8-16UNC supplier Rubber Bellows Industrial Air Spring 2B 5813-8 Screw 3/8-16UNC supplier

Large Image :  Rubber Bellows Industrial Air Spring 2B 5813-8 Screw 3/8-16UNC

Product Details:

Place of Origin: China
Brand Name: GUOMAT
Certification: ISO/TS16949:2009
Model Number: 2B5813-8

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Packaging Details: strong carton box or as customers need
Delivery Time: 2-8 work days
Payment Terms: T/T, Western Union,Paypal or Others
Supply Ability: 1000pcs/week
Contact Now
Detailed Product Description
Material: Steel Cover Plate , Rubber Bellows GUOMAT: 2B5813-8
Air Lift: 5813 Air Inlet: PT1/4
Screw: 3/8-16UNC Cover Plate DIA: 104mm

Rubber Bellows Air Spring 2B 5813-8 Air Ride Alternative Steel Spring Shock Absorber

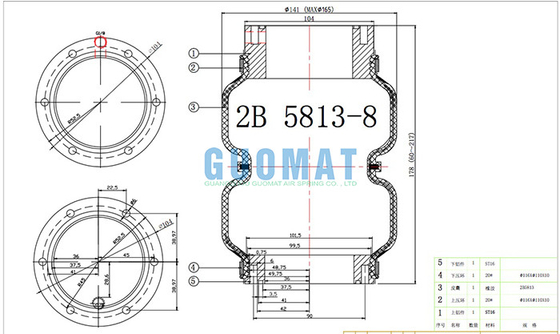

Product parameters:



Nut / Blind Nut

Top Cover Plate Screw (Nut) Tooth : 6 pcs X 3/8-16UNC

Screw Center Distance of Top Cover Plate : 90 mm

Bottom Cover Plate Screw (Nut) Tooth :6 pcs X 3/8-16UNC

Screw Center Distance of Bottom Cover Plate : 90 mm

Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet : G1/8



Cover Plate

Top Cover Plate Diameter (Width): 104 mm

Bottom Cover Plate Diameter (Width): 104 mm



Rubber Bellows

Rubber Bellows Natural Diameter : 141 mm

Rubber Bellows MAX Diameter : 165 mm

Design Height: 178 MM



Bumper block / Buffer block

Without Bumper Block

Girdle Hoop / Girdle Ring

With Girdle Hoop :One Pieces of Girdle Hoop





Product Description:



This is the GUOMAT air spring from AIR SPRING. The bellows air spring has one, two or three windings in the flexible member. Such double-turn airbags are commonly used in lift springs or axles for trucks and trailers, as pneumatic springs, and as actuators or insulators in industrial and commercial applications. The specifications of the 2B5813 will vary, but the double-curved GUOMAT bag has a crimp design and a sleeve bellows. They will provide similar features and functions, but the sleeve type permanently connects the end retainers by clamping the flexible member between the end retainer and the outer crimp ring.

glasses



Rubber Bellows Industrial Air Spring 2B 5813-8 Screw 3/8-16UNCRubber Bellows Industrial Air Spring 2B 5813-8 Screw 3/8-16UNC
