W013586957 Firestone Double Convoluted Air Bags Number 255-1.5 Air Inlet 1/4 NPT

China W013586957 Firestone Double Convoluted Air Bags Number 255-1.5  Air Inlet 1/4 NPT supplier
W013586957 Firestone Double Convoluted Air Bags Number 255-1.5  Air Inlet 1/4 NPT supplier W013586957 Firestone Double Convoluted Air Bags Number 255-1.5  Air Inlet 1/4 NPT supplier W013586957 Firestone Double Convoluted Air Bags Number 255-1.5  Air Inlet 1/4 NPT supplier

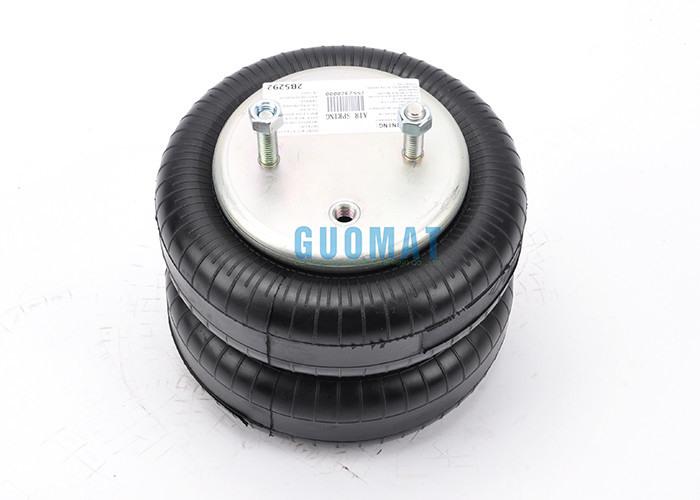

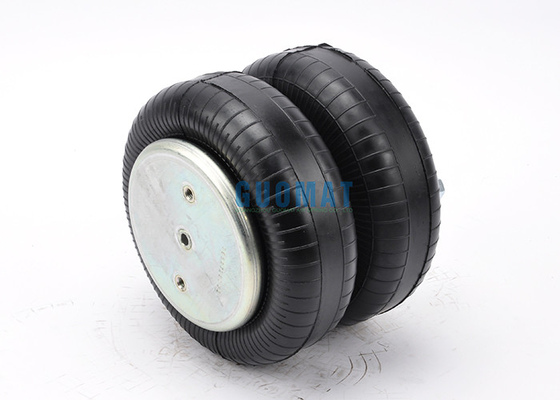

Large Image :  W013586957 Firestone Double Convoluted Air Bags Number 255-1.5 Air Inlet 1/4 NPT

Product Details:

Place of Origin: Guangdong,China
Brand Name: GUOMAT
Certification: ISO/TS16949:2009
Model Number: 2B6957

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Packaging Details: strong carton box or as customers need
Delivery Time: 2-8 work days
Payment Terms: T/T, Western Union,Paypal or Others
Supply Ability: 1000pcs/week
Contact Now
Detailed Product Description
Material: Steel Cover Plate , Rubber Bellows GUOMAT NO.: 2B6957
Firestone Style:: 25(255-1.5) Firestone: W01-358-6957
Air Inlet: 1/4 NPT Pressure Ability: 0.2-0.8 MPa
Nut: 3/8-16 Blind Nuts Net Weight: 1.7 Kg

W013586957 Firestone Double Air Spring Firestone Style Number 255-1.5​





Description Assembly Order No.

Nut,1/4 NPT:WO1-358-6957 /W01-358-6957 /W013586957

Blind nuts, 1/4 NPT:WO1-358-6955 /W01-358-6955 /W013586955

Blind nuts, 3/4 NPT:WO1-358-6956 / W01-358-6956 / W013586956

Rubber bellows only:WO1-358-0048 / W01-358-0048 / W013580048

Ply Socket head aluminum bead:WO1-358-6833
Assembly weight  3.9 lbs.

Force to collapse to minimum height (@ 0 PSIG) 50 lbs.

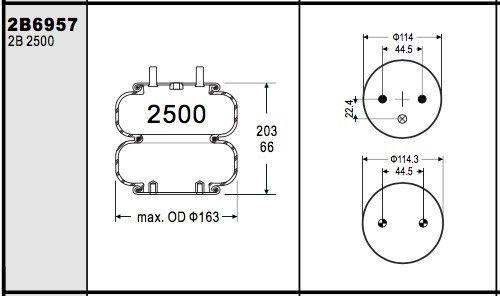

Specifications and Detail Technical Parameters





Specifications

Weight 17 kg

1/4NPT : max. 25 Nm



Nut / Blind Nut

Top Cover Plate Screw (Nut) Tooth : 2 pcs X1/2-13

Screw Center Distance of Top Cover Plate : 44 mm

Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16

Screw Center Distance of Bottom Cover Plate : 44 mm

Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet : 1/4NPT

Cover Plate

Top Cover Plate Diameter (Width): 114 mm

Bottom Cover Plate Diameter (Width): 114 mm

Rubber Bellows

Rubber Bellows Natural Diameter : 146 mm

Rubber Bellows MAX Diameter : 165 mm

Installation Space Diameter : 180 mm

Rubber Bellows Natural Height : 175 mm

Bumper block / Buffer block

Without Bumper Block

Girdle Hoop / Girdle Ring

With Girdle Hoop :One Pieces of Girdle Hoop



Dynamic Characteristics at 6.0 in. Design Height

(Required for Airmount isolator design only)

Volume @ 100 PSIG = 100 in3 Natural Frequency
Gage Pressure (PSIG) Load (lbs.) Spring Rate (lbs./ in.) CPM HZ
40 566 309 139 2.32
60 871 432 132 2.21
80 1,194 565 129 2.16
100 1,524 681 126 2.10





W013586957 Firestone Double Convoluted Air Bags Number 255-1.5  Air Inlet 1/4 NPTW013586957 Firestone Double Convoluted Air Bags Number 255-1.5  Air Inlet 1/4 NPT
