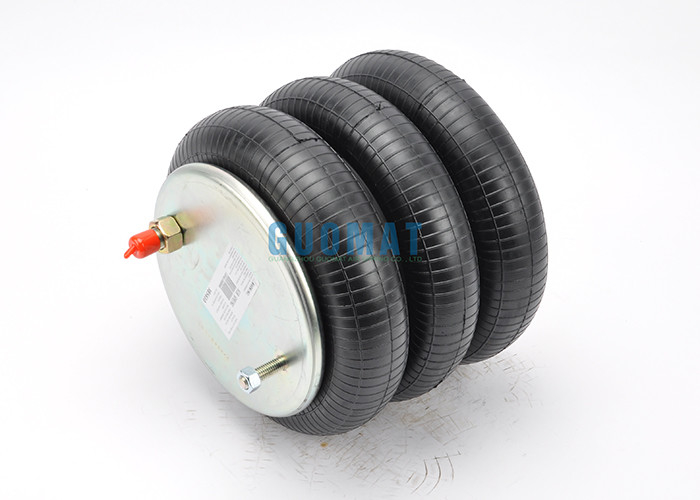

W01-358-7998 Industrial Air Spring Firestone Contitech FT330-29 548 For Henrickson 00156

China W01-358-7998 Industrial Air Spring Firestone Contitech FT330-29 548 For Henrickson 00156 supplier
W01-358-7998 Industrial Air Spring Firestone Contitech FT330-29 548 For Henrickson 00156 supplier W01-358-7998 Industrial Air Spring Firestone Contitech FT330-29 548 For Henrickson 00156 supplier

Large Image :  W01-358-7998 Industrial Air Spring Firestone Contitech FT330-29 548 For Henrickson 00156

Product Details:

Place of Origin: China
Brand Name: GUOMAT
Certification: ISO/TS16949:2009
Model Number: 3B7998

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Packaging Details: strong carton box or as customers need
Delivery Time: 2-8 work days
Payment Terms: T/T, Western Union,Paypal or Others
Supply Ability: 1000pcs/week
Contact Now
Detailed Product Description
Material: Steel And Rubber Bellow Firestone: W01-358-7998
Warranty: 12 Months Weight: 7.0 Kg
Other Name: Henrickson Air Bags Pressure Ability: 0.2-0.8 M Pa
Contitech: FT330-29 548 Henrickson: 00156

W01-358-7998 Industrial Air Spring Firestone Contitech FT330-29 548 For Henrickson 00156

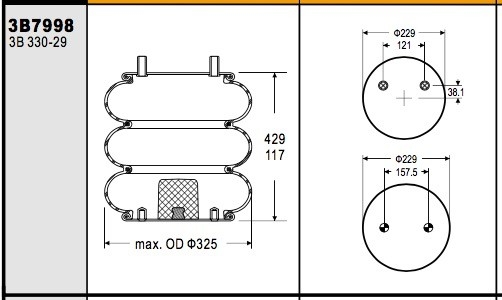

3B7998 Technical Parameters





Large Drying Machines Air Spring Technical Parameters
Top Cover Plate Diameter 229 mm
Bottom Cover Plate Diameter 229 mm
Screw Center Distance 157.5mm
Distance Gas Hole Between Nut Together with Gas Hole
Gas Hole 1/4NPTF M18X1.5
Screw (Nut) Tooth 2pcsXM12X1.75
Rubber Bellows Diameter 330 max. OD
The Stroke 117-460mm
The Height Natural 110mm





Compressed height: 115.5MM / 4.55 inches
Number of top plates: 3173
Top plate width: 229MM / 9.00 inches
Piston number: 3183
Piston width: 229MM / 9.00 inches
Firestone Corrugated Tube Number: 38
Hendrickson Auxiliary Number: 001560





three convolution bellows need to take care of these suggestions



Special happened to air three convolution bellows Spring conditions at a certain load and deflection. In order to Remained stable throughout three convolution bellows air springs Must fully support the maximum outer diameter Air springs. In addition, retainers must end Hidden approximately 0.75 " to the support surface, Or be accompanied by a special rubber ring mounted on the outside .The diameter of the retainer. Contact Goodyear engineered Product design of air spring on behalf of assistance. Special consideration to sleeve-shaped bellows When handling the air spring or below .Listed in the table height, care must be taken to avoid Flexible members contact with obstacles. Air spring Should be installed on a flat and Lower retainers, or a base . And the base plate are specified in the table.







W01-358-7998 Industrial Air Spring Firestone Contitech FT330-29 548 For Henrickson 00156W01-358-7998 Industrial Air Spring Firestone Contitech FT330-29 548 For Henrickson 00156
