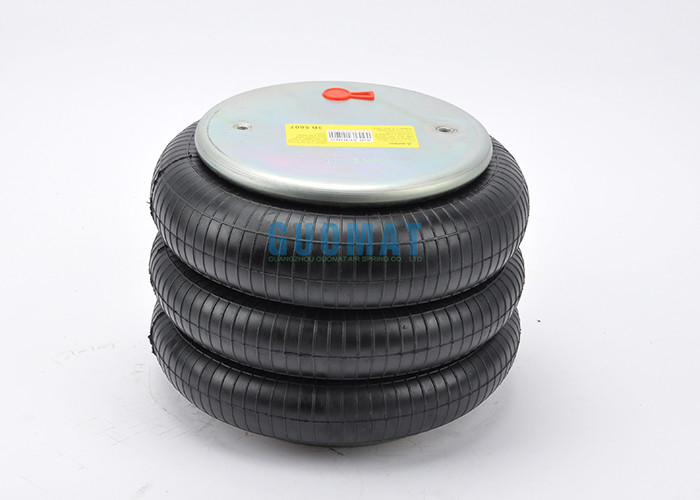

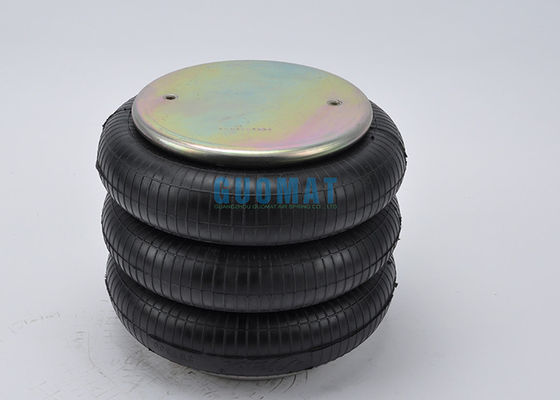

W01-358-8014 Air Ride Springs By Firestone / Triple Convoluted Air Bag For Ridewell 1003588014C

China W01-358-8014 Air Ride Springs By Firestone / Triple Convoluted Air Bag For Ridewell 1003588014C supplier
W01-358-8014 Air Ride Springs By Firestone / Triple Convoluted Air Bag For Ridewell 1003588014C supplier W01-358-8014 Air Ride Springs By Firestone / Triple Convoluted Air Bag For Ridewell 1003588014C supplier W01-358-8014 Air Ride Springs By Firestone / Triple Convoluted Air Bag For Ridewell 1003588014C supplier

Large Image :  W01-358-8014 Air Ride Springs By Firestone / Triple Convoluted Air Bag For Ridewell 1003588014C

Product Details:

Place of Origin: Guangdong,China
Brand Name: GUOMAT
Certification: ISO/TS16949:2009
Model Number: 3B8014

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Packaging Details: strong carton box or as customers need
Delivery Time: 2-8 work days
Payment Terms: T/T, Western Union,Paypal or Others
Supply Ability: 1000pcs/week
Contact Now
Detailed Product Description
Material: Steel Cover Plate , Rubber Bellows Firestone: W01-358-8014
Gas Hole: 1" NPTF Two Pillars Stick Nuts: 3/8 UNC
Screw Center Distance: 157.5 Mm Cover Plate Diameter: 231mm
Pressure Ability: 0.2-0.8 M Pa Natural Height: 297 Mm

W01-358-8014 Firestone Air Spring Triple Convoluted Air Bag For Ridewell 1003588014C

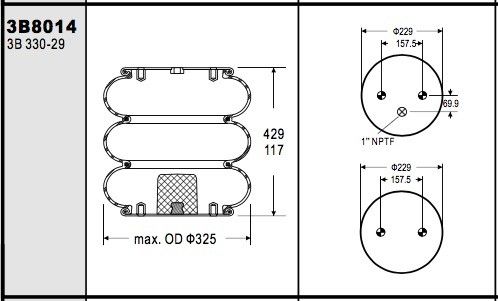

3B8014 Technical Parameters



Nut / Blind Nut



Top Cover Plate Screw (Nut) Tooth : 2pcsX3/8-16UNC

Top Cover Plate Screw (Nut) Tooth : 2pcsX3/8-16UNC

Screw Center Distance of Top Cover Plate : 157.5mm

Bottom Cover Plate Screw (Nut) Tooth : 2pcsX3/8-16UNC

Screw Center Distance of Bottom Cover Plate : 157.5mm



Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet : 1" N P.T.F. / 1" NPTF



Cover Plate

Top Cover Plate Diameter: 229mm

Bottom Cover Plate Diameter: 229 mm



Rubber Bellows

Rubber Bellows MAX Diameter: 330 mm

Rubber Bellows Natural Diameter :300 mm

The Working Stroke : MAX 460 mm to MIN 130 mm

Maximum Height : 460 mm

Minimum Height :130 mm

Compression Height : 330 mm



Bumper block / Buffer block

With Bumper Block



Girdle Hoop / Girdle Ring

With Girdle Hoop :Two Pieces of Girdle Hoop







3B8014 Cross others OEM





Airspring Supplier: Triangle
Reference: 6334

Suspension Supplier: Ridewell
Competitor/Supplier Number: 1003588014C

Firestone Trimmed: w013588014



BELLOW Numbers COMPLETE NO. COMPLETE Numbers
AIRKRAFT 116008 AIRKRAFT 115033 AIRKRAFT 115027
FIRESTONE FLEX 38R/38D CONTITECH FT 330-29 773 CONTITECH FT 330-29 430
FIRESTONE 095.0047 FIRESTONE W01-358-8014 FT 330-29 498
GOODYEAR FLEX 556 3 3 8334 GOODYEAR 3B12-305 FT 330-29 503
578 93 3 100 AIRKRAFT 115035 FT 330-29 702
  CONTITECH FT 330-29 432 FIRESTONE W01 358 8006
  FIRESTONE W01-358-8010 W01 358 8030
  GOODYEAR 3B12-301 GOODYEAR 3B12-304



W01-358-8014 Air Ride Springs By Firestone / Triple Convoluted Air Bag For Ridewell 1003588014CW01-358-8014 Air Ride Springs By Firestone / Triple Convoluted Air Bag For Ridewell 1003588014C
