Goodyear 3B12-303 Industrial Air Spring W013588018 Triangle 4434 GUOMAT 3B8018

China Goodyear 3B12-303 Industrial Air Spring W013588018 Triangle 4434 GUOMAT 3B8018 supplier
Goodyear 3B12-303 Industrial Air Spring W013588018 Triangle 4434 GUOMAT 3B8018 supplier Goodyear 3B12-303 Industrial Air Spring W013588018 Triangle 4434 GUOMAT 3B8018 supplier Goodyear 3B12-303 Industrial Air Spring W013588018 Triangle 4434 GUOMAT 3B8018 supplier

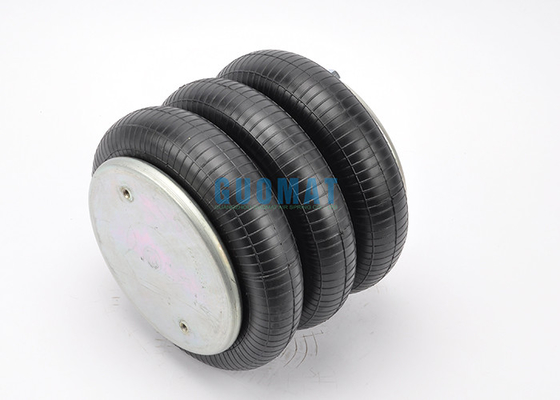

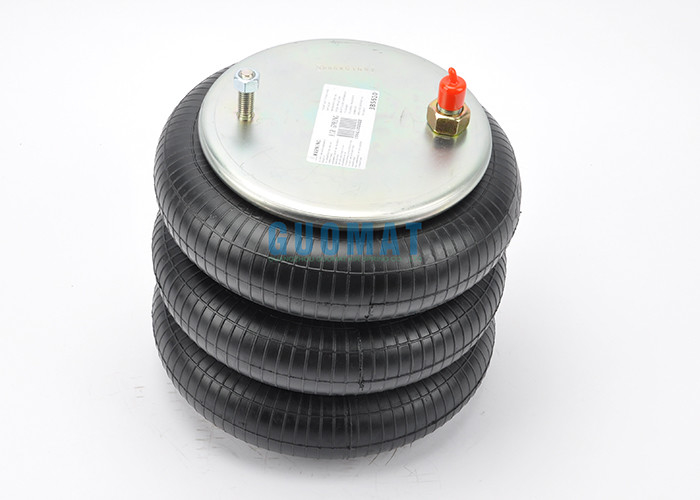

Large Image :  Goodyear 3B12-303 Industrial Air Spring W013588018 Triangle 4434 GUOMAT 3B8018

Product Details:

Place of Origin: China
Brand Name: GUOMAT
Certification: ISO/TS16949:2009
Model Number: W01-358-7995

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Packaging Details: strong carton box or as customers need
Delivery Time: 2-8 work days
Payment Terms: T/T, Western Union,Paypal or Others
Supply Ability: 1000pcs/week
Contact Now
Detailed Product Description
Material: Steel And Rubber GUOMAT: 3B8018
Warranty: 12 Months Net Weight: 6.52kg
Other Name: Air Suspension Bags Pressure Ability: 0.2-0.8 M Pa
Gross Weight: 7.13 KG Package Size: 33*33*22CM
Air Inlet: 1/4 NPT

Goodyear 3B12-303 Firestone W013588018 Triangle 4434 GUOMAT 3B8018 Industrial Air Spring







Cross OEM Original Equipment Manufacturer:



GUOMAT Part NO.:3B8018

GUOMAT Bellows NO.:3B300

Firestone Part Number:W01-358-8018

Firestone Part Number:W013588018

Firestone Part Number:W01 358 8018

Contitech: FT 330-29 434
Ridewell: 1003588016C
Compressed height: 4.55 inches
Number of top plates: 3271
Top plate width: 9.00 inches
Piston number: 3183
Piston width: 9.00 inches
Firestone Corrugated Tube Number: 38D
Goodyear part number: 3B12-303
Goodyear bellows number: 578-93-3-100
Triangle part number: 4434
Triangle bellows number: 6334
Reyco number: 93AR
Suspensions Inc. No. 202394





FT 330-29 434 Triple Convoluted Air Spring Specifications



  1. Extended:460 MM
  2. Closed :117 MM
  3. Rubber Bellows Diameter :330 max. OD
  4. Air Inlet:1/4NPT
  5. Mounting Stud Combination:3/4-16UNF
  6. Upper Stud :3/8-16UNC
  7. Bottom Stud :2X3/8-16UNC
  8. The center distance of two bottom screws :157.5MM
  9. Iron plate round Diameter :231MM
  10. The center distance of two cover screws :140MM



Air Spring NO. Load Design H. Min. H. Safe Elongation Full Stroke
380320J-3     115 370 255
330312J-3   245 115 360 245
255322J-3     118 400 282
360312J-3 4491 245 115 360 245





Goodyear 3B12-303 Industrial Air Spring W013588018 Triangle 4434 GUOMAT 3B8018
