GUOMAT Air Spring Shocks FT330-29 525 Hendrickson Auxiliary 003316 / S-14487 W01-358-8033

China GUOMAT Air Spring Shocks FT330-29 525 Hendrickson Auxiliary 003316 / S-14487 W01-358-8033 supplier
GUOMAT Air Spring Shocks FT330-29 525 Hendrickson Auxiliary 003316 / S-14487 W01-358-8033 supplier GUOMAT Air Spring Shocks FT330-29 525 Hendrickson Auxiliary 003316 / S-14487 W01-358-8033 supplier GUOMAT Air Spring Shocks FT330-29 525 Hendrickson Auxiliary 003316 / S-14487 W01-358-8033 supplier

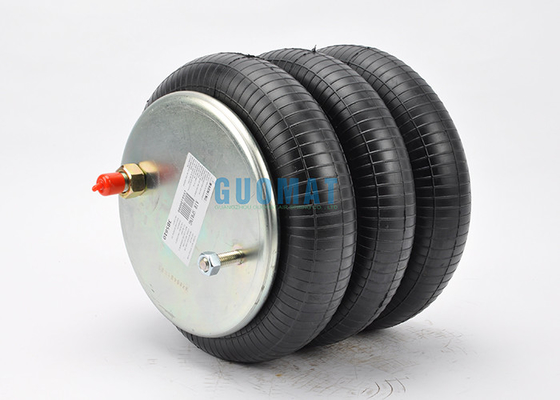

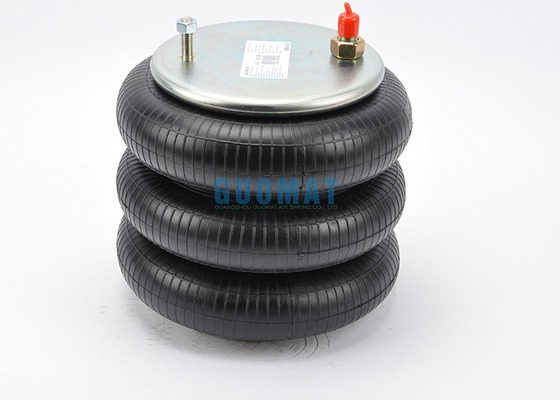

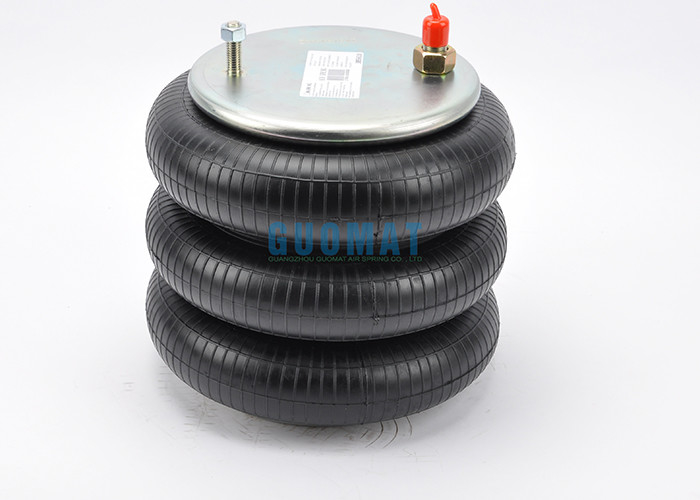

Large Image :  GUOMAT Air Spring Shocks FT330-29 525 Hendrickson Auxiliary 003316 / S-14487 W01-358-8033

Product Details:

Place of Origin: China
Brand Name: GUOMAT
Certification: ISO/TS16949:2009
Model Number: 3B8033

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Packaging Details: strong carton box or as customers need
Delivery Time: 2-8 work days
Payment Terms: T/T, Western Union,Paypal or Others
Supply Ability: 1000pcs/week
Contact Now
Detailed Product Description
Material: Steel And Rubber Firestone: W01-358-8033
Warranty: 12 Months Weight: 7.0 Kg
Other Name: Air Suspension Spring Bags Pressure Ability: 0.2-0.8 M Pa
Histeer: 200117 Goodyear: 3B12-312
Package Size: 33*33*22 Cm

W01-358-8033 Firestone Air Spring Shocks FT330-29 525 Hendrickson Auxiliary 003316 / S-14487





OEM Original Equipment Manufacturer:



GUOMAT:3B8033

Firestone:W01-358-8033 /W01 358 8033 /W013588033

Contitech:FT330-29 525 / FT33029 525/ FT330 29 525

Compressed height: 4.55 inches / 116 mm
Number of top plates: 3271
Top plate width: 9.00 inches/ 229 mm
Number of pistons: 3292
Piston width: 9.00 inches / 229 mm
Firestone Corrugated Tube Number: 38D
Goodyear part number: 3B12-312 / 3B12 312 / 3B12312
Goodyear bellows number: 578-93-3-100 / 578 93 3 100/ 578933100
Triangle part number: 4525
Triangle bellows number: 6334
Hendrickson Auxiliary Number: 003316 / S-14487

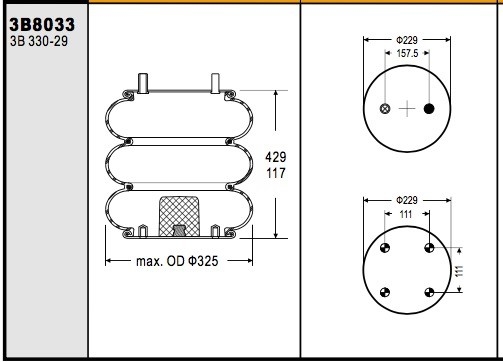

GUOMAT NO. 3B8033 Technical parameters



Nut / Blind Nut



Top Cover Plate Screw (Nut) Tooth : 1pcsX1/2-13UNC

Top Cover Plate Screw (Nut) Tooth : 1pcsX3/4-16UNC

Screw Center Distance of Top Cover Plate : 157 mm

Bottom Cover Plate Screw (Nut) Tooth : 4pcsX3/8-16UNC

Screw Center Distance of Bottom Cover Plate : 111mm



Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet : 1/4 N P.T.F. / 1/4NPTF



Cover Plate

Top Cover Plate Diameter: 229 mm

Bottom Cover Plate Diameter: 229 mm



Rubber Bellows

Rubber Bellows MAX Diameter: 330 mm

Rubber Bellows Natural Diameter :300 mm

The Working Stroke : MAX 460 mm to MIN 130 mm

Maximum Height : 460 mm

Minimum Height :130 mm

Compression Height : 330 mm



Bumper block / Buffer block

With Bumper Block



Girdle Hoop / Girdle Ring

With Girdle Hoop :Two Pieces of Girdle Hoop



GUOMAT Air Spring Shocks FT330-29 525 Hendrickson Auxiliary 003316 / S-14487 W01-358-8033GUOMAT Air Spring Shocks FT330-29 525 Hendrickson Auxiliary 003316 / S-14487 W01-358-8033
