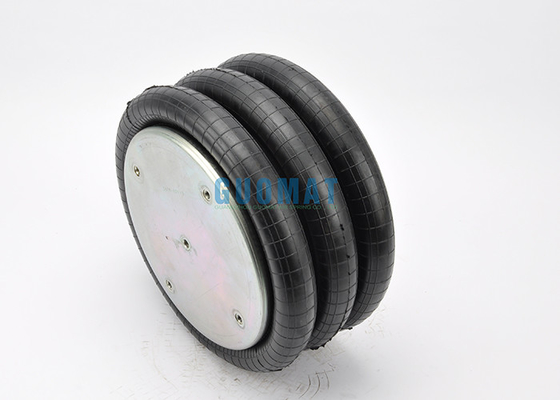

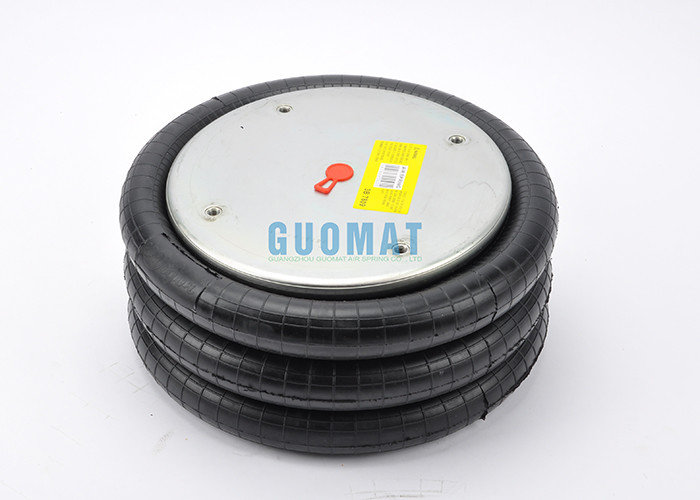

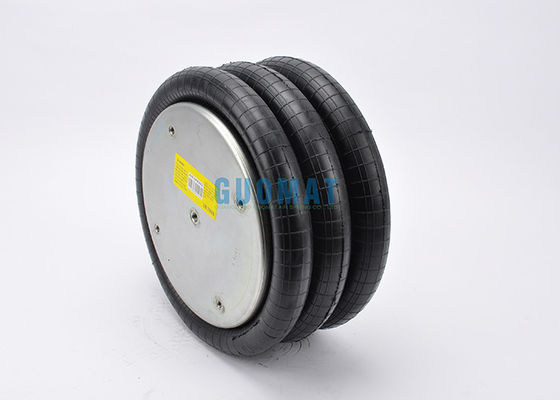

Contitech FT 530-35 436 Industrial Air Spring W013587838 Triple Convoluted Air Bag

Contitech FT 530-35 436 Industrial Air Spring W013587838 Triple Convoluted Air Bag

  • Contitech FT 530-35 436 Industrial Air Spring W013587838 Triple Convoluted Air Bag
  • Contitech FT 530-35 436 Industrial Air Spring W013587838 Triple Convoluted Air Bag
  • Contitech FT 530-35 436 Industrial Air Spring W013587838 Triple Convoluted Air Bag
  • Contitech FT 530-35 436 Industrial Air Spring W013587838 Triple Convoluted Air Bag
Contitech FT 530-35 436 Industrial Air Spring W013587838 Triple Convoluted Air Bag
Product Details:
Place of Origin: Guangdong,China
Brand Name: GUOMAT
Certification: ISO/TS16949:2009
Model Number: 3B7838
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Packaging Details: strong carton box or as customers need
Delivery Time: 2-8 work days
Payment Terms: T/T, Western Union,Paypal or Others
Supply Ability: 1000pcs/week
Contact Now
Detailed Product Description
Material: Steel Cover Plate , Rubber Bellows Contitech: FT 530-35 436
Firestone: W01-358-7838 / W01 358 7838/W013587838 Gas Hole / Air Inlet: 1/4NPT
Cover Plate Diameter (Width): 289 Mm Compressed Height: 114 MM
Goodyear: 3B14-356
High Light:

convoluted air spring

,

air helper springs

Contitech FT 530-35 436 Industrial Air Spring W013587838 Triple Convoluted Air Bag​



Cross Manufacturer Cross OEM
Firestone : W01-358-7838 / W01 358 7838/W013587838
Firestone Bellows Number: 333C
Contitech : FT 530-35 436 / FT 530 35 436
Goodyear 3B14-356
Goodyear Number: 3B14-453
Goodyear Bellows Number: 578933350
Firestone Top Plate Number: 3134
Firestone Piston Number: 3130



Air Spring Supplier: ContiTech
Competitor / Supplier Number: FT53035436

Air Spring Supplier: Goodyear
Reference: 578933350
Competitor / Supplier Number: 3B14356

Air Spring Supplier: Triangle
Reference number: 6335
Competitor / Supplier Number: 4436

Suspension Supplier: EZ Ride
Firestone trim: w013587838
Goodyear Part # 3B14-356 Goodyear-
3B14-453 Goodyear


Blind nuts, 1/4 NPT WO1-358-7845 /W01-358-7845
Blind nuts, 1/4 NPT, bumper WO1-358-7838 / W01-358-7838
Blind nuts, 3/4 NPT WO1-358-7842 / W01-358-7842
Blind nuts, 3/4 NPT, bumper WO1-358-7849 / W01-358-7849
Countersunk steel bead ring 13/4 bolts, nuts, washers WO1-358-7830 /W01-358-7830
Rubber bellows only WO1-358-7019 / W01-358-7019

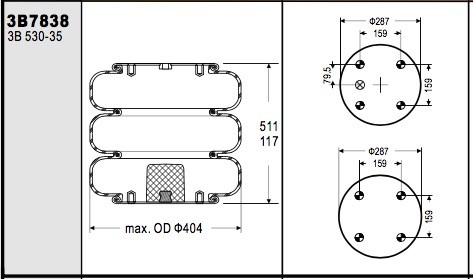

Nut / Blind Nut
Top Cover Plate Screw (Nut) Tooth : 4 pcs X 3/8-16UNC
Screw Center Distance of Top Cover Plate : 159 mm
Bottom Cover Plate Screw (Nut) Tooth : 4 pcs X 3/8-16UNC
Screw Center Distance of Bottom Cover Plate : 159 mm
Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : 1/4NPT
Center Distance Between Nut and Air inlet: 79.5 mm
Cover Plate
Top Cover Plate Diameter (Width): 289 mm
Bottom Cover Plate Diameter (Width): 289 mm
Rubber Bellows
Rubber Bellows MAX Diameter : 404mm
Compressed Height: 114 mm
Maximum Height: 511 mm
Working Stroke : 117mm
Bumper block / Buffer block
With Bumper Block
Girdle Hoop / Girdle Ring
With Girdle Hoop :2 Pieces of Girdle Hoop

Contitech FT 530-35 436 Industrial Air Spring W013587838 Triple Convoluted Air Bag 0
