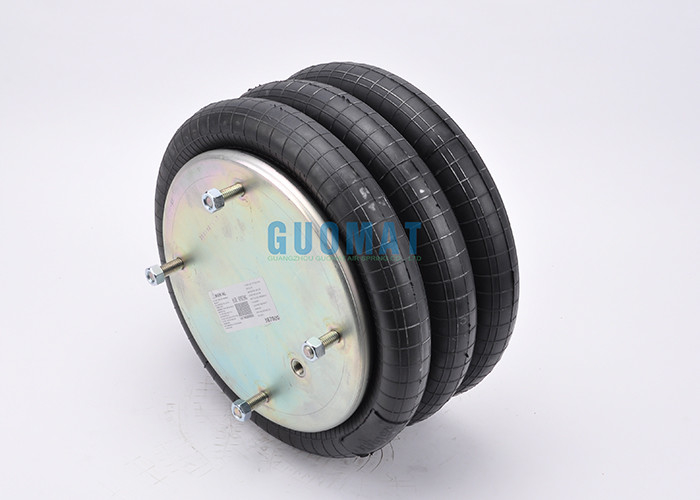

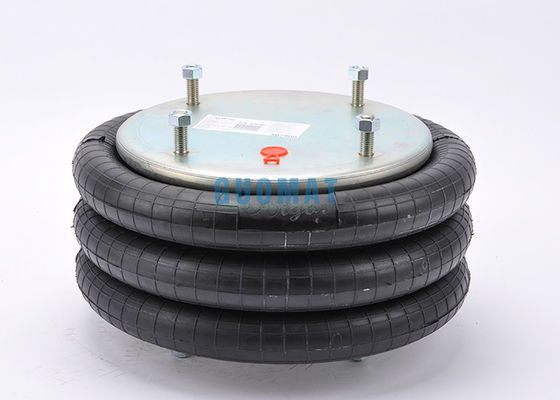

W013587839 Industrial Air Spring Triple Convoluted Air Bag For Euclid / Meritor E-FS7814

Product Details:

Place of Origin:	Guangdong,China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	3B7839

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Packaging Details:	strong carton box or as customers need
Delivery Time:	2-8 work days
Payment Terms:	T/T, Western Union,Paypal or Others
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Material:	Steel Cover Plate , Rubber Bellows	Contitech:	FT 530-35 437
Firestone:	W013587839	Gas Hole / Air Inlet:	1/4NPT
Cover Plate Diameter (Width):	289 Mm	Compressed Height:	114 MM
Goodyear:	3B14-359
Highlight:	convoluted air spring , air helper springs

Firestone Air Spring W013587839 Triple Convoluted Air Bag For Euclid/Meritor: E-FS7814

Cross Manufacturer	Cross OEM
Firestone :	W01-358-7839/ W01 358 7839/W013587839
Firestone Bellows Number:	333C
Contitech :	FT 530-35 437 / FT 530 35 437
Goodyear	3B14-444
Goodyear Number:	3B14-459
Goodyear Bellows Number:	578933350

Granning: 1014
Granning: 1476
Triangle Spring: 4325
Triangle Spring: 4437
Firestone: 7814
Firestone: 7816
Firestone: 7818
Firestone: 7839
Firestone: 7852
Conti Tech: 64503
Conti Tech: 64577
E-Z Ride: 8030180
Neway: 57007818
Neway: 57007839
Ridewell: 1003587818C
Ridewell: 1003587839C
Batco: 10-97818
Batco: 10-97839
Goodyear Airspg: 3B14-444
Navistar/IHC: 554803C1
UCF/Impex: AB-3B14-359
T.W. Distribution: AB7814
T.W. Distribution: AB7816
T.W. Distribution: AB7818
T.W. Distribution: AB7839
Watson & Chalin: AS0025
Watson & Chalin: AS0033
Dallas Spring: AS7818
Midland/Haldex: CS314359
Euclid/Meritor: E-FS7814
Euclid/Meritor: E-FS7816
Euclid/Meritor: E-FS7818
Euclid/Meritor: E-FS7839
Euclid/Meritor: E-FS7852
Euclid/Meritor: FS7816
Euclid/Meritor: FS7818
Euclid/Meritor: FS7839
Euclid/Meritor: FS7852
ContiTech: FT530-32325
ContiTech: FT530-35437
Ridewell: S2685C
Leland: SC2032

Blind nuts, 1/4 NPT	WO1-358-7845 /W01-358-7845
Blind nuts, 1/4 NPT, bumper	WO1-358-7838 / W01-358-7838
Blind nuts, 3/4 NPT	WO1-358-7842 / W01-358-7842
Blind nuts, 3/4 NPT, bumper	WO1-358-7849 / W01-358-7849
Countersunk steel bead ring 13/4 bolts, nuts, washers	WO1-358-7830 /W01-358-7830
Rubber bellows only	WO1-358-7019 / W01-358-7019

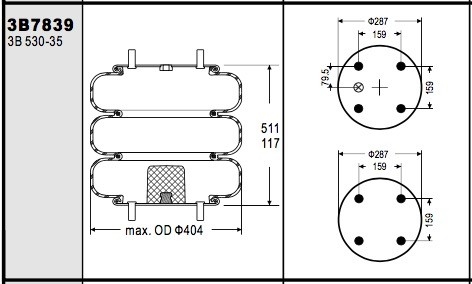

❶Bolts

Top Cover Plate Screw (Nut) Tooth : 4 pcs X 1/2-16UNC

Screw Center Distance of Top Cover Plate : 159 mm

Bottom Cover Plate Screw (Nut) Tooth : 4 pcs X 1/2-16UNC

Screw Center Distance of Bottom Cover Plate : 159 mm

❷ Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet : 1/4NPT

Center Distance Between Nut and Air inlet: 79.5 mm

❸ Cover Plate

Top Cover Plate Diameter (Width): 289 mm

Bottom Cover Plate Diameter (Width): 289 mm

❹Rubber Bellows

Rubber Bellows MAX Diameter : 404mm

Compressed Height: 114 mm

Maximum Height: 511 mm

Working Stroke : 117mm

❺ Bumper block / Buffer block

With Bumper Block

❻ Girdle Hoop / Girdle Ring

With Girdle Hoop :2 Pieces of Girdle Hoop

W013587839 Industrial Air Spring Triple Convoluted Air Bag For Euclid / Meritor E-FS7814 0
