| Place of Origin: | Guangdong,China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 3B7844 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Packaging Details: | strong carton box or as customers need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union,Paypal or Others |
| Supply Ability: | 1000pcs/week |
| Material: | Steel Cover Plate , Rubber Bellows | Contitech: | FT 530-35 438 |
|---|---|---|---|
| Firestone: | W013587844 | Gas Hole / Air Inlet: | 1/4NPT |
| Cover Plate Diameter (Width): | 287 Mm | Compressed Height: | 114 MM |
| High Light: | convoluted air spring,air helper springs |
||

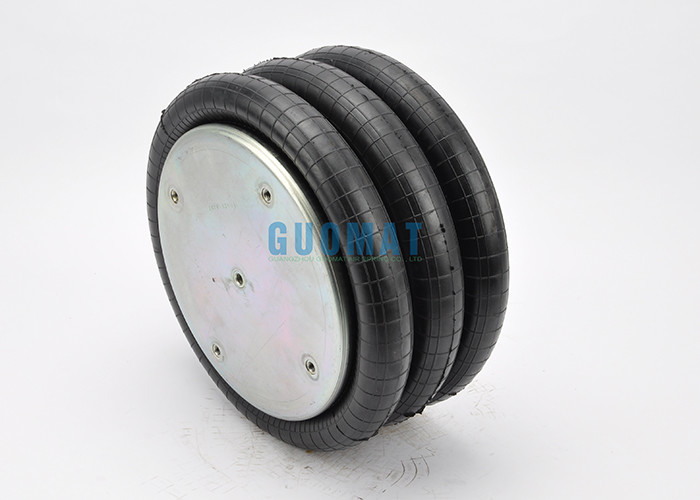

Contitech FT 530-35 438 Auto Parts Industrial Air Bags Firestone W01-358-7844
| Cross Manufacturer | Cross OEM |
| Firestone : | W01-358-7844/ W01 358 7844/W013587844 |
| Firestone Bellows Number: | 333 |
| Contitech : | FT 530-35 438/ FT 530 35 438 |
| Triangle | 4438 |
| Goodyear Bellows Number: | 578933350/578-93-3-350 |
| Triangle Bellows |
6335 |
Compressed Height: 4.20 inches
Top Plate Number:3109
Top Plate Width:11.31 inches
Piston Number:3167
Piston Width:11.31 inches
Firestone Bellows Number:333
Triangle Part Number:4438
Triangle Bellows Number:6335
Ridewell Number:1003587844C
| Blind nuts, 1/4 NPT | WO1-358-7845 /W01-358-7845 |
| Blind nuts, 1/4 NPT, bumper | WO1-358-7838 / W01-358-7838 |
| Blind nuts, 3/4 NPT | WO1-358-7842 / W01-358-7842 |
| Blind nuts, 3/4 NPT, bumper | WO1-358-7849 / W01-358-7849 |
| Countersunk steel bead ring 13/4 bolts, nuts, washers | WO1-358-7830 /W01-358-7830 |
| Rubber bellows only | WO1-358-7019 / W01-358-7019 |

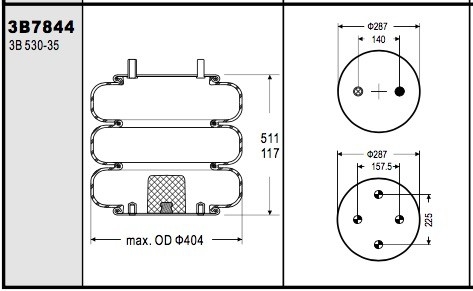

❶Bolts
Top Cover Plate Screw (Nut) Tooth : 1 pcs X 3/8-16UNC /1 pcs X 1/2-13UNC
Screw Center Distance of Top Cover Plate : 140 mm
Bottom Cover Plate Screw (Nut) Tooth : 4 pcs X 3/8-16UNC
Screw Center Distance of Bottom Cover Plate : 159 mm
❷ Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : 1/4NPT
Center Distance Between Nut and Air inlet: 140 mm
❸ Cover Plate
Top Cover Plate Diameter (Width): 287 mm
Bottom Cover Plate Diameter (Width): 287 mm
❹Rubber Bellows
Rubber Bellows MAX Diameter : 404mm
Compressed Height: 114 mm
Maximum Height: 511 mm
Working Stroke : 117mm
❺ Bumper block / Buffer block
With Bumper Block
❻ Girdle Hoop / Girdle Ring
With Girdle Hoop :2 Pieces of Girdle Hoop
