Place of Origin: | Guangdong,China |
Brand Name: | GUOMAT |
Certification: | ISO/TS16949:2009 |
Model Number: | 3B7848 |
Minimum Order Quantity: | 1pc |
---|---|
Packaging Details: | strong carton box or as customers need |
Delivery Time: | 2-8 work days |
Payment Terms: | T/T, Western Union,Paypal or Others |
Supply Ability: | 1000pcs/week |
Material: | Steel Cover Plate , Rubber Bellows | Contitech: | FT 530-35 439 |
---|---|---|---|
Firestone: | W013587848 | Gas Hole / Air Inlet: | 1/4NPT |
Cover Plate Diameter (Width): | 287 Mm | Compressed Height: | 114 MM |
Goodyear: | 3B14-360 | Goodyear Bellows: | 578-93-3-350 |
High Light: | convoluted air spring,air helper springs |
W01-358-7848 Compressed Height 114 MM Industrial Air Spring FT53035439 3B14-360
3B14-360 Cross other OEM:
Cross Manufacturer | Cross OEM |
Firestone : | W01-358-7848/ W01 358 7848/W013587848 |
Firestone Bellows Number: | 333 |
Contitech : | FT 530-35 439 / FT 530 35 439 |
Goodyear | 3B14-360 |
Goodyear Number: | 3B14-360 |
Goodyear Bellows Number: | 578933350 |
3B14-360 data and size:
Compressed Height: 4.00 inches
Top Plate Number:3123 or 3132
Top Plate Width:11.31 inches
Piston Number:3122
Piston Width:11.31 inches
Firestone Bellows Number:333
Goodyear Part Number:3B14-360
Goodyear Bellows Number:578-93-3-350
Triangle Part Number:4439
Triangle Bellows Number:6335
Suspensions Inc. Number201498
Air Spring Supplier: ContiTech
Competitor / Supplier Number: FT53035439
Air Spring Supplier: Goodyear
Reference: 578933350
Competitor / Supplier Number: 3B14360 / 3B14-360
Air Spring Supplier: Triangle
Reference number: 6335
Competitor / Supplier Number: 4439
Suspension supplier: Arvin Meritor
Competitor / Supplier Number: 201498
Suspension Supplier: Hendrickson
Competitor / Supplier Number: S13047
Suspension supplier: Liland
Competitor / Supplier Number: SC2030
Suspension Supplier: Advanced
Suspension Supplier: Advanced
Suspension Supplier: Suspension Inc.
Firestone trim: w013587848 / WO13587848
3B14-360 Specification:
❶Bolts
Top Cover Plate Screw (Nut) Tooth : 4 pcs X 1/2-16UNC
Screw Center Distance of Top Cover Plate : 159 mm
Bottom Cover Plate Screw (Nut) Tooth : 4 pcs X 1/2-16UNC
Screw Center Distance of Bottom Cover Plate : 159 mm
❷ Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : 1/4NPT
Center Distance Between Nut and Air inlet: 79.5 mm
❸ Cover Plate
Top Cover Plate Diameter (Width): 289 mm
Bottom Cover Plate Diameter (Width): 289 mm
❹Rubber Bellows
Rubber Bellows MAX Diameter : 404mm
Compressed Height: 114 mm
Maximum Height: 511 mm
Working Stroke : 117mm
❺ Bumper block / Buffer block
Without Bumper Block
❻ Girdle Hoop / Girdle Ring
With Girdle Hoop :2 Pieces of Girdle Hoop

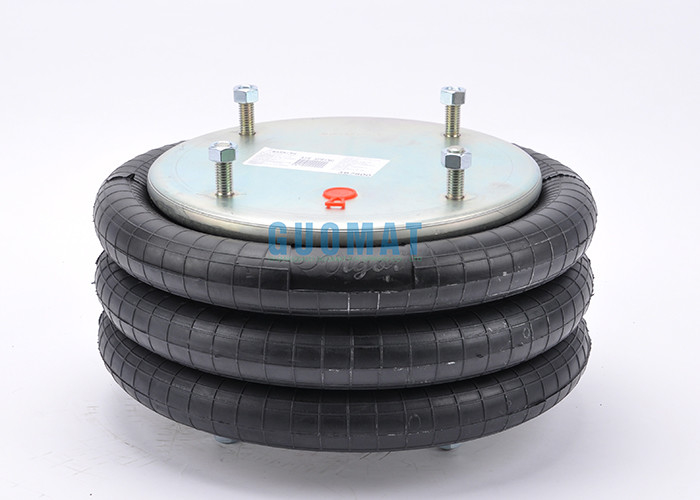

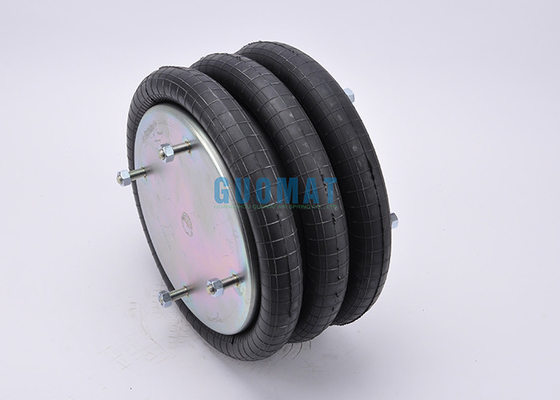

Real photos of 3B14-360:
57893236000000 | 20095024 | Y | 3B14-360 | 3B14-360 |
3B14-360 | 20035825 | N | 3B14-360 Bellows Air Spring | 3B14-360 Bellows Air Spring |
57893236100000 | 20095031 | Y | 3B14-361 | 3B14-361 |
3B14-361 | 20116540 | N | 3B14-361 Bellows Air Spring | 3B14-361 Bellows Air Spring |
57893236100019 | 20095032 | Y | ENIDINE YI-3B14-361 | ENIDINE YI-3B14-361 |
57893236400000 | 20095038 | Y | 3B14-364 | 3B14-364 |
3B14-364 | 20035826 | N | 3B14-364 Bellows Air Spring | 3B14-364 Bellows Air Spring |
57893236500000 | 20095044 | Y | 3B14-365 | 3B14-365 |
3B14-365 | 20095045 | N | 3B14-365 Bellows Air Spring | 3B14-365 Bellows Air Spring |
57893236700000 | 20095046 | Y | 3B14-367 | 3B14-367 |
3B14-367 | 20035827 | N | 3B14-367 Bellows Air Spring | 3B14-367 Bellows Air Spring |
57893237000000 | 20095053 | Y | 3B14-370 | 3B14-370 |
57893237300000 | 20095056 | Y | 3B14-373 HENDRICKSON 001285 | 3B14-373 HENDRICKSON 001285 |
57893237400000 | 20095057 | Y | 3B14-374 | 3B14-374 |
57893237400004 | 20116868 | Y | 3B14-374 | 3B14-374 |
57893237400019 | 20095058 | Y | ENIDINE YI-3B14-374 | ENIDINE YI-3B14-374 |
57893237500000 | 20095059 | Y | 3B15-375 | 3B15-375 |
3B15-375 | 20116541 | N | 3B15-375 | 3B15-375 |
57893237500019 | 20095060 | Y | ENIDINE YI-3B15-375 | ENIDINE YI-3B15-375 |
57893237600000 | 20095061 | Y | 3B15-376 | 3B15-376 |
57893237600004 | 20116542 | Y | 3B15-376 | 3B15-376 |
57893237600019 | 20095062 | Y | ENIDINE YI-3B15-376 | ENIDINE YI-3B15-376 |
57893237700000 | 20095063 | Y | 3B15-377 | 3B15-377 |
3B15-377 | 20116543 | N | 3B15-377 | 3B15-377 |
57893237700019 | 20095064 | Y | ENIDINE YI-3B15-377 | ENIDINE YI-3B15-377 |
57893237800000 | 20095065 | Y | 3B15-378 | 3B15-378 |
57893237800004 | 20116544 | Y | 3B15-378 | 3B15-378 |
57893237800019 | 20095066 | Y | ENIDINE YI-3B15-378 | ENIDINE YI-3B15-378 |
57893238200000 | 20095067 | Y | 3B15-382 | 3B15-382 |
3B15-382 | 20436514 | N | 3B15-382 | 3B15-382 |
57893240000000 | 20095068 | Y | 3B14-400 | 3B14-400 |
57893240100000 | 20095069 | Y | 3B14-401 | 3B14-401 |
57893240300000 | 20095070 | Y | 3B14-403 | 3B14-403 |
57893240300004 | 20125441 | Y | 3B14-403 | 3B14-403 |
