Rubber Steel Goodyear Air Spring / Industrial Air Bags 1B7-100 ,1B7-101 ,1B7-102 ,1B7-103 ,1B7-540 ,1B7-541 , B7-542

China Rubber Steel Goodyear Air Spring / Industrial Air Bags 1B7-100 ,1B7-101 ,1B7-102 ,1B7-103 ,1B7-540 ,1B7-541 , B7-542 supplier
Rubber Steel Goodyear Air Spring / Industrial Air Bags 1B7-100 ,1B7-101 ,1B7-102 ,1B7-103 ,1B7-540 ,1B7-541 , B7-542 supplier Rubber Steel Goodyear Air Spring / Industrial Air Bags 1B7-100 ,1B7-101 ,1B7-102 ,1B7-103 ,1B7-540 ,1B7-541 , B7-542 supplier Rubber Steel Goodyear Air Spring / Industrial Air Bags 1B7-100 ,1B7-101 ,1B7-102 ,1B7-103 ,1B7-540 ,1B7-541 , B7-542 supplier Rubber Steel Goodyear Air Spring / Industrial Air Bags 1B7-100 ,1B7-101 ,1B7-102 ,1B7-103 ,1B7-540 ,1B7-541 , B7-542 supplier

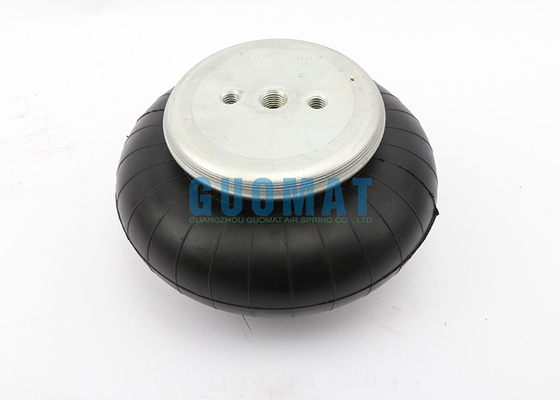

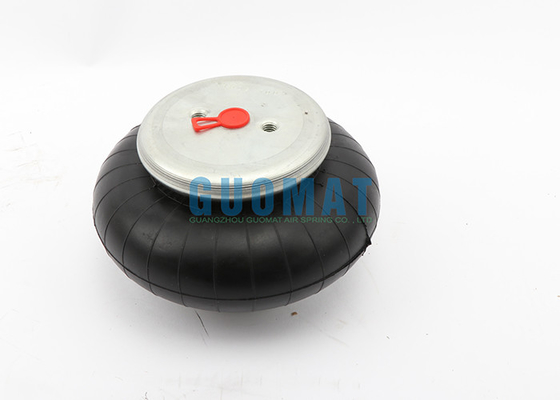

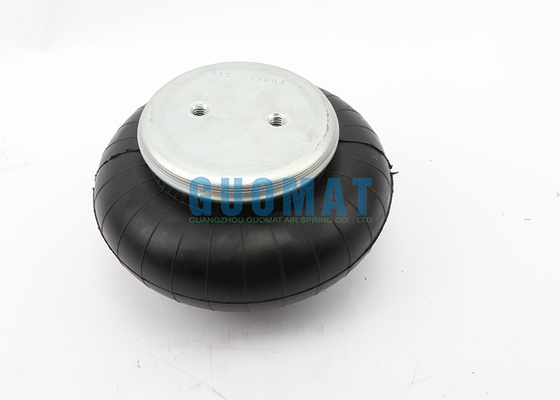

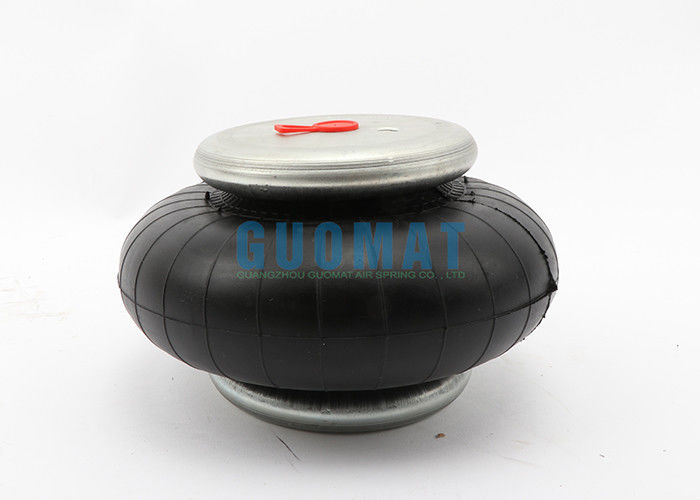

Large Image :  Rubber Steel Goodyear Air Spring / Industrial Air Bags 1B7-100 ,1B7-101 ,1B7-102 ,1B7-103 ,1B7-540 ,1B7-541 , B7-542

Product Details:

Place of Origin: China
Brand Name: GUOMAT
Certification: ISO/TS16949:2009
Model Number: 1B7451

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Packaging Details: strong carton box or as customers need
Delivery Time: 2-8 work days
Payment Terms: T/T, Western Union,Paypal or Others
Supply Ability: 1000pcs/week
Contact Now
Detailed Product Description
Material: Rubber Steel GUOMAT: 1B7451
Warranty: 1 Year Weight: 1.5 Kg
Other Names: Air Rubber Cushion Pressure Ability: 0.2-0.8 M Pa
Bellow No.: 1B540 Air Inlet: 1/4NPTF
Goodyear: 1B7-100

Goodyear Air Spring Industrial Air Bags 1B7-100,1B7-101 ,1B7-102 ,1B7-103,1B7-540,1B7-541,B7-542





GUOMAT Part Number:1B7451 Specifications and Technical parameters




aximum Diameter @ 100 PSIG (mm) 210.82 Other Cross Reference

Goodyear Air Spring Industrial Air Bags 1B7-100,1B7-101 ,1B7-102 ,1B7-103,1B7-540,1B7-541,B7-542



Maximum Height (mm) 140 Manufacturer Part Number 1B7-100,1B7-101 ,1B7-102 ,1B7-103,1B7-540,1B7-541,B7-542
Maximum Stroke (mm) 76.2 Manufacturer Goodyear Air Spring Industrial
Minimum Usable Height (mm) 50 Style Number 540
1 Inch (pounds) 2090 Style Shape Single Convolution
3 Inch (pounds) 1030 Natural Frequency (@80 psig) (cpm) 162
Bead plate Type 1 400 CPM % 80.2
Blind Nut Centers (mm) 44.45 800 CPM % 95.7
Design Height 4.5 1500 CPM % 98.8
40 psig (pounds) 650 Maximum Stroke (pounds) 940
60 psig (pounds) 1010 Material 2-Ply Standard Cord
80 psig (pounds) 1390





Nut / Blind Nut



Top Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC

Screw Center Distance of Top Cover Plate : 44.45 mm

Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC

Screw Center Distance of Bottom Cover Plate : 44.45 mm



Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet : 1/4NPTF

Screw Center Distance Between Gas Hole and Nut : 22.25 mm



Cover Plate

Top Cover Plate Diameter: 115 mm

Bottom Cover Plate Diameter: 115 mm



Rubber Bellows

Rubber Bellows MAX Diameter: 205 mm

Rubber Bellows Natural Diameter : 180 mm

The Working Stroke : MIN 50 mm to MAX 140 mm

Maximum Height : 140 mm

Minimum Height :50mm

Stroke Height : 90mm



Bumper block / Buffer block

Without Bumper Block



Girdle Hoop / Girdle Ring

With Girdle Hoop :no One Pieces of Girdle Hoop



Rubber Steel Goodyear Air Spring / Industrial Air Bags 1B7-100 ,1B7-101 ,1B7-102 ,1B7-103 ,1B7-540 ,1B7-541 , B7-542Rubber Steel Goodyear Air Spring / Industrial Air Bags 1B7-100 ,1B7-101 ,1B7-102 ,1B7-103 ,1B7-540 ,1B7-541 , B7-542Rubber Steel Goodyear Air Spring / Industrial Air Bags 1B7-100 ,1B7-101 ,1B7-102 ,1B7-103 ,1B7-540 ,1B7-541 , B7-542
