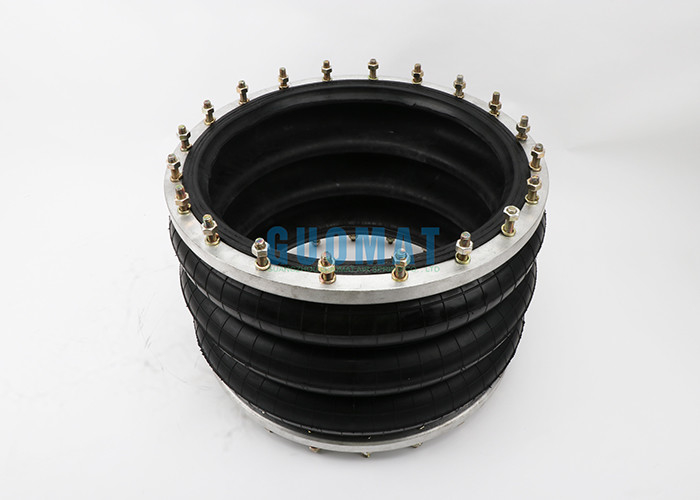

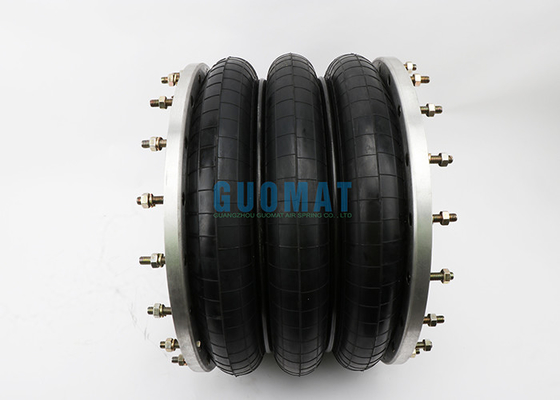

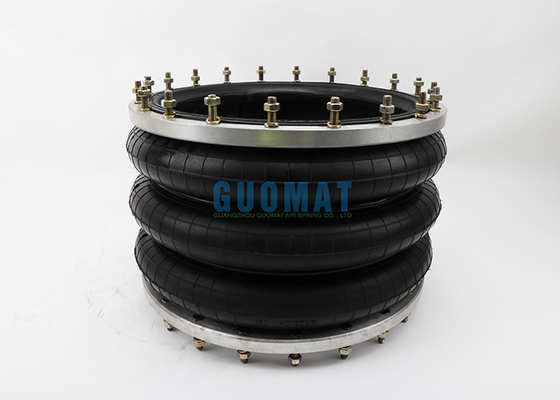

Large Industrial Air Spring GUOMAT 3H480312 At 0.7 Mpa Max Dia 510mm With Ring 20pcs Bolts

China Large Industrial Air Spring GUOMAT 3H480312 At 0.7 Mpa Max Dia 510mm With Ring 20pcs Bolts supplier
Large Industrial Air Spring GUOMAT 3H480312 At 0.7 Mpa Max Dia 510mm With Ring 20pcs Bolts supplier Large Industrial Air Spring GUOMAT 3H480312 At 0.7 Mpa Max Dia 510mm With Ring 20pcs Bolts supplier Large Industrial Air Spring GUOMAT 3H480312 At 0.7 Mpa Max Dia 510mm With Ring 20pcs Bolts supplier Large Industrial Air Spring GUOMAT 3H480312 At 0.7 Mpa Max Dia 510mm With Ring 20pcs Bolts supplier

Large Image :  Large Industrial Air Spring GUOMAT 3H480312 At 0.7 Mpa Max Dia 510mm With Ring 20pcs Bolts

Product Details:

Place of Origin: China
Brand Name: GUOMAT
Certification: ISO/TS16949:2009
Model Number: 3H480312

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Packaging Details: strong carton box or as customers need
Delivery Time: 2-8 work days
Payment Terms: T/T, Western Union,Paypal or Others
Supply Ability: 1000pcs/week
Contact Now
Detailed Product Description
Material: Aluminum Alloy And Rubber GUOMAT: 3H480312
Warranty: 12 Months Net Weight: 16.5 KG
Other Name: Industry Air Spring Isolator Pressure Ability: 0.2-0.8 M Pa
Gross Weight: 18 KG Flange Ring: With Or Without
Connection Method: Flange Connection Flange Ring Size: 476 Mm
BOLT CIRCLE DIA: 438 Mm

Large Industrial Equipment Air Spring GUOMAT 3H480312 At 0.7 Mpa Max Dia 510mm With Ring 20pcs Bolts

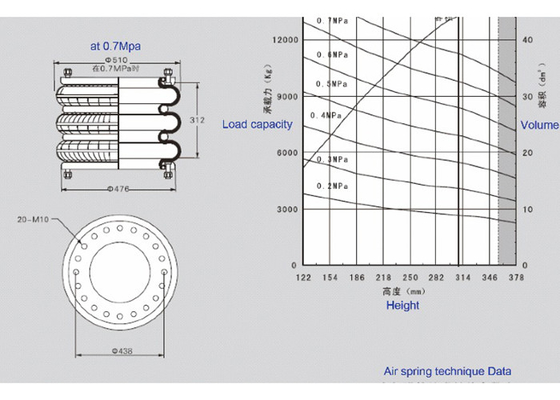

Industrial Triple Convoluted Air Spring Specifications



Description Assembly

Description
Assembly Order No.
Style 480
Ribbed neck aluminum bead rings (equal spacing), 20pcs M10 bolts, nuts, washers




Manufacturer Part Number 3H480312 Bead ring Type 4
Maximum Diameter @ 7 Bar (mm) 510 Dim# C (Bolt Circle Diameter mm) 438
Maximum Height (mm) 378 # of Bolts (each ring) 32
Maximum Stroke (mm) 256 Design Height (mm) 381
Minimum Usable Height (mm) 224 3 Bar (kN) 78.5
25 mm (kN)   5 Bar (kN) 132.9
50% of Max Stroke (kN)   7 Bar (kN) 187.9
Maximum Stroke (kN)   Natural Frequency (@5 Bar)(fn(Hz) 1.2
Applicable Technigram?   7 Hz 97
Material One-Ply,  13 Hz 99.3
    25 Hz 99.8



Large Industrial Air Spring GUOMAT 3H480312 At 0.7 Mpa Max Dia 510mm With Ring 20pcs Bolts









Flange connection type of air spring model comparison table
GUOMAT NO. Contitech NO. GUOMAT NO. Contitech NO.
FS22-3DICR FS 22-3 DI CR FS960-12RS FS 960-12 RS
FS44-5DICR FS 44-5 DI CR FS1330-11RS FS 1330-11 RS
FS76-7DICR FS 76-7 DI CR FS1710-12RS FS 1710-12 RS
FS76-7DSCR FS 76-7 DS CR FS2870-16RS FS 2870-16 RS
FS138-8DS FS 138-8 DS FS5450-16RS FS 5450-16 RS
FS210-10DS FS 210-10 DS FD960-22RS FD 960-22 RS
FS412-10DS FS 412-10 DS FD1120-30RI FD 1120-30 RI
FS614-13DS FS 614-13 DS FD1330-25RS FD 1330-25 RS
FS816-15DS FS 816-15 DS FD1710-25RS FD 1710-25 RS
FD22-4DICR FD 22-4 DI CR FD1730-40RI FD 1730-40 RI
FD44-10DICR FD 44-10 DI CR FD2380-24RS FD 2380-24 RS
FD76-14DICR FD 76-14 DI CR FD2470-40RI FD 2470-40 RI
FD76-14DSCR FD 76-14 DS CR FD2870-30RS FD 2870-30 RS
FD138-18DS FD 138-18 DS FD5450-28RS FD 5450-28 RS
FD209-21DS FD 209-21 DS FT960-34RS FT 960-34 RS
FD210-22DS FD 210-22 DS FT1330-35RS FT 1330-35 RS
FD412-18DS FD 412-18 DS FT1710-38RS FT 1710-38 RS
FD614-26DS FD 614-26 DS FT2870-45RS FT 2870-45 RS
FD816-30DS FD 816-30 DS FT5450-44RS FT 5450-44 RS
FT22-6DICR FT 22-6 DI CR
FT44-15DICR FT 44-15 DI CR
FT76-20DICR FT 76-20 DI CR
FT76-20DSCR FT 76-20 DS CR
FT138-26DS FT 138-26 DS
FT210-32DS FT 210-32 DS
FT412-32DS FT 412-32 DS
FT614-36DS FT 614-36 DS
FT816-40DS FT 816-40 DS



Large Industrial Air Spring GUOMAT 3H480312 At 0.7 Mpa Max Dia 510mm With Ring 20pcs BoltsLarge Industrial Air Spring GUOMAT 3H480312 At 0.7 Mpa Max Dia 510mm With Ring 20pcs BoltsLarge Industrial Air Spring GUOMAT 3H480312 At 0.7 Mpa Max Dia 510mm With Ring 20pcs Bolts
