| Place of Origin: | Guangdong,China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | F-300-3 |
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiable |
| Packaging Details: | strong carton box or as customers need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union,paypal or others |
| Supply Ability: | 1000pcs/week |
| Material: | Rubber And Stainless Steel | Yokohama: | S300-3R |
|---|---|---|---|
| GUOMAT: | F-300-3 | Layer Number: | 3 Convolution |
| Using Maximum Internal Pressure: | 0.88 Mpa | Vibration Frequency: | 1.9 Hz |
| G.W.: | 6.5 KG | ||
| High Light: | triple convoluted air spring,double convoluted air spring |
||

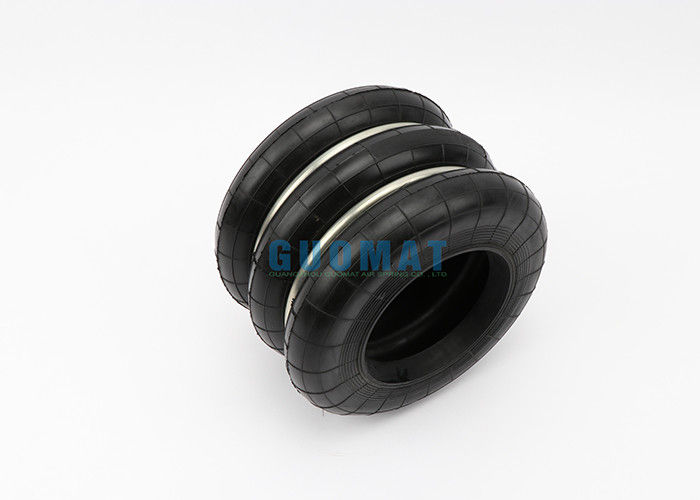

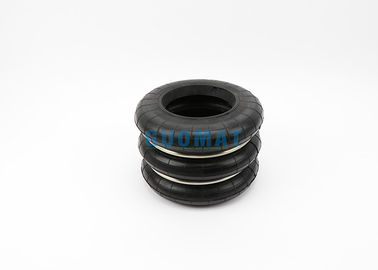

S300-3R Rubber and Stainless Steel Yokohama Air Spring Refer to GUOMAT F-300-3 3 Convolution 0.88 Mpa
Specifications
| Type | Rubber Air spring | Model NO. | F-300-3 |
| Car make | Punching Press | Package | Carton/Cartons |
| Position | Middle | Warranty | One year |
| Rubber type | Natural rubber | Place of origin | Guangzhou China(main land) |
| Manufacturer part NO. |
F-300-3 |
Net Weight | 5.75 KG |
Net Weight:5.75 KG
Gross Weight:6.5 KG
Package Size:350mm*350mm*16mm
F-300 Air Spring Catalogue items Detailed Parameter Table:
| GUOMAT NO. | Reference No. | Hight H(mm) | Commonly Maximum Stroke(mm) | The Largest Diameter When Compressed(mm) | ||
| Design High(mm) | Maximum High(mm) | Minimum Height(mm) | ||||
| F-300-1 | S-300-1 | 72 | 117 | 40 | ±30 | 400 |
| F-300-2 | S-300-2 | 98 | 158 | 53 | ±40 | 360 |
| F-300-3 | S-300-3 | 152 | 242 | 82 | ±60 | 360 |
| F-300-4 | S-300-4 | 206 | 326 | 111 | ±80 | 360 |
| GUOMAT NO. | Reference No. | Standard Height,Internal Pressure 0.49 M pa When The General Value | Using Maximum Internal Pressure (M pa) | Internal Pressure (M pa) | ||||
| Effective Area (Cm2) | Volume(L) | Load (K n) | Dynamic Spring Parameters (N/Min) | Vibration Frequency (Hz) | ||||
| F-300-1 | S-300-1 | 710 | 5.6 | 34.7 | 1180 | 2.8 | 0.69 | 2.9-3.9 |
| F-300-2 | S-300-2 | 710 | 7.4 | 34.7 | 745 | 2.3 | 0.88 | 3.9-4.9 |
| F-300-3 | S-300-3 | 710 | 11.2 | 34.7 | 490 | 1.9 | 0.88 | 3.9-4.9 |
| F-300-4 | S-300-4 | 710 | 15.5 | 34.7 | 324 | 1.5 | 0.88 | 3.9-4.9 |
This item can fits for many kinds of machines
