| Place of Origin: | China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 1B53014 3/4 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | strong carton box or as customers need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union,Paypal or Others |
| Supply Ability: | 1000pcs/week |
| Material: | Rubber Steel | Firestone: | W01-M58-6100 |
|---|---|---|---|
| Warranty: | One Year | Weight: | 6.5 Kg |
| Other Names: | Air Springs Vibration | Pressure Ability: | 0.2-0.8 M Pa |
| Rubber Bellows: | 113 | Air Inlet: | 3/4 N P.T.F. |
| High Light: | convoluted air spring,air helper springs |
||

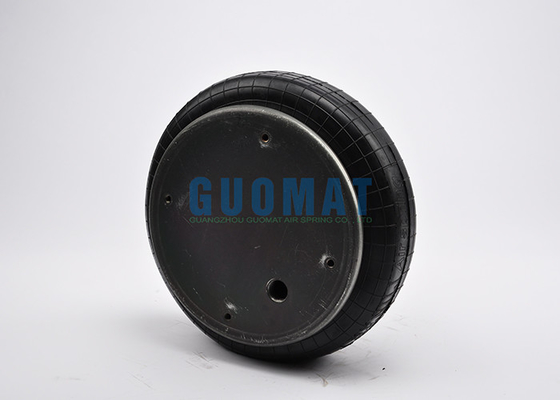

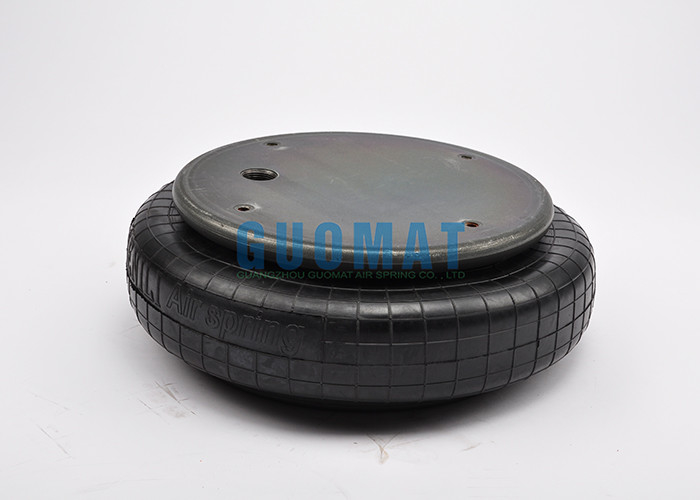

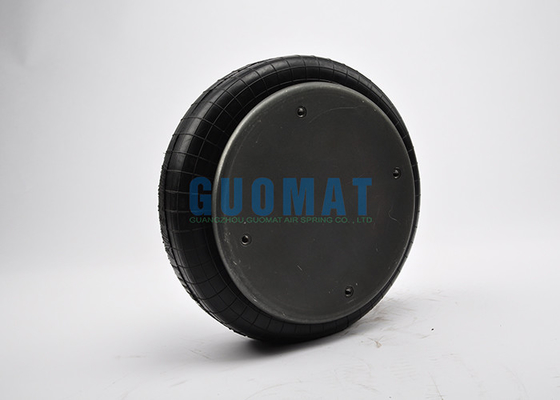

W01-M58-6100 Firestone Industrial Air Springs GUOMAT NO.1B53014 3/4 BSP Air Mouth
GUOMAT 1B53014 3/4 Description:
The traditional fluidized bed damping method is primarily a rubber cushion that requires a higher steel spring. However, neither of the two methods of shock absorption can meet end user requirements. However, the introduction of "air spring insulation systems" abroad has made it possible to isolate vibrations rather than reduce them. With its unique energy conversion method, the vibration of mechanical energy is converted into internal energy, so that 95% of the vibration is isolated to achieve a real isolation effect.
Different types of fluidized beds can choose the appropriate load capacity of the air spring according to the total weight of the fluidized bed and design specific installation methods based on the length, width and height of the fluidized bed. However, the installation of air springs is advisable. This simplifies the installation of the insulation system considerably than the installation of steel springs.
There are two control methods for airbag insulation. One is a set (usually 4 or 6) of airbag check valve cushions, just like a car tire.
GUOMAT 1B53014 3/4 Specifications and Technical Data
Operating Temperature: 57Cº to -54Cº
GUOMAT NO.:1B53014 3/4
Cross NO.:W01-M58-6100
❶Nut / Blind Nut
Top Cover Plate Screw (Nut) Tooth :4pcsX 3/8-16UNC
Screw Center Distance of Top Cover Plate :158.8 mm
Bottom Cover Plate Screw (Nut) Tooth : 4pcsX 3/8-16UNC
Screw Center Distance of Bottom Cover Plate : 158.8 mm
Distance Gas Hole Between Nut 79.4 mm
❷ Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : 3/4 N P.T.F.
❸ Cover Plate
Top Cover Plate Diameter (Width): 289mm
Bottom Cover Plate Diameter (Width): 289 mm
❹Rubber Bellows
Rubber Bellows Natural Diameter 380 mm
Rubber Bellows Max Diameter : 406 mm
Rubber Bellows Natural Height : 120 mm
The Working Stroke : MAX 160 mm to MIN 81 mm
❺ Bumper block / Buffer block
Without Bumper Block
❻ Girdle Hoop / Girdle Ring
With Girdle Hoop :Without Girdle Hoop
The usal kinds of Single Convolution Air Actuator
| Single Convolution Air Actuator | ||||
| All Measurements Are In Mm | ||||
| GUOMAT NO. | Firestone NO. | Min. Design height | Installation Space Required | Max. Stroke |
| 1B53014 3/4 | W01-M58-6100 | 51 | 420 | 134 |
