| Material: | Rubber Steel | Firestone: | W01-M58-6070 |
|---|---|---|---|
| Warranty: | One Year | Weight: | 7.1 Kg |
| Other Names: | High Strength Air Springs | Pressure Ability: | 0.2-0.8 M Pa |
| Rubber Bellows: | 128 | Air Inlet: | 3/4 N P.T.F. |
| High Light: | convoluted air spring,air helper springs |
||

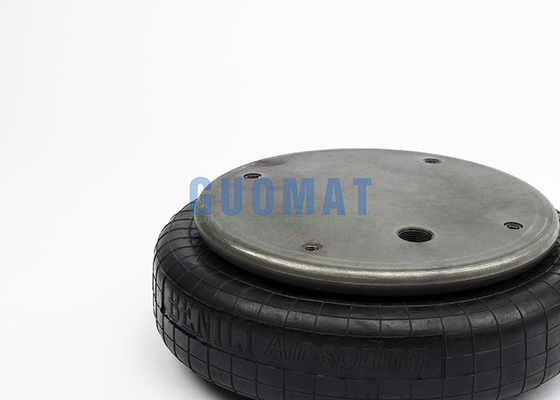

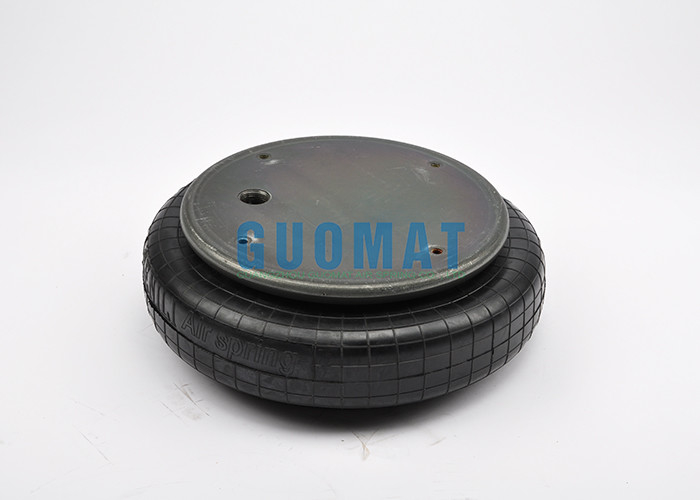

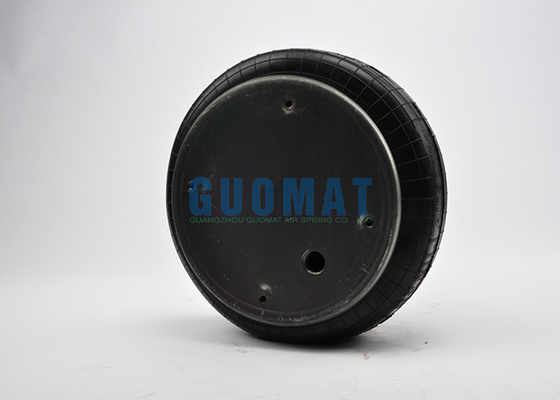

Style 128 High Strength Con- struction W01-M58-6070 Firestone Industrial Air Springs
GUOMAT 1B53014D 3/4 Description:
GUOMAT 1B53014D 3/4 is High Strength Construction, he can withstand greater pressure, so the weight can be increased, giving customers more options. For example, some punches with greater impact or industrial equipment, we can use this product. Different types of fluidized beds can choose the appropriate air spring load capacity according to the total weight of the fluidized bed, and design specific installation methods based on the length, width and height of the fluidized bed. However, it is recommended to install an air spring. This greatly simplifies the installation of insulation systems compared to the installation of steel springs.
There are two control methods for airbag insulation. One is a set (usually 4 or 6) of airbag check valve pads, just like a car tire.
GUOMAT 1B53014 3/4 Specifications and Technical Data
Operating Temperature: 57Cº to -54Cº
GUOMAT NO.:1B53014D 3/4
Cross NO.:W01-M58-6070
❶Nut / Blind Nut
Top Cover Plate Screw (Nut) Tooth :4pcsX 3/8-16UNC
Screw Center Distance of Top Cover Plate :158.8 mm
Bottom Cover Plate Screw (Nut) Tooth : 4pcsX 3/8-16UNC
Screw Center Distance of Bottom Cover Plate : 158.8 mm
Distance Gas Hole Between Nut 79.4 mm
❷ Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : 3/4 N P.T.F.
❸ Cover Plate
Top Cover Plate Diameter (Width): 289mm
Bottom Cover Plate Diameter (Width): 289 mm
❹Rubber Bellows
High Strength Con- struction
Rubber Bellows Natural Diameter 380 mm
Rubber Bellows Max Diameter : 406 mm
Rubber Bellows Natural Height : 120 mm
The Working Stroke : MAX 160 mm to MIN 81 mm
❺ Bumper block / Buffer block
Without Bumper Block
❻ Girdle Hoop / Girdle Ring
With Girdle Hoop :Without Girdle Hoop
The usal kinds of Single Convolution Air Actuator
| Single Convolution Air Actuator | ||||
| All Measurements Are In Mm | ||||
| GUOMAT NO. | Firestone NO. | Min. Design height | Installation Space Required | Max. Stroke |
| 1B53014 3/4 | W01-M58-6070 | 51 | 420 | 134 |
Other size GUOMAT can produce:
128 High I Strength Con-struction
Blind nuts, 114 BSP:W01-M58-6071
Blind nuts, 114 BSP,rubber bumper:W01-M58-6068
Blind nuts, 3/4 BSP:W01-M58-6070
Blind nuts, 3/4 BSP,rubber bumper:W01-M58-6069
Rubber bellows only:W01-358-0231
Description
Style 113-1 Two Ply
Blind nuts, 1/4 BSP:W01-M58-6371
Blind nuts, 3/4 BSP:W01-M58-6369
Countersunk steel bead rings,40 mm bolts, nuts, washers:W01-M58-7539
Rubber bellows only:W01-358-0150
Assembly weight:7.2kg.
Force to collapse to minimum height (@ 0 BAR):111 N.
Style 128-1 High Strength Соn-struction
Blind nuts, 3/4 BSP:W01-M58-6066
Blind nuts, 1/4 BSP:W01-M58-6067
