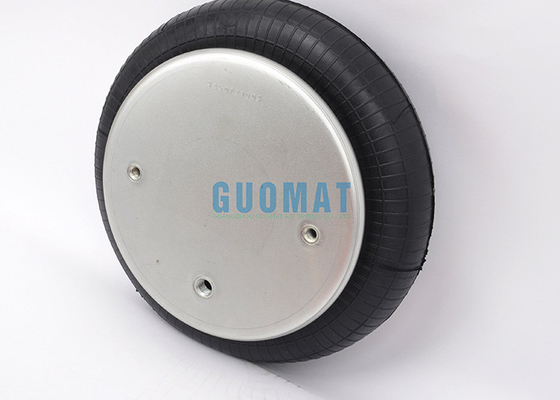

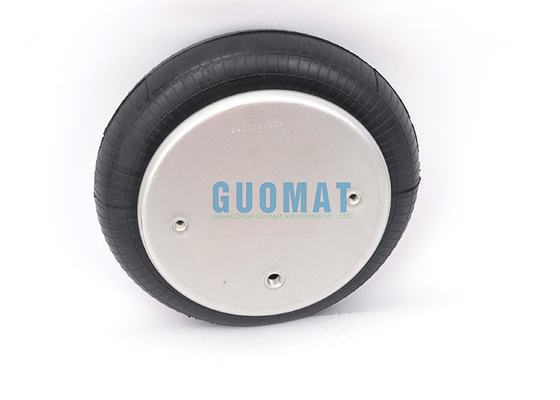

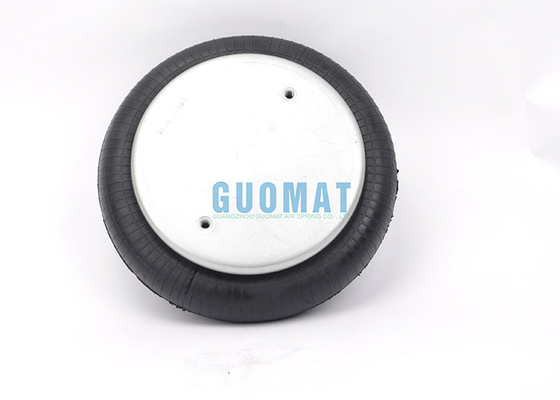

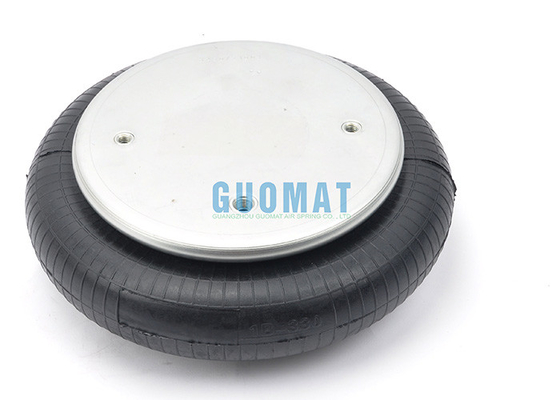

W01-M58-6008 Firestone Air Bag Kit / Convoluted Industrial Air Spring Shock Style 19

W01-M58-6008 Firestone Air Bag Kit Convoluted Industrial Air Spring Shock Style 19 For Vibrating Packer


GUOMAT 1B6008 Specifications and Technical Data

Loading Capacity at 20 psig: 1,300 lbsf
Loading Capacity at 60 psig: 3,900 lbsf
Loading Capacity at 90 psig: 5,850 lbsf
Operating Temperature: 57Cº to -54Cº
Compressed Height: 2.12
Top Cover Plate Diameter: 9.00 inches / 231mm
Bottom Piston Number: 3212 or 3183
Bottom Cover Plate Diameter: 9.00 inches / 231mm
Screw Center Distance : 157.5 mm
Distance Gas Hole Between Nut 73 mm
Top Cover Plate Screw (Nut) Tooth : 2pcsXM8-16UNC
Bottom Cover Plate Screw (Nut) Tooth : 2pcsX M8-16UNC
Rubber Bellows MAX Diameter(Maximum Diameter): 12.9 inches / 325 mm
Rubber Bellows Natural Diameter 300 mm
The Working Stroke : MAX 160 mm to MIN 55 mm
Compressed Height: 2.12 inches / 105 mm
Gas Hole / Air inlet : 1/4 N P.T.F.
Firestone Bellows Number: 19
Goodyear Part Number:1B12-300 / 1B12-313
Goodyear Bellows Number:578-91-3-301 / 578 91 3 301 / 578913301
Triangle Part Number:4474
Triangle Bellows Number:6374
Holland (Neway) Number:905-57-226


OEM Original Equipment Manufacturer:

GUOMAT NO.1B6008
Firestone No.: W01-M58-6008/ W01 M58 6008 / W01M586008
Firestone Style: 19
ContiTech: FS 330-11 Cl G1/4 M8
ContiTech: FS 330-11 CI/ FS330-11CI/ FS33011CI
ContiTech Bellow: FS 330-11/ FS330-11/ FS33011
ContiTech: FS 330-11 60424
ContiTech: FS 330-11 Cl 60424
ContiTech: FS 330-11 G1/4 M8
ContiTech: FS 330-11 Cl G1/4
Enidine: YM FS 330-110170 / YMFS330-110170 1 YMFS330110170
Enidine: YM-1B12-313 1 YM 1B12 313 /YM1B12313


The other kinds of Single Convolution Air Actuator we can produce:
Style 19 Two Ply Bellows
Blind nuts, 1/4 BSP:W01-M58-6008;W01 M58 6008;W01M586008
Blind nuts, 1/4 BSP, bumper:W01-M58-6373;W01M586373;W01 M58 6373
Blind nuts, 3/4 BSP:W01-M58-6011;W01 M58-;W01 M58 6011
Blind nuts, 3/4 BSP, bumper:W01-M58-6372;W01M586372;W01 M58 6372
Countersunk steel bead rings,40 mm bolts, nuts, washers:W01-M58-6975;W01M586975;W01 M58 6975
Rubber bellows only:W01-358-0134;W01 358 0134;W013580134
Assembly weight (bead plate version, no bumper):4.45 kg.
Force to collapse to minimum height (@ 0 BAR):40 N.

Style 19-0.75 Two Ply Bellows:Blind nuts, 1/4 BSP ;W01-M58-6040;W01M586040;W01 M58 6040


Shipping and packing
Shipment:
1. Normally, we will deliver the parts within 2-8 work days after payment is received.
2. We always deliver the air spring by DHL, UPS,FEDEX and TNT.They are all can very quickly to deliver the package to you. If the package is large and heavy, we may send it by sea.
We will arrange it for you if you have no preference on the express carrier
Packing:
Shipping by Air: packed with strong carton box;
Shipping by Sea: wrapped with water-proof material,pallet and wooden case will be used if necessary.


Air Spring Use on Industrial Applications

Air Spring offer solutions for vibration-oriented mounting of many kinds of machines. From the technical design all the way through to the harmonization of individual system components. Air spring can be applied to a lot of equipment that can effectively reduce the influence of vibration to the equipment .Currently, more and more industrial equipment use air spring. GUOMAT air springs make very low natural frequencies possible, from 0.5 to 3.5 Hz depending on the type. With loads ranging from 0.5 k N to more than 440 k N, air isolators provide effective mounts for sensitive measuring instruments as well as heavy foundations.


Industrial Equipments Such As

Papermaking equipment, large washing machine, water treatment equipment, fitness equipment, punch press, leather draw machine, automobile testing station, medical machinery, mining machinery, etc.
