Email:linda@662n.com Mob:+8613924100039(WhatsAPP)
Wechat:airspringG Skype:guomat
 |
| Place of Origin: | China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 1B6011 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable、 |
| Packaging Details: | strong carton box or as customers need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union,Paypal or Others |
| Supply Ability: | 1000pcs/week |
| Material: | Rubber Steel | OEM: | W01-M58-6011 |
|---|---|---|---|
| Warranty: | 1 Year | Weight: | 5.0 Kg |
| Other Names: | Air Vibration Shock | Pressure Ability: | 0.2-0.8 M Pa |
| Bellows NO.: | Style 19 | ||
| High Light: | convoluted air spring,air helper springs |
||

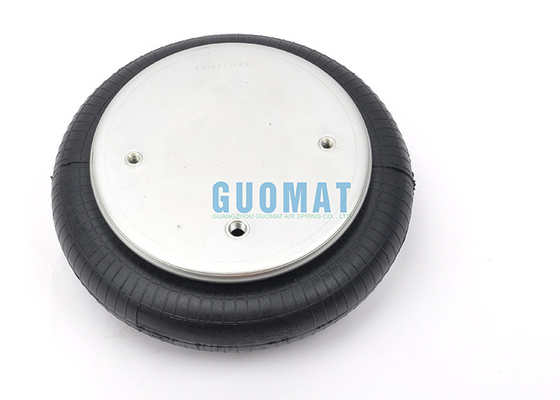

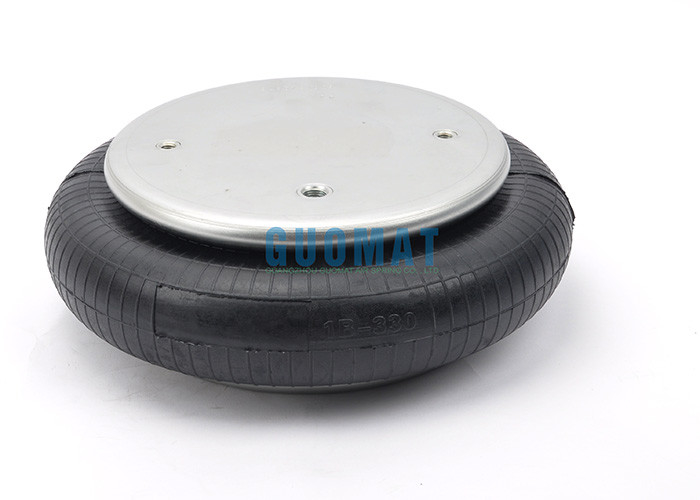

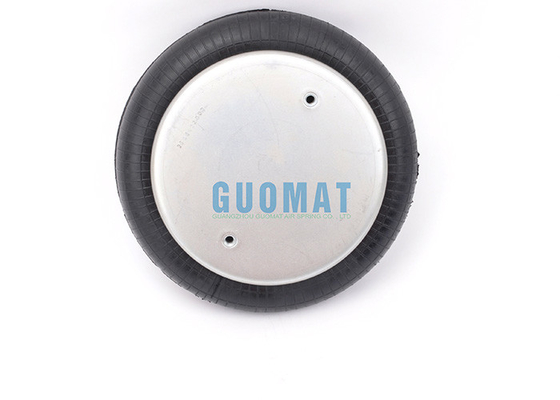

Firestone Air Bag Kit W01-M58-6011 Air Spring Shock Style 19 For Industrial Laundry Machine
GUOMAT 1B6011 Specifications and Technical Data
Loading Capacity at 20 psig: 1,300 lbsf
Loading Capacity at 60 psig: 3,900 lbsf
Loading Capacity at 90 psig: 5,850 lbsf
Operating Temperature: 57Cº to -54Cº
Compressed Height: 2.12
Top Cover Plate Diameter: 9.00 inches / 231mm
Bottom Cover Plate Diameter: 9.00 inches / 231mm
Screw Center Distance : 157.5 mm
Distance Gas Hole Between Nut 73 mm
Top Cover Plate Screw (Nut) Tooth : 2pcsXM8-16UNC
Bottom Cover Plate Screw (Nut) Tooth : 2pcsX M8-16UNC
Rubber Bellows MAX Diameter(Maximum Diameter): 12.9 inches / 325 mm
Rubber Bellows Natural Diameter 300 mm
The Working Stroke : MAX 160 mm to MIN 55 mm
Compressed Height: 2.12 inches / 105 mm
Gas Hole / Air inlet : 1/4 N P.T.F.
Firestone Bellows Number: 19
OEM Original Equipment Manufacturer:
GUOMAT NO.1B6011
Firestone No.: W01-M58-6011/ W01 M58 6011 / W01M586011
Firestone Style: 19
ContiTech: FS 330-11 Cl G1/4 M8
ContiTech: FS 330-11 CI/ FS330-11CI/ FS33011CI
ContiTech Bellow: FS 330-11/ FS330-11/ FS33011
ContiTech: FS 330-11 60424
ContiTech: FS 330-11 Cl 60424
ContiTech: FS 330-11 G1/4 M8
ContiTech: FS 330-11 Cl G1/4
Enidine: YM FS 330-110170 / YMFS330-110170 1 YMFS330110170
Enidine: YM-1B12-313 1 YM 1B12 313 /YM1B12313
The other kinds of Single Convolution Air Actuator we can produce:
Style 19 Two Ply Bellows
Blind nuts, 1/4 BSP:W01-M58-6008,W01 M58 6008,W01M586008
Blind nuts, 1/4 BSP, bumper:W01-M58-6373,W01 M58 6373,W01M586373
Blind nuts, 3/4 BSP:W01-M58-6011,W01 M58 6011,W01M586011
Blind nuts, 3/4 BSP, bumper:W01-M58-6372,W01 M58 6372,W01M586372
Countersunk steel bead rings,40 mm bolts, nuts, washers:W01-M58-6975,W01M586975,W01 M58 6975
Rubber bellows only:W01 -358-0134,W01 358 0134,W013580134

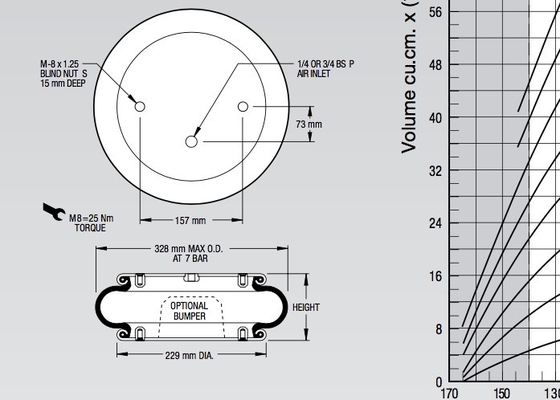

| Maximum diameter @ 7 bar (mm) | Bead type |
| 328 | 3 |
| Maximum height (mm) | dim. A (Blind Hole Center) (mm) |
| 140 | 158 |
| Maximum travel (mm) | dim. B (mm) |
| 89 | 73 |
| Minimum available height (mm) | Air isolator |
| 51 | Design height (mm) |
| Force at 25 mm travel in kN @ 5 Bar | 127 |
| 27.1 | Load (at design height): 3 Bar (kN) |
| KN force in units of 5 bar in 50% of the maximum stroke | 10.3 |
| 24.8 | Load (at design height): 5 Bar (kN) |
| KN force at a maximum stroke of 5 Bar | 17.8 |
| 13.7 | Load (at design height): 7 Bar (kN) |
| Style cross-reference extended height (similar end cap) style number | 25.4 |
| 19-.75 | Natural frequency (@ 5 Bar) (fn (Hz) |
| material | 2.5 |
| 2 layer standard line | Isolation percentage at a forced frequency of 7 Hz |
| Finishing details | 85.6 |
| Isolation percentage at a forced frequency of 13 Hz | |
| 96.8 |
Shipping and packing
Shipment:
1. Normally, we will deliver the parts within 2-8 work days after payment is received.
2. We always deliver the air spring by DHL, UPS,FEDEX and TNT.They are all can very quickly to deliver the package to you. If the package is large and heavy, we may send it by sea.
We will arrange it for you if you have no preference on the express carrier
Packing:
Shipping by Air: packed with strong carton box;
Shipping by Sea: wrapped with water-proof material,pallet and wooden case will be used if necessary.
Air Spring offer solutions for vibration-oriented mounting of many kinds of machines. From the technical design all the way through to the harmonization of individual system components. Air spring can be applied to a lot of equipment that can effectively reduce the influence of vibration to the equipment .Currently, more and more industrial equipment use air spring. GUOMAT air springs make very low natural frequencies possible, from 0.5 to 3.5 Hz depending on the type. With loads ranging from 0.5 k N to more than 440 k N, air isolators provide effective mounts for sensitive measuring instruments as well as heavy foundations.
Industrial Equipments Such As
Papermaking equipment, large washing machine, water treatment equipment, fitness equipment, punch press, leather draw machine, automobile testing station, medical machinery, mining machinery, etc.
