| Place of Origin: | China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 1B1209S |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | strong carton box or as customers need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union,Paypal or Others |
| Supply Ability: | 1000pcs/week |
| Material: | Rubber Steel | FIRESTONE: | W01-M58-6175 |
|---|---|---|---|
| Warranty: | 12 Months | Weight: | 1.6 Kg |
| Other Name: | Air Bags Kit | Pressure Ability: | 0.2-0.8 M Pa |
| Screw: | 2XM8x1.25 | Air Inlet: | 3/4 |
| High Light: | convoluted air spring,air helper springs |
||

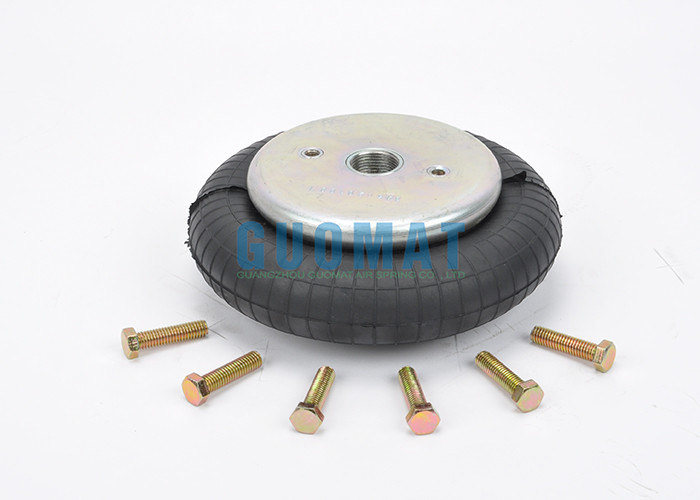

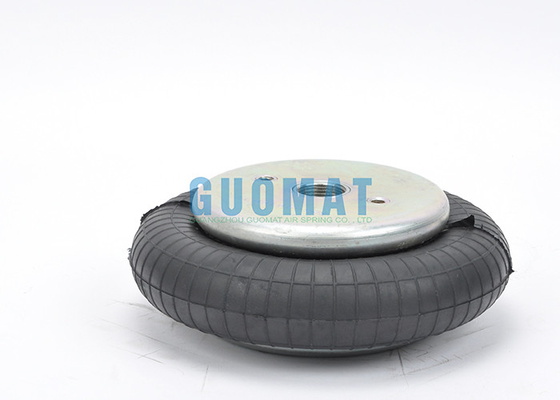

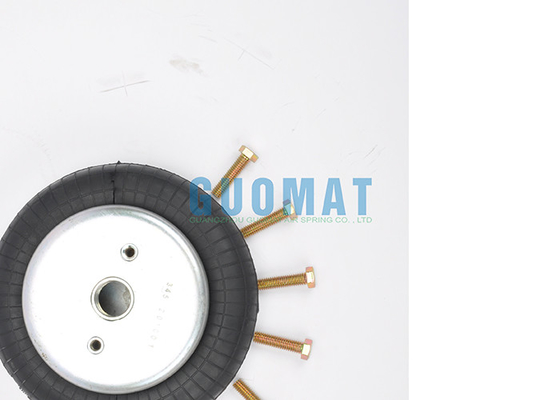

W01-M58-6175 Industrial Air Bags Kit Style 117 High Strength Con- struction Isolation Appliance
Technical Parameters of 1B120-9S
❶Nut / Blind Nut
Top Cover Plate Screw (Nut) Tooth : 2 PiecesXM8x1.25
Screw Center Distance of Top Cover Plate :70mm
Bottom Cover Plate Screw (Nut) Tooth : 2 PiecesXM8x1.25
Screw Center Distance of Bottom Cover Plate :70 mm
❷ Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : G3/4
❸ Cover Plate
Top Cover Plate Diameter (Width): 135mm
Bottom Cover Plate Diameter (Width): 135mm
❹Rubber Bellows
Rubber Bellows MAX Diameter : 215 mm
Working Stroke:MIN 50 To MAX 115 MM
❺ Bumper block / Buffer block
Without Bumper Block
❻ Girdle Hoop / Girdle Ring
With Girdle Hoop :NO Piece of Girdle Hoop
GUOMAT:1B1209S
OEM Original Equipment Manufacturer:
Style 117 High Strength Con- struction
Blind nuts, 1/4 BSP:W01-M58-6176,W01 M58 6176,W01M586176
Blind nuts, 3/4 BSP:W01-M58-6175,W01 M58 6175,W01M586175
Countersunk steel bead rings
40 mm bolts, nuts & washers:SEE NOTE BEl OW
AIR INLET 3/4 NPT:
Firestone : W01-M58-6165,W01M586165,W01 M58 6165
Contitech :: FS 120-9,FS120-9;FS1209
Dunlop(FR) : 8’’x1 S08101
Bosch : 822419003
Festo : EB-215-80
Norgren : PM/31081(8x1)
Weforma : WBE 300-E1
Airtech : 140293
Airtech : 111003/1B-190FB :
Megatech :1S120-9 3/4 M8
AIR INLET 1/4 NPT:
Firestone : W01-M58-6166
Contitech : FS 120-9
Dunlop(FR) : 8’’x1 S08100
Bosch : 822419008
Weforma : WBE 300-E2
PNEUMATIC APPLICATION – STATIC CHARACTERISTIC VALUES
| Force F [lbf] | |||||
| Pressure p [psi] | 40 | 60 | 80 | 100 | Vol. V [in.³] |
| H 4.50 in./114.3MM | 728 | 1130 | 1570 | 1970 | 110 |
| H 4.00 in./101.6MM | 905 | 1400 | 1940 | 2390 | 100 |
| H 3.50 in./88.9MM | 1050 | 1610 | 2240 | 2740 | 90 |
| H 3.00 in./76.2MM | 1170 | 1770 | 2450 | 3020 | 75 |
| H 2.50 in./63.5MM | 1270 | 1900 | 2630 | 3260 | 57 |
VIBRATION ISOLATION – DYNAMIC CHARACTERISTICS
| Pressure p [psi] | 40 | 60 | 80 | 100 | 120 | Vol. V [in.³] | |
| Force (load) F [lbf] | 801 | 1,240 | 1,700 | 2,130 | 2,530 | 110 | |
| Spring rate c [lbf/in] | 709 | 949 | 1,190 | 1,430 | 1,670 | 110 | |
| Natural Frequency f0 [Hz] | 2.9 | 2.8 | 2.7 | 2.6 | 2.6 | 110 | |
| Design height H: recommended 4.33 inch, minimum 3.54 inch | |||||||
