| Material: | Rubber Steel | FIRESTONE: | W01-358-6155 |
|---|---|---|---|
| Warranty: | 12 Months | Weight: | 1.5 Kg |
| Other Names: | Industrial Tackle Air Shock | Pressure Ability: | 0.2-0.8 M Pa |
| CONTITECH: | FS70-7 | BOSCH: | 822419002 |
| High Light: | convoluted air spring,air helper springs |
||

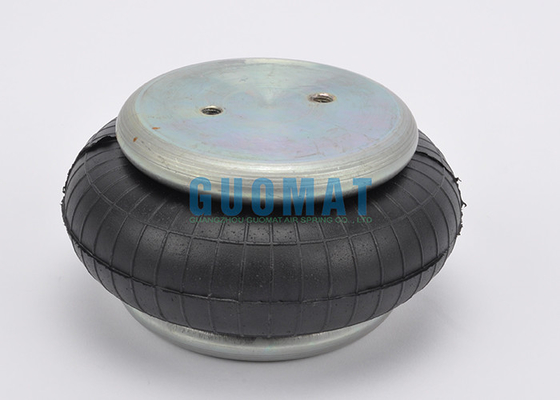

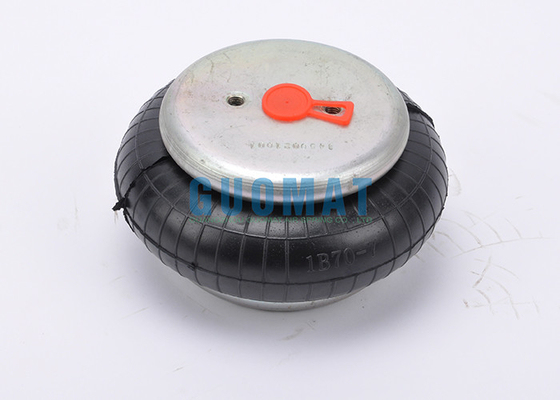

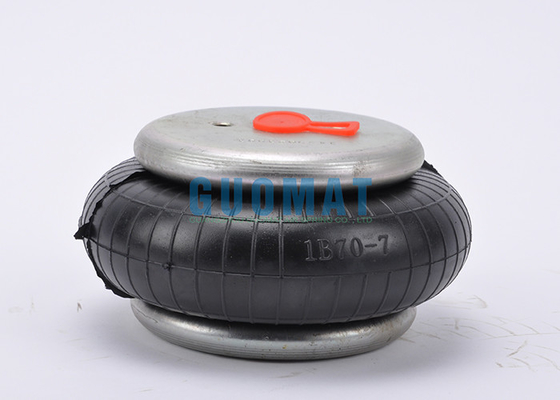

Rubber Bellows Style 131 FIRESTONE W01-M58-6155 Single Convoluted Air Spring For Instrument
OEM Original Equipment Manufacturer:
| BELLOW NO. | COMPLETE NO. |
| AIRKRAFT 112003 | CONTITECH FS 70-7 2681 015 000 |
| CONTITECH FS 70-7 60512 | PHOENIX SP 1 B 05 |
| FIRESTONE FLEX 131 | BOSCH 822419002 |
| FIRESTONE W01-358-0131 | FESTO EB-165-65 |
|
FIRESTONE W01-M58-6155 FIRESTONE W01-358-0127 |
WEFORMA WBE 200-E1 |
Technical Parameters of 1B7070
❶Nut / Blind Nut
Top Cover Plate Screw (Nut) Tooth : 2 PiecesXM8x1.25
Screw Center Distance of Top Cover Plate :44.5mm
Bottom Cover Plate Screw (Nut) Tooth : 2 PiecesXM8x1.25
Screw Center Distance of Bottom Cover Plate :44.5mm
❷ Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : G1/4
❸ Cover Plate
Top Cover Plate Diameter (Width): 105mm
Bottom Cover Plate Diameter (Width): 105mm
❹Rubber Bellows
Rubber Bellows MAX Diameter : 165 mm
Working Stroke:MIN 50 To MAX 115 MM
❺ Bumper block / Buffer block
Without Bumper Block
❻ Girdle Hoop / Girdle Ring
With Girdle Hoop :NO Piece of Girdle Hoop
Attention must be paid when installation the air spring
In design when using air spring, attention must be paid make sure there are no sharp edges will contact the flexible member air spring for the whole trip. This must be verified maximum inflation and zero pressure operation especially for the leaf and sleeves rolled leaf spring is the gap in menisci and piston supports the reduce surface pressure decreases. Space envelope outside of the air springs have to clear the maximum air spring two inches in diameter (inch) to allow normal growth and deformity deviation.
The structure of the industrial air spring element:
❶ screw bolt / Stud - Produced as a permanent part of the Cover Plate assembly for maximum strength and durability. It is used to attach the air spring to the vehicle’s suspension system.
❷ Combined link rod / Combo Stud – Used as the dual purpose of installing the air spring to the suspension system and providing the air inflation.
❸Nut / Blind Nut – As well a permanent part of the Cover Plate assembly. Provides an alternative to bolt installation system. It is inside defect within the iron plate
❹ Gas Hole / Air inlet / Air Fitting – Most usually 1/4 N.P.T. which provides the air entrance to the rubber bellows.
❺ Cover Plate - Curled up to more durable bellows design and the largest quality control in the factory. Allows 100% of the leak test before shipment.
❻Rubber Bellows - Air Bellows includes four layers of materials: an inner layer, two layer cord - reinforced fabrics, and a cover. Construction of a natural rubber provides – 65F functional properties.
❼ Bumper block / Buffer block - Solid rubber or engineering plastic device designed to prevent major damage to the vehicle or suspension in the event of a sudden loss of air pressure in the spring.
❽ Bottom Piston - Provides a low installation of air spring. To control the pressure in a changing under the load characteristics of spring.
❾ Piston Bolt - Connecting the piston to the bellows. Sometimes extensions as an additional vehicle suspension spring.
❿ Girdle Hoop / Girdle Ring - Molded wire-wound ring to provide lateral stability of the complex type spring bellows.
Composite Piston - GUOMAT provides a composite of glass fiber reinforced plastic piston into the reversible sleeve spring bus suspensions.
| Description | Assembly Order No. | |
| Style 131 | Blind nuts, 1/4 BSP | W01-M58-6155 |
| Socket head aluminum bead rings (bolts, nuts, washers not included–use M6 cap screws) | W01-358-0127 | |
| Two Ply Bellows | ||
| Rubber bellows only | W01-358-0131 |
| Style Number | Design Height | Load (at Design Height) at: | Natural Frequency | % of Isolation at Forced Frequency | ||||
| ••40 PSIG (pounds) | 60 PSIG (pounds) | 80 PSIG (pounds) | (@ 80 PSIG) fn(cpm) | 400 CPM % | 800 CPM % | 1500 CPM % | ||
| SINGLE CONVOLUTION | ||||||||
| 16 | 3.0 | 420 | 640 | 880 | 237 | 90.3 | 97.4 | |
| 131 | 3.5 | 550 | 850 | 1,170 | 181 | 74.4 | 94.6 | 98.5 |
| 160 | 5.5 | 650 | 1,010 | 1,390 | 124 | 89.4 | 97.5 | 99.3 |
| 110 | 4.5 | 650 | 1,010 | 1,390 | 162 | 80.2 | 95.7 | 98.8 |
| 116 | 4.5 | 850 | 1,330 | 1,830 | 163 | 80.2 | 95.7 | 98.8 |
| 116-1 | 5.5 | 940 | 1,410 | 1,930 | 139 | 86.3 | 96.9 | 99.1 |
| 115 | 4.5 | 1,210 | 1,880 | 2,540 | 151 | 83.4 | 96.3 | 99.0 |
