Place of Origin: | China |
Brand Name: | GUOMAT |
Certification: | ISO/TS16949:2009 |
Model Number: | 1F6974 |
Minimum Order Quantity: | Negotiable |
---|---|
Price: | Negotiable |
Packaging Details: | strong carton box or as customers need |
Delivery Time: | 2-8 work days |
Payment Terms: | T/T, Western Union,Paypal or Others |
Supply Ability: | 1000pcs/week |
Material: | Aluminum Alloy And Rubber | GUOMAT: | 1F6974 |
---|---|---|---|
Warranty: | 12 Months | Net Weight: | 1.0 KG |
Other Name: | Air Spring Isolator | Pressure Ability: | 0.2-0.8 M Pa |
Gross Weight: | 1.5 KG | Flange Ring: | Without |
Connection Method: | Flange Connection | ||
High Light: | air suspension parts,convoluted air spring |

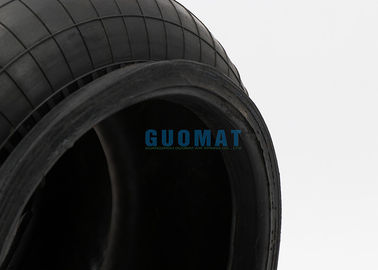

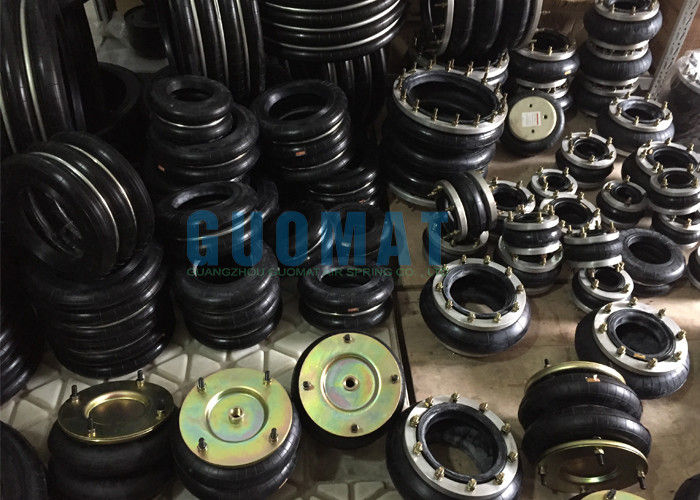

Industrial Air Spring Firestone W01-M58-6974 Style 119 Bead Rings Ribbed Neck Aluminum
Guomat 1F6974 Industrial Single Convoluted Air Spring Specifications
Stroke (MM) 127
Type series / MODEL W01-M58-6974
Style 119
Number of bellows
Min Height (MM) 51 mm
Maximum height (MM) 178 mm
Maximum working height (MM) 160 mm
Maximum capacity (kN) 81 kN
Installation space (mm): 457 mm
Maximum diameter (mm) 442 mm
Weight (KG) 5.98 kg
❶Nut / Blind Nut
The Long Of The Nut:38 mm
Top Cover Plate Screw number: 18 pcs
Bottom Cover Plate Screw number : 18 pcs
Top Cover Plate Screw (Nut) Tooth : M10
Screw Center Distance of Top Cover Plate : 350 mm
Bottom Cover Plate Screw (Nut) Tooth : M10
Screw Center Distance of Bottom Cover Plate : 350 mm
❷ Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : G1/2
❸ Cover Plate
Top Cover Plate Diameter: 384 mm
Bottom Cover Plate Diameter: 384 mm
❹Rubber Bellows
Rubber Bellows MAXl Diameter : 442 mm
Rubber Bellows Natural Height :410 mm
❺ Bumper block / Buffer block
Without Bumper Block
❻ Girdle Hoop / Girdle Ring
Without Girdle Hoop
Style 119 Two Ply Bellows
Ribbed neck aluminum,bead rings (equal spacing),45 mm bolts, nuts, washers:W01-M58-6974
Rubber bellows only:W01 -358-0119;W01 -358-0119;W01 -358-0119
Force to collapse to minimum height (@ 0 BAR):76 N.
The Composition Of Industrial Convoluted Air Spring Element Has The Following Aspects
❶Nut / Blind Nut – As well a permanent part of the Cover Plate assembly. Provides an alternative to bolt installation system. It is inside defect within the iron plate
❷ Gas Hole / Air inlet / Air Fitting – Most usually 1/4 N.P.T. which provides the air entrance to the rubber bellows.
❸ Cover Plate - Curled up to more durable bellows design and the largest quality control in the factory. Allows 100% of the leak test before shipment.
❹Rubber Bellows - Air Bellows includes four layers of materials: an inner layer, two layer cord - reinforced fabrics, and a cover. Construction of a natural rubber provides – 65F functional properties.
❺ Bumper block / Buffer block - Solid rubber or engineering plastic device designed to prevent major damage to the vehicle or suspension in the event of a sudden loss of air pressure in the spring.
❻ Girdle Hoop / Girdle Ring - Molded wire-wound ring to provide lateral stability of the complex type spring bellows.
GUOMAT Air Springs can last at least twice lifetime, always as much as four times longer than steel springs!
