Material: | Aluminum Alloy And Rubber | GUOMAT: | 1F6966 |
---|---|---|---|
Warranty: | 12 Months | Net Weight: | 7.8 KG |
Other Name: | Air Spring Isolator | Pressure Ability: | 0.2-0.8 M Pa |
Gross Weight: | 9.1 KG | Flange Ring: | With |
Connection Method: | Flange Connection | ||
High Light: | air suspension parts,convoluted air spring |

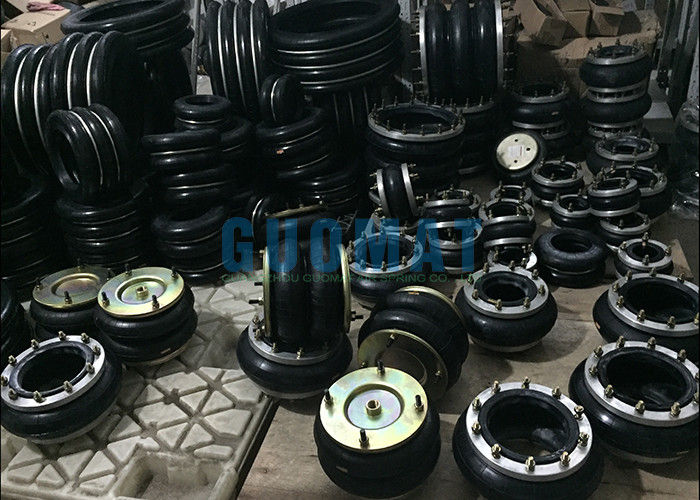

W01-M58-6966 Industrial Air Spring Shocks Firestone Style 121 Bead Rings Ribbed Neck

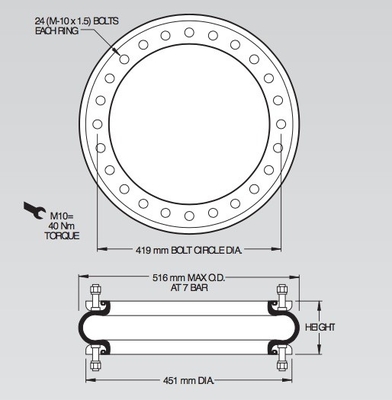

Guomat 1F6966 Industrial Single Convoluted Air Spring Specifications
❶Nut / Blind Nut
The Long Of The Nut:38 mm
Top Cover Plate Screw number: 24 pcs
Bottom Cover Plate Screw number : 24 pcs
Top Cover Plate Screw (Nut) Tooth : M10
Screw Center Distance of Top Cover Plate : 419 mm
Bottom Cover Plate Screw (Nut) Tooth : M10
Screw Center Distance of Bottom Cover Plate : 419 mm
❷ Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : G1/2
❸ Cover Plate
Top Cover Plate Diameter: 451 mm
Bottom Cover Plate Diameter: 451 mm
❹Rubber Bellows
Rubber Bellows MAXl Diameter : 516mm
Rubber Bellows Natural Height :490 mm
❺ Bumper block / Buffer block
Without Bumper Block
❻ Girdle Hoop / Girdle Ring
Without Girdle Hoop
Stroke (MM) 99
Type series / MODELW01-M58-6966
Style 121
Number of bellows
Min Height (MM) 53 mm
Maximum height (MM) 152 mm
Maximum working height (MM) 145 mm
Maximum capacity (kN) 116 kN
Installation space (mm) 531 mm
Maximum diameter (mm) 516 mm
Weight (KG) 7.26 kg
Style 121 Two Ply Bellows
Ribbed neck aluminum,bead rings (equal spacing),45 mm bolts, nuts, washers:W01-M58-6966;W01 M58 6966;W01M586966
Rubber bellows only:W01-358-5135;W01 358 5135;W013585135
Force to collapse to minimum height (@ 0 BAR):90 N.
The Composition Of Industrial Convoluted Air Spring Element Has The Following Aspects
❶Nut / Blind Nut – As well a permanent part of the Cover Plate assembly. Provides an alternative to bolt installation system. It is inside defect within the iron plate
❷ Gas Hole / Air inlet / Air Fitting – Most usually 1/4 N.P.T. which provides the air entrance to the rubber bellows.
❸ Cover Plate - Curled up to more durable bellows design and the largest quality control in the factory. Allows 100% of the leak test before shipment.
❹Rubber Bellows - Air Bellows includes four layers of materials: an inner layer, two layer cord - reinforced fabrics, and a cover. Construction of a natural rubber provides – 65F functional properties.
❺ Bumper block / Buffer block - Solid rubber or engineering plastic device designed to prevent major damage to the vehicle or suspension in the event of a sudden loss of air pressure in the spring.
❻ Girdle Hoop / Girdle Ring - Molded wire-wound ring to provide lateral stability of the complex type spring bellows.
GUOMAT Air Springs can last at least twice lifetime, always as much as four times longer than steel springs!
