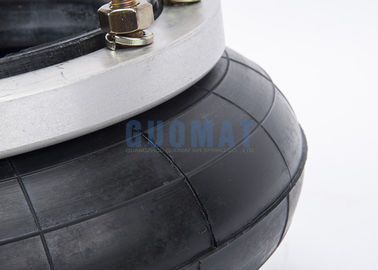

W01-M58-6973 Industrial Air Spring Shocks Firestone Rubber bellows NO. 126 For Large Equipment

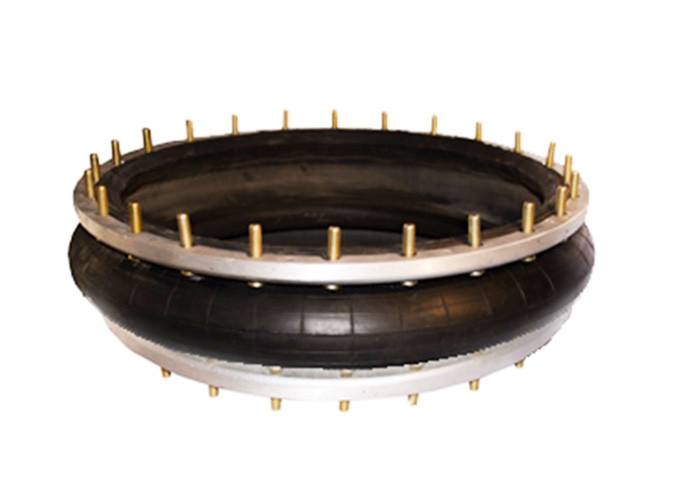

Guomat 1F6973 Industrial Single Convoluted Air Spring Specifications

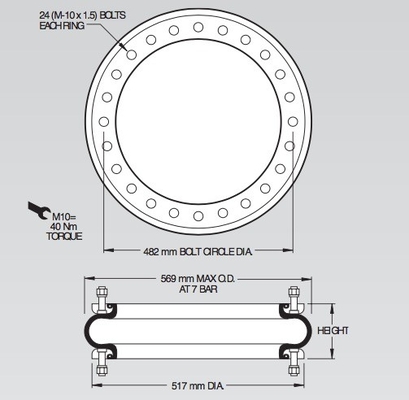

|Aluminum clamping ring:||24 pcs of M10 bolts (tightening torque 40Nm)|
|Bolt diameter Ø:||482 mm|
|Board diameter:||517 mm|
|Max diameter (OD) at 7 bar:||569 mm|
|Min height:||51 mm|
|Max height:||177 mm|
|Max force:||150.66 kN at a height of 60 mm|
❶Nut / Blind Nut
The Long Of The Nut:38 mm
Top Cover Plate Screw number: 24 pcs
Bottom Cover Plate Screw number : 24 pcs
Top Cover Plate Screw (Nut) Tooth : M10
Screw Center Distance of Top Cover Plate : 482 mm
Bottom Cover Plate Screw (Nut) Tooth : M10
Screw Center Distance of Bottom Cover Plate : 482 mm
❷ Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : G1/2
❸ Cover Plate
Top Cover Plate Diameter: 517 mm
Bottom Cover Plate Diameter:517 mm
Rubber Bellows MAXl Diameter : 569mm
Rubber Bellows Natural Height :440 mm
❺ Bumper block / Buffer block
Without Bumper Block
❻ Girdle Hoop / Girdle Ring
Without Girdle Hoop
Style 126 Two Ply Bellows
Ribbed neck aluminum,bead rings (equal spacing),45 mm bolts, nuts, washers:W01-M58-6973;W01 M58 6973;W01M586973
Rubber bellows only:W01-358-1026;W01 358 1026;W013581026
Force to collapse to minimum height (@ 0 BAR):110 N.
The Composition Of Industrial Convoluted Air Spring Element Has The Following Aspects
❶Nut / Blind Nut – As well a permanent part of the Cover Plate assembly. Provides an alternative to bolt installation system. It is inside defect within the iron plate
❷ Gas Hole / Air inlet / Air Fitting – Most usually 1/4 N.P.T. which provides the air entrance to the rubber bellows.
❸ Cover Plate - Curled up to more durable bellows design and the largest quality control in the factory. Allows 100% of the leak test before shipment.
❹Rubber Bellows - Air Bellows includes four layers of materials: an inner layer, two layer cord - reinforced fabrics, and a cover. Construction of a natural rubber provides – 65F functional properties.
❺ Bumper block / Buffer block - Solid rubber or engineering plastic device designed to prevent major damage to the vehicle or suspension in the event of a sudden loss of air pressure in the spring.
❻ Girdle Hoop / Girdle Ring - Molded wire-wound ring to provide lateral stability of the complex type spring bellows.
GUOMAT Air Springs can last at least twice lifetime, always as much as four times longer than steel springs!
