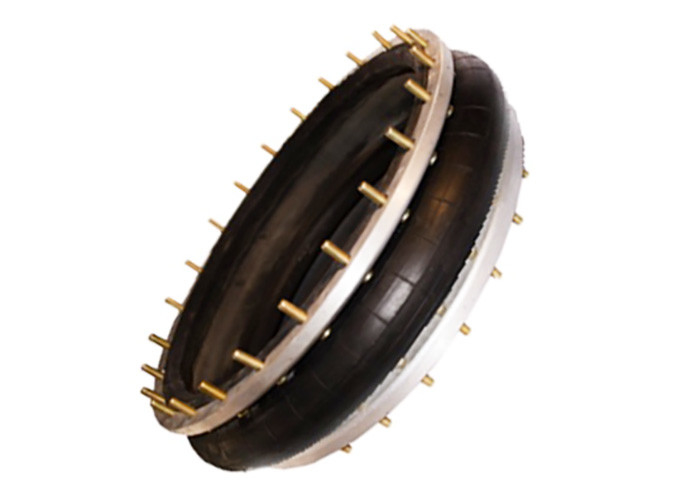

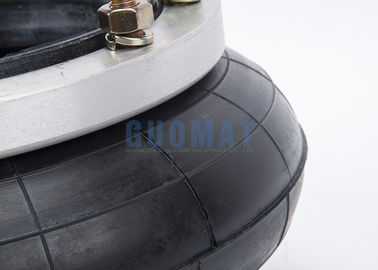

Industrial Style Firestone Air Springs 138-1.5 High Strength Construction W01M586972

Industrial Style Firestone Air Springs 138-1.5 High Strength Construction W01M586972

  • Industrial Style Firestone Air Springs 138-1.5 High Strength Construction W01M586972
  • Industrial Style Firestone Air Springs 138-1.5 High Strength Construction W01M586972
  • Industrial Style Firestone Air Springs 138-1.5 High Strength Construction W01M586972
Industrial Style Firestone Air Springs 138-1.5 High Strength Construction W01M586972
Product Details:
Place of Origin: China
Brand Name: GUOMAT
Certification: ISO/TS16949:2009
Model Number: 1F6972
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: strong carton box or as customers need
Delivery Time: 2-8 work days
Payment Terms: T/T, Western Union,Paypal or Others
Supply Ability: 1000pcs/week
Contact Now
Detailed Product Description
Material: Aluminum Alloy And Rubber GUOMAT: 1F6972
Warranty: 12 Months Net Weight: 11.2 KG
Other Name: High Strength Air Spring Pressure Ability: 0.2-0.8 M Pa
Gross Weight: 12.6 KG Flange Ring: With
Connection Method: Flange Connection
High Light:

air suspension parts

,

convoluted air spring

Industrial Style 138-1.5 High Strength Con-struction W01M586972 Firestone Air Springs​





Guomat 1F6972 Industrial Single Convoluted Air Spring Specifications



Nut / Blind Nut

The Long Of The Nut:38 mm

Top Cover Plate Screw number: 32 pcs

Bottom Cover Plate Screw number : 32 pcs

Top Cover Plate Screw (Nut) Tooth : M10

Screw Center Distance of Top Cover Plate : 596 mm

Bottom Cover Plate Screw (Nut) Tooth : M10

Screw Center Distance of Bottom Cover Plate : 596 mm



Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet : G1/2



Cover Plate

Top Cover Plate Diameter: 638 mm

Bottom Cover Plate Diameter:638 mm



Rubber Bellows

Rubber Bellows MAXl Diameter : 709mm

Rubber Bellows Natural Height :680 mm



Bumper block / Buffer block

Without Bumper Block



Girdle Hoop / Girdle Ring

Without Girdle Hoop

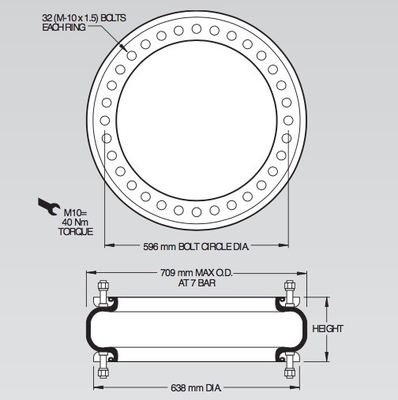

Product Specifications
Type: 138-1.5 high strength
Aluminum clamping ring: 32PCS M10 bolts (tightening torque 40Nm)
Bolt diameter Ø: 596 mm
Board diameter: 638 mm
Maximum diameter at 7 bar: 709 mm
Minimum height: 51 mm
Maximum height: 215 mm
Stroke: 164 mm
Maximum force: 249.69 kN at 60 mm height





Style 138-1.5 High Strength Con-struction



Ribbed neck aluminum,bead rings (equal spacing),45 mm bolts, nuts, washers:W01-M58-6972;W01 M58 6972;W01M586972
Rubber bellows only:W01-358-0147;W01 358 0147;W013580147
Force to collapse to minimum height (@ 0 BAR):670 N.





The Composition Of Industrial Convoluted Air Spring Element Has The Following Aspects





Nut / Blind Nut – As well a permanent part of the Cover Plate assembly. Provides an alternative to bolt installation system. It is inside defect within the iron plate



Gas Hole / Air inlet / Air Fitting – Most usually 1/4 N.P.T. which provides the air entrance to the rubber bellows.



Cover Plate - Curled up to more durable bellows design and the largest quality control in the factory. Allows 100% of the leak test before shipment.



Rubber Bellows - Air Bellows includes four layers of materials: an inner layer, two layer cord - reinforced fabrics, and a cover. Construction of a natural rubber provides – 65F functional properties.



Bumper block / Buffer block - Solid rubber or engineering plastic device designed to prevent major damage to the vehicle or suspension in the event of a sudden loss of air pressure in the spring.



Girdle Hoop / Girdle Ring - Molded wire-wound ring to provide lateral stability of the complex type spring bellows.





GUOMAT Air Springs can last at least twice lifetime, always as much as four times longer than steel springs!





  • They almost do not need to maintain.
  • Increase the service life of tires and brake pads.
  • Let you pull anything; Eliminate expensive admission cost.
  • Greatly reduce the breakage of the other vehicle components and maintenance.
  • Back to you in the scrappage, truck and trailer with air suspension is more valuable.
  • Allow the perfect load balancing between axles; Allow you to run in one of the largest legal restrictions.
  • Reduce the discomfort and driver fatigue risk; Improve the efficiency of the driver's safety, and loyalty
  • To provide smooth to load, reduce the cost of expensive insurance claims and packaging.



Industrial Style Firestone Air Springs 138-1.5 High Strength Construction W01M586972 0

Industrial Style Firestone Air Springs 138-1.5 High Strength Construction W01M586972 1
