| Place of Origin: | Guangdong,China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 2B6160 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | strong carton box or as customers need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union,Paypal or Others |
| Supply Ability: | 1000pcs/week |
| Material: | Steel Cover Plate , Rubber Bellows | Pressure Ability: | 0.2-0.8 MPa |
|---|---|---|---|
| Firestone: | W01M586160 | GUOMAT NO.: | 2B6160 |
| Package Size: | 16*16*16 Cm | G.W.: | 1.7KG |
| High Light: | air suspension parts,convoluted air spring |
||

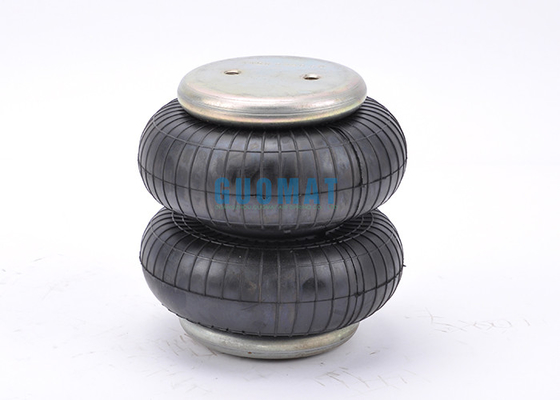

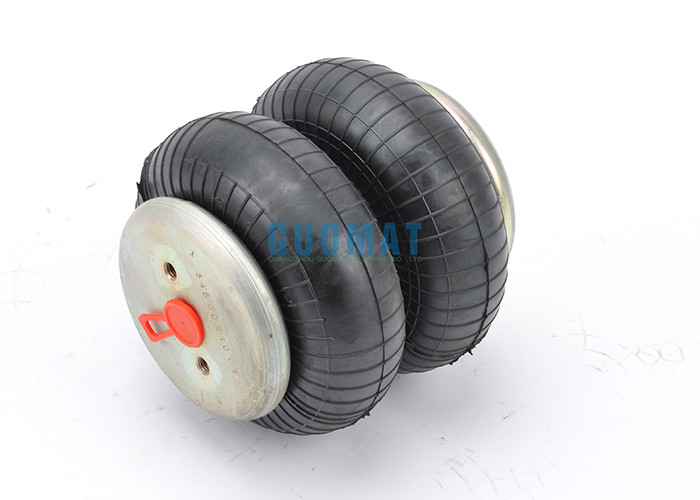

W01M586160 Firestone Industrial Air Bags Rubber Bellows NO. 25 Double Convoluted Air Bag

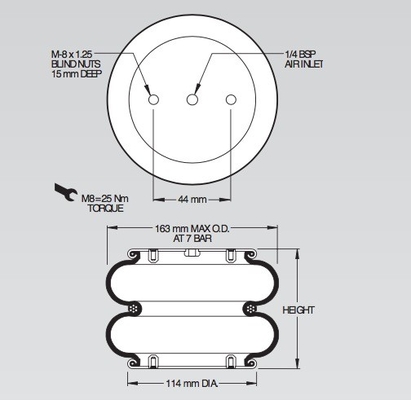

GUOMAT NO. 2B6160 Specifications and Detail Technical Parameters
❶Nut / Blind Nut
Top Cover Plate Screw (Nut) Tooth : 2 pcs X M8X1.25
Screw Center Distance of Top Cover Plate : 44.5 mm
Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X M8X1.25
Screw Center Distance of Bottom Cover Plate : 44.5 mm
❷ Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : G1/4
❸ Cover Plate
Top Cover Plate Diameter (Width): 114 mm
Bottom Cover Plate Diameter (Width): 114 mm
❹Rubber Bellows
Rubber Bellows Natural Diameter : 146 mm
Rubber Bellows MAX Diameter : 163 mm
Installation Space Diameter : 180 mm
Rubber Bellows Natural Height : 162 mm
❺ Bumper block / Buffer block
Without Bumper Block
❻ Girdle Hoop / Girdle Ring
With Girdle Hoop :One Pieces of Girdle Hoop
Style 25 Two Ply
Blind nuts, 1/4 BSP:W01-M58-6160;W01 M58 6160;W01M586160
Socket head aluminum bead rings (bolts, nuts, washers not included- use M6 cap screws):W01-358-0030;W01 358 0030;W013580030
Rubber bellows only (no girdle hoop):W01-358-0025;W01 358 0025;W013580025
Force to collapse to minimum height (@ 0 BAR):85 N.
