| Place of Origin: | China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 2B6400 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | strong carton box or as customers need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union,Paypal or Others |
| Supply Ability: | 1000pcs/week |
| Material: | Steel Cover Plate , Rubber Bellows | Firestone: | W01M586400 |
|---|---|---|---|
| Assembly Weight:: | 4.6 Lbs | Maximum Diameter: | 203mm |
| Pressure Ability: | 0.2-0.8 M Pa | Design Height: | 75-230mm |
| Bellows Number: | 224 | ||
| High Light: | air suspension parts,convoluted air spring |
||
W01-M58-6400 Firestone Rubber Air Spring Shock Bellows Number 224 Air Lift Bags

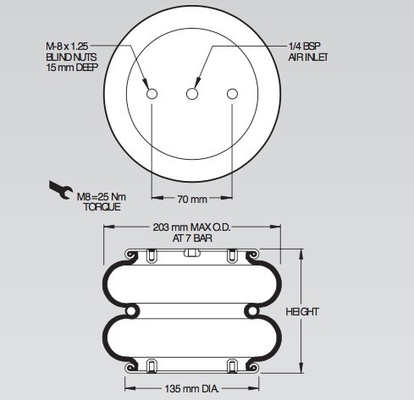

GUOMAT 2B6400 Data
❶Nut/ Blind Nut
Top cover screw (nut) teeth: 2xM8X1.5
Top cover screw center distance: 70 mm
Bottom cover screw (nut) teeth: 2xM8X1.5
Bottom cover screw center distance: 70 mm
❷ air hole / air inlet / air connector
Air vent / air inlet: 1 / 4 NPTF
Screw center distance between air vent and nut: 35 mm
❸ cover
Top cover diameter (width): 132 mm / 5.31 inches
Bottom cover diameter (width): 132 mm 5.31 inches
❹Rubber bellows
Rubber bellows MAX diameter: 203 mm
Working stroke: MIN 75 mm to MAX 230 mm
Maximum height: 230 mm
Minimum height (compression height): 75 mm / 2.75 inches
Stroke height: 155 mm
❺ bumper block / buffer block
No Bumper Block
Twisted waist/waist ring
Belt hoop: a band loop
GUOMAT 2B6400 Specifications
Firestone Bellows Number: 224
Goodyear Part Number: 2B7-540
Goodyear Part Number:2B7 540
Goodyear Part Number:2B7540
American Carrier Number: 8003-009
Firestone Part Number: W01-M58-6400
Firestone Part Number:W01 M58 6400
Firestone Part Number:W01M586400
Bellows #: 224
Assembly Weight: 4.6 lbs
Design Height: 6-7 inches
Loading Capacity at 20 psig: 342 lbsf
Loading Capacity at 60 psig: 1,026 lbsf
Loading Capacity at 90 psig: 1,539 lbsf
Maximum Diameter: 8 inches
Operating Temperature: 56Cº to -53Cº

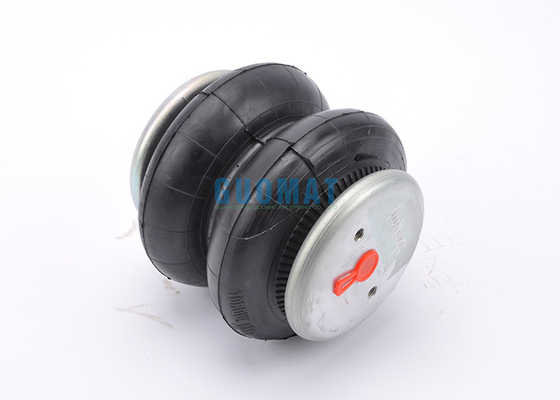

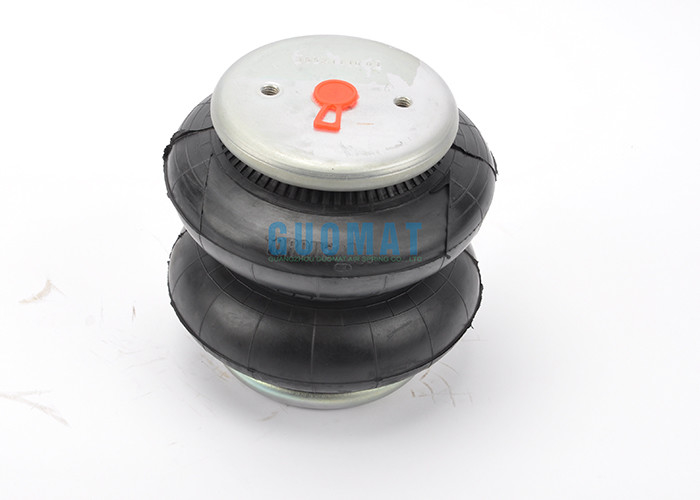

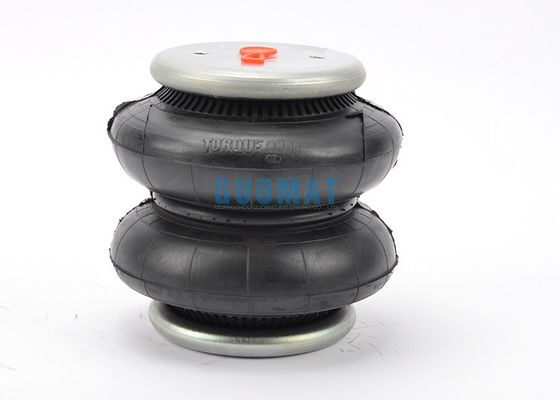

GUOMAT 2B6400 Picture:
