| Place of Origin: | China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 1B14-372 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | strong carton box or as customers need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union,Paypal or Others |
| Supply Ability: | 1000pcs/week |
| Material: | Steel Cover Plate , Rubber Bellows | Firestone: | W01-M58-6369 |
|---|---|---|---|
| GoodYear Bellows#: | 1B14-372 | Gas Hole / Air Inlet: | 3/4NPT |
| Top Cover Plate Diameter (Width): | 289 Mm | Nut: | 159mm |
| High Light: | air suspension parts,convoluted air spring |
||

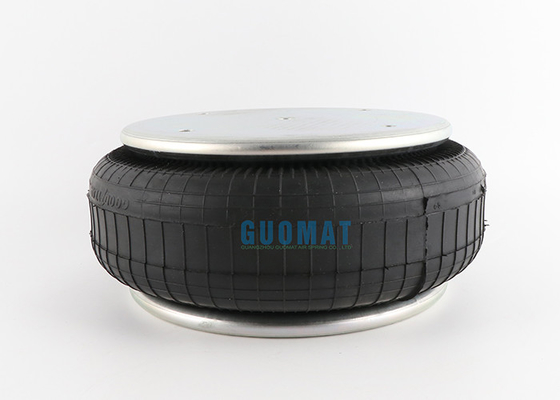

Enidine Air Spring YI-1B14-372 Imported from America For Reciprocating Engines
ITT Enidine Air Spring YI-1B14-372
Wo1-M58-6369
Wo1-M58- 6369113-1 Firestone Metric
Convolution air spring
Wo1-M58-6371 1/4 Wo1-M58-6369 3/4 Wo1-M58-
7539

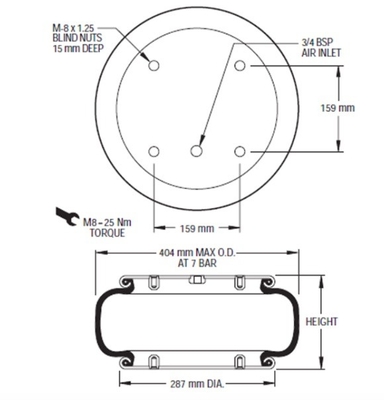

Firestone No Load / Stroke Actuator WO1-M58-
6369, Metric 8 x 1.25 Blind Nut, 3/4 BSP-
Empty stroke actuator
Maximum diameter @ 7 Bar (mm) 404
Maximum height (mm) 51
Stroke (mm) 117
Minimum usable height (mm) 168
KN force in 5 bar at 50% of maximum stroke
37.1
KN force at 5 Bar
22.2
Style Cross Reference High Intensity Style Number 128-1
Material 2-layer standard line
❶Nut / Blind Nut
Top Cover Plate Screw (Nut) Tooth : 2 pcs X M8
Top Cover Plate Combination Nut : 3/4-16UNF
Screw Center Distance of Top Cover Plate : 159 mm
Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X M8
Screw Center Distance of Bottom Cover Plate : 159 mm
❷ Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : 3/4NPT , Combination Stud/Air Inlet Stud
❸ Cover Plate
Top Cover Plate Diameter (Width): 289 mm
Bottom Cover Plate Diameter (Width): 289 mm
❺ Bumper block / Buffer block
Without Bumper Block
❻ Girdle Hoop / Girdle Ring
With Girdle Hoop :no Piece of Girdle Hoop
Pictures show the information includes:
Technical data
Vibration isolation - dynamic characteristic values
Pneumatic application - static characteristic values
| GUOMAT NO. | Reference | Order NO. | Force (lbs) | Max OD (in) | Design height(in) | Height | Narural frequ.[cpm] | ||
| 80 psi | 100 psi | Min | MAX | ||||||
| FD 330 30 323 | FD 330-30 323 | 161314 | 5900 | 7400 | 13.4 | 9 | 3.2 | 14.2 | 95 |
| FD 330 30 340 | FD 330-30 340 | 161315 | 5900 | 7400 | 13.4 | 9 | 4.1 | 14.2 | 95 |
| FD 330 30 369 | FD 330-30 369 | 161316 | 5900 | 7400 | 13.4 | 9 | 3.2 | 14.2 | 95 |
| FD 330 30 370 | FD 330-30 370 | 161317 | 5900 | 7400 | 13.4 | 9 | 4.1 | 14.2 | 95 |
| FD 330 30 371 | FD 330-30 371 | 161318 | 5900 | 7400 | 13.4 | 9 | 3.2 | 14.2 | 95 |
| FD 330 30 372 | FD 330-30 372 | 161319 | 5900 | 7400 | 13.4 | 9 | 4.1 | 14.2 | 95 |
| FD 330 30 373 | FD 330-30 373 | 161320 | 5900 | 7400 | 13.4 | 9 | 3.2 | 14.2 | 95 |
| FD 330 30 464 | FD 330-30 464 | 161321 | 5900 | 7400 | 13.4 | 9 | 3.2 | 14.2 | 95 |
| FD 330 30 502 | FD 330-30 502 | 161322 | 5900 | 7400 | 13.4 | 9 | 4.1 | 14.2 | 95 |
| FD 330 30 512 | FD 330-30 512 | 161323 | 5900 | 7400 | 13.4 | 9 | 4.1 | 14.2 | 95 |
| FD 330 30 513 | FD 330-30 513 | 161324 | 5900 | 7400 | 13.4 | 9 | 4.1 | 14.2 | 95 |
| FD 330 30 549 | FD 330-30 549 | 161325 | 5900 | 7400 | 13.4 | 9 | 4.1 | 14.2 | 95 |
| FD 331 26 480 | FD 331-26 480 | 161030 | 5040 | 6300 | 13.5 | 10.5 | 4.1 | 14.3 | 90 |
| FD 331 26 514 | FD 331-26 514 | 161380 | 5040 | 6300 | 13.5 | 10.5 | 4.1 | 14.3 | 90 |
| FD 331 26 527 | FD 331-26 527 | 161381 | 5040 | 6300 | 13.5 | 10.5 | 4.1 | 14.3 | 90 |
| FD 331 26 541 | FD 331-26 541 | 161382 | 5040 | 6300 | 13.5 | 10.5 | 4.1 | 14.3 | 90 |
| FD 331 26 552 | FD 331-26 552 | 161383 | 5040 | 6300 | 13.5 | 10.5 | 4.1 | 14.3 | 90 |
