| Place of Origin: | China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 3B15-375 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | strong carton box or as customers need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union,Paypal or Others |
| Supply Ability: | 1000pcs/week |
| Material: | Steel Cover Plate , Rubber Bellows | Firestone: | W01-M58-6369 |
|---|---|---|---|
| GoodYear Bellows#: | 3B15-375 | Gas Hole / Air Inlet: | 1/4NPT |
| Top Cover Plate Diameter (Width): | 289 Mm | Nut: | 159mm |
| GoodYear Rubber Bellows: | 578-93-3-377 | ||
| High Light: | air suspension parts,convoluted air spring |
||

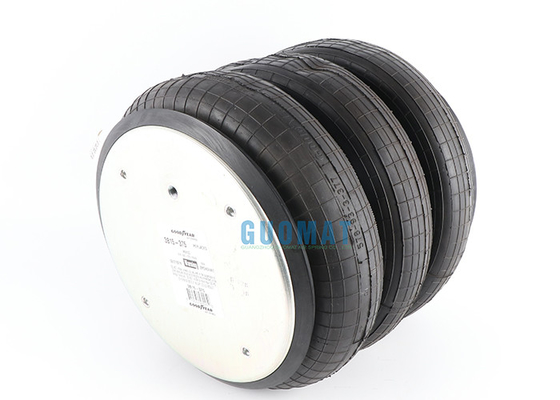

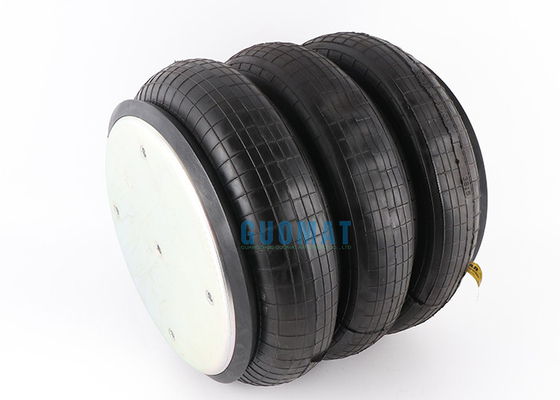

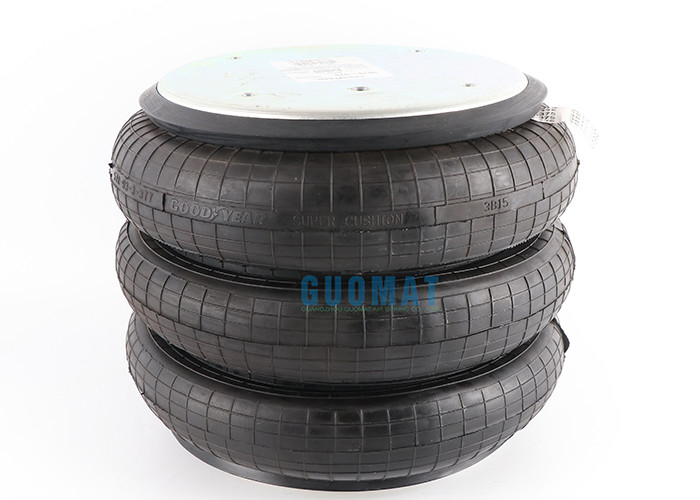

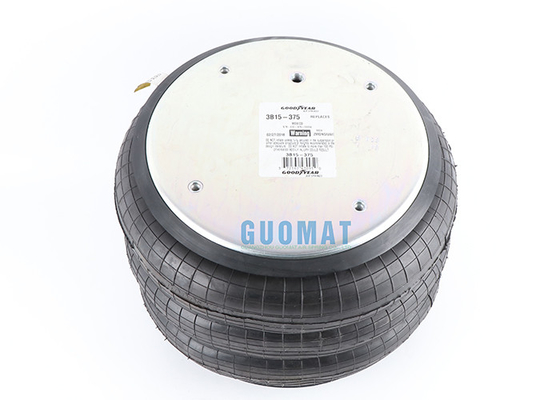

3B15-375 Goodyear 1 /4"-18 NPTF Air Fitting Durable Triple Convoluted Air Bag

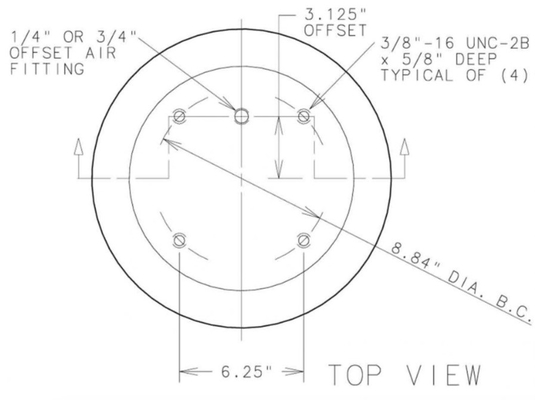

❶Nut / Blind Nut
Top Cover Plate Screw (Nut) Tooth : 4 pcs X 3/8
Top Cover Plate Combination Nut : 3/4-16UNF
Screw Center Distance of Top Cover Plate : 159 mm
Bottom Cover Plate Screw (Nut) Tooth : 4 pcs X 3/8
Screw Center Distance of Bottom Cover Plate : 159 mm
❷ Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : 3/4NPT , Combination Stud/Air Inlet Stud
❸ Cover Plate
Top Cover Plate Diameter (Width): 289 mm
Bottom Cover Plate Diameter (Width): 289 mm
❺ Bumper block / Buffer block
Without Bumper Block
❻ Girdle Hoop / Girdle Ring
With Girdle Hoop :no Piece of Girdle Hoop
GUOMAT air springs are extremely durable and precise
Engineering design and cost-effectiveness for a variety of actuation and vibration isolation applications.
GUOMAT air springs have a time-tested design that combines
Fabric-reinforced or natural rubber flexible member structure
And corrosion-resistant end fixtures for superior quality and performance
can. As an actuator, GUOMAT air springs are available in linear or angular
motion.
Compared to cylinders, these air springs (air shock absorbers) provide
Desired stroke compression height ratio, and they can accept multiple actuation media
Quality, such as air, water, nitrogen, or antifreeze. As an isolator,
GUOMAT air springs effectively reduce the harmful effects of vibration. They can
To simultaneously isolate vibration and adjust the load height, and allow
Keep-induced vibration isolation under load.
GUOMAT offers a variety of air springs and air alkaline shakers
Type to meet your actuation or isolation needs. Single, double and trilogy
Face, film and sleeve types are available in a variety of sizes
Your specific installation requires an end retainer style.
In addition to our range of air springs, we also offer a variety of industrial shock absorbers
, Wire rope isolators, and many other energy and vibration absorption solutions
Solution.

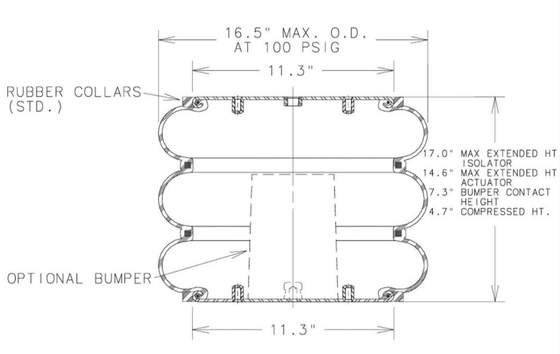

| ASSEMBLY NUMBER | EL ASTOMER | AIR FITTING | BUMPER INCLUDED |
| 3B15-375 | NAT .RUBBER | 1 /4"-18 NPTF OFFSET 3. 125 | NO |
| 3B15-376 | NAT .RUBBER | 1 /4"-18 NPTF OFFSET 3. 125 | YES |
| 3B15-377 | NAT .RUBBER | 3/4"-14 NPTF OFFSET 3. 125 | NO |
| 3B15-378 | NAT .RUBBER | 3/4"-14 NPTF OFFSET 3. 125 | YES |
| FLEXMEMBER ONLY 578933377 | NAT .RUBBER |
