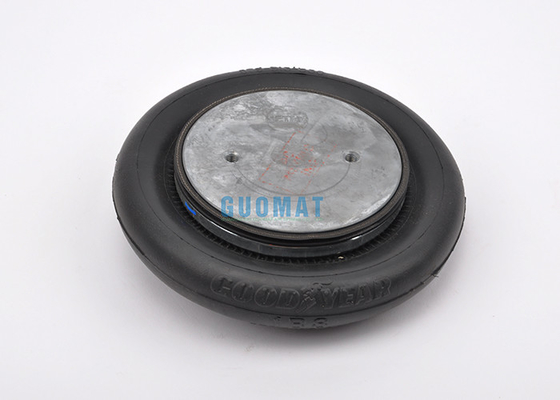

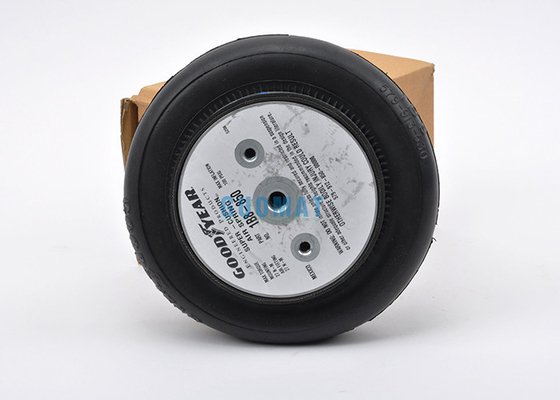

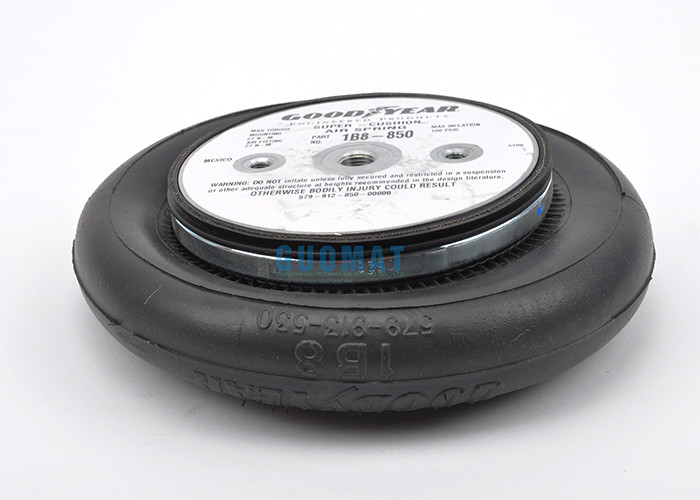

Goodyear Air Spring 1B8-850 Made in Mexico 579-913-530 Spring Isolators

Name: Goodyear Air Spring 1B8-850 Made in Mexico 579-913-530 Spring Isolators
Brand: Goodyear
SKU: 1B8-850
Rating: 4.6 (190 reviews)

Product Details:

Place of Origin:	China
Brand Name:	Goodyear
Certification:	ISO/TS16949:2009
Model Number:	1B8-850

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	strong carton box or as customers need
Delivery Time:	2-8 work days
Payment Terms:	T/T, Western Union,Paypal or Others
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Material:	Rubber Steel	Goodyear:	1B8-850
Warranty:	12 Months	Weight:	1.6 Kg
Other Name:	Industrial Air Actuator	Pressure Ability:	0.2-0.8 M Pa
Screw:	2XM8-16UNC	Air Inlet:	1/4 NPT Or 3/4
High Light:	air suspension parts , convoluted air spring

Goodyear Air Spring 1B8-850 Made in Mexico 579-913-530 Spring Isolators

Product Description

Technical Data

SPRING FEATURES:
. LOAD RANGE ( ISOL ATOR)............. .320-2900 Ib
. DESIGN HE I GHT RANGE
( ISOL .ATOR)....3.75-4.75 in
. USEABLE STROKE w/o BUMPER ( ACTUATOR).. . .3.3 in
. USEABLE STROKE WITH BUMPER ( ACTUATOR). . .3.0 in
. ASSEMBLY WEIGHT w/o BUMPER. .............4.7 Ib
. TEMPERATURE RANGE .
. FORCE TO COMPRESS AT 0 PSIG ( APPROX.)....25 1b
NOMINAL FREE STANDING HT. AT 0 PSIG.....2.3 in

OEM Original Equipment Manufacturer:1B8-850

ASSEMBLY NUMBER

Goodyear part no.:1B8- 550
Goodyear part no.:1B8-552
Goodyear part no.:1B8-553
Goodyear part no.:1B8- 554

Goodyear Air Spring 1B8- 850 Made in Mexico 579-913-530 Made in Mexico
Goodyear original single vibration industrial air spring 1B8-850 air suspension system

Wo1-M58-6166 Firestone Metric Single Convolution Air Spring
Wo1-M58-6166, Wo1M586166, WO1-M58-6166, WO1M586166
Firestone actuator WO1-M58-6166, Metric 8 X 1.25 Dark Nut, 1/4 BSP

German horse brand airbag FS 120-9 1/4 M8 German ContiTech air spring
1B8-850 Goodyear Air Spring Single Airbag 579913530
Anliding air spring YI-1B8-850 YM-1B8-850 579 913 530
SUPER-CUSHION @ AIR SPRING ISOLATORS 1B8-850

ContiTech FS 120-10 CI G 1/4

ContiTech FS120-10 CI G 1/4

PNEUMATIC APPLICATION – STATIC CHARACTERISTIC VALUES

Force F [lbf]
Pressure p [psi]	40	60	80	100	Vol. V [in.³]
H 4.50 in./114.3MM	728	1130	1570	1970	110
H 4.00 in./101.6MM	905	1400	1940	2390	100
H 3.50 in./88.9MM	1050	1610	2240	2740	90
H 3.00 in./76.2MM	1170	1770	2450	3020	75
H 2.50 in./63.5MM	1270	1900	2630	3260	57

VIBRATION ISOLATION – DYNAMIC CHARACTERISTICS

Pressure p [psi]	40	60	80	100	120	Vol. V [in.³]
Force (load) F [lbf]	801	1,240	1,700	2,130	2,530	110
Spring rate c [lbf/in]	709	949	1,190	1,430	1,670	110
Natural Frequency f0 [Hz]	2.9	2.8	2.7	2.6	2.6	110
Design height H: recommended 4.33 inch, minimum 3.54 inch

PURCHASE ORDER DATA

Type

Air Inlet

Order No.

with crimped plates

3/4 NPT

0 in. excentrical

75349

with crimped plates

1/4 NPT

0 in. excentrical

75360

SERVICE INSTRUCTIONS

Thread	max. Torque
	3/8-16 UNC	20 lbf ft
	1/4 NPT	20 lbf ft
	3/4 NPT	40 lbf ft

The below of air spring we have in stock now.

Product Code	Product Name	Product Specification
566 038 015 00004	Rubber bellows	FM8015
566 242 092 00004	air spring	1R12-092
567 242 658 00004	air spring	1R12-658
566 242 102 85000	air spring	1R12-1028
566 242 541 00000	air spring	1R12-541
566 262 039 00004	air spring	1R13-039
566 262 118 00000	air spring	1R13-118
566 262 239 00004	air spring	1R13-239
566 282 028 00004	air spring	1R14-028
566 282 198 00004	air spring	1R14-198
566 282 201 00000	air spring	1R14-201
566 282 234 00000	air spring	1R14-234
566 282 235 00004	air spring	1R14-235
566 282 240 00004	air spring	1R14-240
578 912 215 00000	air spring	1B9-215
578 912 313 00000	air spring	1B12-313
578 912 318 00000	air spring	1B12-318
578 912 371 00000	air spring	1B14-371
578 912 372 00000	air spring	1B14-372
578 912 375 00004	air spring	1B15-375
578 922 200 00000	air spring	2B9-200
578 922 223 00000	air spring	2B9-223
578 922 273 00000	air spring	2B9-273
578 922 346 00000	air spring	2B12-346
578 922 354 00004	air spring	2B14-354
578 922 375 00000	air spring	2B15-375
578 922 377 00000	air spring	2B15-377
578 922 468 00004	air spring	2B14-468
578 932 300 00004	air spring	3B12-300
578 932 304 00004	air spring	3B12-304
578 932 320 00004	air spring	3B12-320
578 932 325 00004	air spring	3B12-325
578 932 375 00000	air spring	3B15-375
579 080 007 00000	air spring	1S4-007
579 160 003 00004	air spring	1S8-003
579 912 544 00000	air spring	1B7-544
579 912 560 00000	air spring	1B8-560
579 912 800 00000	air spring	1B5-800
579 912 833 00000	air spring	1B6-833
579 912 850 00000	air spring	1B8-850
579 922 550 00004	air spring	2B8-550
579 922 833 00000	air spring	2B6-833
579 922 850 00000	air spring	2B8-850
579 922 535 00004	air spring	2B6-535

Goodyear Air Spring 1B8-850 Made in Mexico 579-913-530 Spring Isolators 0

Goodyear Air Spring 1B8-850 Made in Mexico 579-913-530 Spring Isolators 1

1B8-550	20095515	N	1B8-550	1B8-550
57991255000019	20095516	Y	ENIDINE YI-1B8-550	ENIDINE YI-1B8-550
1B8-552	20095517	N	1B8-552	1B8-552
57991255200019	20095518	Y	ENIDINE YI-1B8-552	ENIDINE YI-1B8-552
1B8-553	20095519	N	1B8-553	1B8-553
57991255300019	20095520	Y	ENIDINE YI-1B8-553	ENIDINE YI-1B8-553
1B8-554	20095521	N	1B8-554	1B8-554
57991255400019	20095522	Y	ENIDINE YI-1B8-554	ENIDINE YI-1B8-554
1B8-555	20095523	N	1B8-555	1B8-555
1B8-556	20095524	N	1B8-556	1B8-556
1B8-560	20095526	N	1B8-560 EXT	1B8-560 EXT
57991256000019	20095527	Y	ENIDINE YI-1B8-560	ENIDINE YI-1B8-560
1B8-561	20095528	N	1B8-561 AIR LIFT 58124	1B8-561 AIR LIFT 58124
1B8-562	20095529	N	1B8-562	1B8-562
57991256200019	20095530	Y	ENIDINE YI-1B8-562	ENIDINE YI-1B8-562
1B8-563	20095531	N	1B8-563	1B8-563
57991256300019	20095532	Y	ENIDINE YI-1B8-563	ENIDINE YI-1B8-563
57991256400000	20095533	Y	1B8-564	1B8-564
1B8-564	20449825	N	1B8-564 Bellows Air Spring	1B8-564 Bellows Air Spring
57991256400019	20095534	Y	ENIDINE YI-1B8-564	ENIDINE YI-1B8-564
57991256400042	20141113	Y	1B8-564 INTERNATIONAL 3547005C1	1B8-564 INTERNATIONAL 3547005C1
1B8-565	20248442	N	1B8-565	1B8-565
57991256700090	20810735	Y	C 1B8-560	C 1B8-560
57991256800091	20810607	Y	P 1B8-560	P 1B8-560
57991256900091	20811403	Y	P 1B8-550	P 1B8-550
57991257000090	20811604	Y	C 1B8-562	C 1B8-562
57991257100090	20811605	Y	C 1B8-564	C 1B8-564
