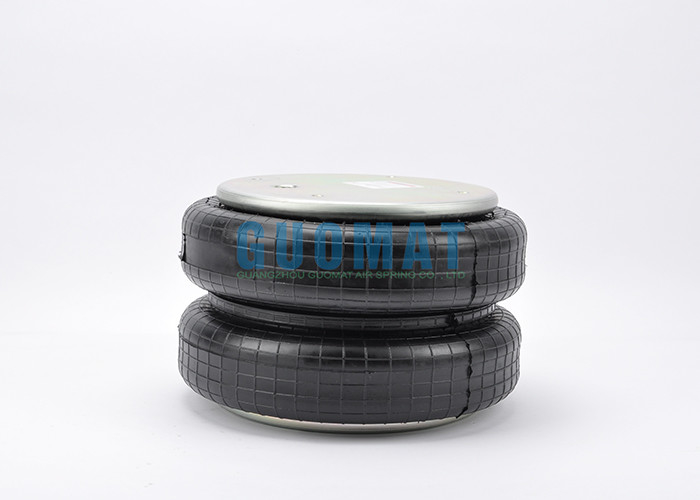

W01M586384 Two Ply Bellows Metric Air Spring For Tensioning Station No. 22-1.5 Assembly

W01M586384 Two Ply Bellows No. 22-1.5 Assembly Weight 6.0KG Metric Air Spring For Tensioning Station

GUOMAT 2B6384 Technical parameters

❶Nut / Blind Nut

Top Cover Plate Screw (Nut) Tooth : 2pcsXM8X1.25

Screw Center Distance of Top Cover Plate : 157 mm

Bottom Cover Plate Screw (Nut) Tooth : 2pcsXM8X1.25

Screw Center Distance of Bottom Cover Plate : 157 mm

❷ Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet : 1/4-18NPTF

Screw Center Distance Between Gas Hole and Nut : 73 mm

❸ Cover Plate

Top Cover Plate Diameter: 229mm

Bottom Cover Plate Diameter: 229mm

❹Rubber Bellows

Rubber Bellows MAX Diameter: 348 mm

Rubber Bellows Natural Diameter : 320 mm

The Working Stroke : MIN 77 mm to MAX 330 mm

Maximum Height : 330mm

Minimum Height :77mm

Stroke Height : 253 mm

❺ Bumper block / Buffer block

Without Bumper Block

❻ Girdle Hoop / Girdle Ring

With Girdle Hoop :One Pieces of Girdle Hoop

OEM Original Equipment Manufacturer:

Firestone 22-1.5,
Goodyear Part # 2B12-344
Firestone W01-M58-6384;W01 M58 6384;W01M586384

The usal kinds of Double Convolution Air Springs

Style 22-1.5 Two Ply

Blind nuts, 1/4 BSP:W01-M58-6384;W01 M58 6384;W01M586384


Blind nuts, 3/4 BSP:W01-M58-6383;W01 M58 6383;W01M586383


Rubber bellows only:W01-358-0259;W01 358 0259;W013580259

Assembly weight (bead plate version, no bumper):6.0 kg.

Force to collapse to minimum height (@ 0 BAR):116 N.
