| Material: | Steel And Rubber | FIRESTONE: | W01M586114 |
|---|---|---|---|
| Warranty: | 12 Months | Weight: | 8.0kg |
| Other Name: | Rubber Air Actuator | Pressure Ability: | 0.2-0.8 M Pa |
| Screw (Nut) Tooth: | 2pcsXM8X1.25 | Gas Hole: | 1/4NPTF |
| High Light: | air helper springs,air suspension parts |
||

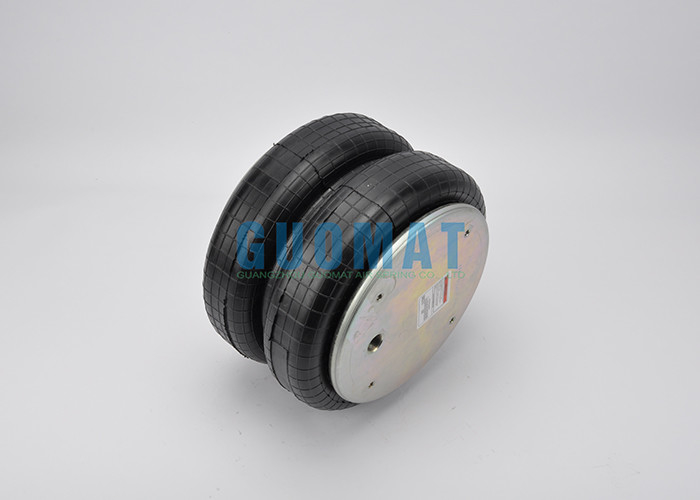

W01-M58-6114 Firestone Metric 8 X 1.25 BLIND NUTS, 1/4 BSP-OFFSET Double Convolution Air Spring

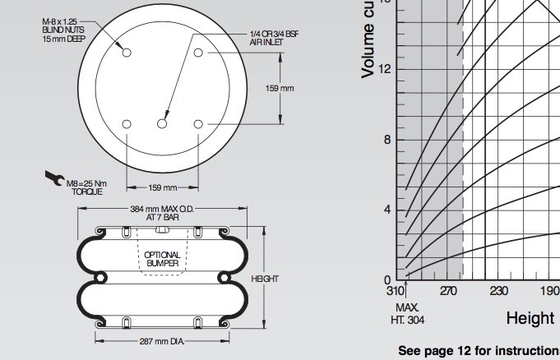

GUOMAT 2B6114 Technical parameters
❶Nut / Blind Nut
Top Cover Plate Screw (Nut) Tooth : 2pcsXM8X1.25
Screw Center Distance of Top Cover Plate : 159 mm
Bottom Cover Plate Screw (Nut) Tooth : 2pcsXM8X1.25
Screw Center Distance of Bottom Cover Plate :159 mm
❷ Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : 1/4-18NPTF
Screw Center Distance Between Gas Hole and Nut : 79.5 mm
❸ Cover Plate
Top Cover Plate Diameter: 287mm
Bottom Cover Plate Diameter: 287mm
❹Rubber Bellows
Rubber Bellows MAX Diameter: 384 mm
Rubber Bellows Natural Diameter : 320 mm
The Working Stroke : MIN 77 mm to MAX 304 mm
Maximum Height : 304mm
Minimum Height :77mm
Stroke Height : 237 mm
❺ Bumper block / Buffer block
Without or With Bumper Block
❻ Girdle Hoop / Girdle Ring
With Girdle Hoop :One Pieces of Girdle Hoop
OEM Original Equipment Manufacturer:
Firestone 22-1.5,
Goodyear Part # 2B14-467,2B14 467,2B14467
Firestone W01-M58-6114;W01 M58 6114;W01M586114
The usal kinds of Double Convolution Air Springs
Style 21 Two Ply
Desaiption
Assembly Order No.
Blind nuts, 1/4 BSP:W01-M58-6114
Blind nuts, 1/4 BSP, bumper:W01-M58-6115
Blind nuts, 3/4 BSP:W01-M58-6112
Blind nuts, 3/4 BSP, bumper:W01-M58-6113
Countersunk steel bead rings,40 mm bolts, nuts, washers:W01-M58- 7525
Rubber bellows only:W01-358-0213
Assembly:7.86 KG
Force to collapse to minimum height (@ 0 BAR):98 N.
Style 205 Two Ply :
Blind nuts, 1/4 BSP:W01-M58-6079
Blind nuts, 3/4 BSP:W01-M58-6077
Countersunk steel bead rings,40 mm bolts, nuts & washers I W01-M58- 7536
Rubber bellows only:W01-358-7929
| Maximum Diameter @ 7 Bar (mm) | 384 | Bead plate Type | 2 |
| Maximum Height (mm) | 76 | Dim. A (Blind Nut Centers) (mm) | 159 |
| Maximum Stroke (mm) | 180 | AIRMOUNT ISOLATOR | |
| Minimum Usable Height (mm) | 257 | Design Height (mm) | 241 |
| Force in kN @ 5 Bar at Stroke of 25 mm | 41.5 | Load (at Design Height) at: 3 Bar (kN) | 14.7 |
| Force in kN @ 5 Bar at Stroke of 50% of Max Stroke | 36.7 | Load (at Design Height) at: 5 Bar (kN) | 35.2 |
| Force in kN @ 5 Bar at Stroke of Maximum Stroke | 22.9 | Load (at Design Height) at: 7 Bar (kN) | 36.9 |
| Style Cross-Ref High Strength Style Number | 205 | Natural Frequency (@5 Bar)(fn(Hz) | 1.8 |
| "Style Cross-Ref Extended Height | |||
| (Similar End Closure) Style Number" | 21-2 | % of Isolation at Forced Frequency 7 Hz | 92.8 |
| Material | 2-Ply Standard Cord | % of Isolation at Forced Frequency 13 Hz | 98.3 |
| % of Isolation at Forced Frequency 25 Hz | 99.5 |
