| Place of Origin: | China |
| Brand Name: | Goodyear |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 2B14-468 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | strong carton box or as customers need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union,Paypal or Others |
| Supply Ability: | 1000pcs/week |
| Material: | Steel And Rubber | 2B14-468: | 2B14-468 |
|---|---|---|---|
| Warranty: | 12 Months | Weight: | 8.3kg |
| Other Name: | Rubber Air Actuator | Pressure Ability: | 0.2-0.8 M Pa |
| Screw (Nut) Tooth: | 2pcsXM8X1.25 | Gas Hole: | 3/4NPTF |
| Goodyear Bellows: | 578-92-3-356 | ||
| High Light: | air helper springs,air suspension parts |
||

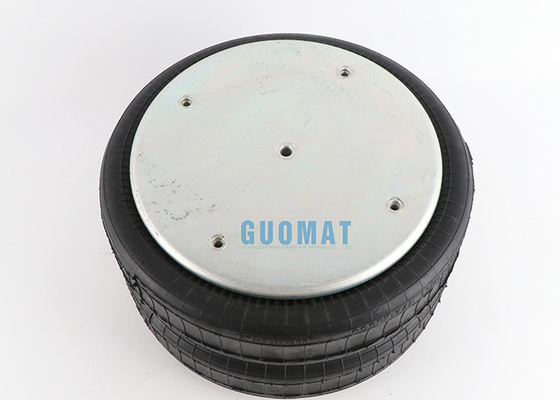

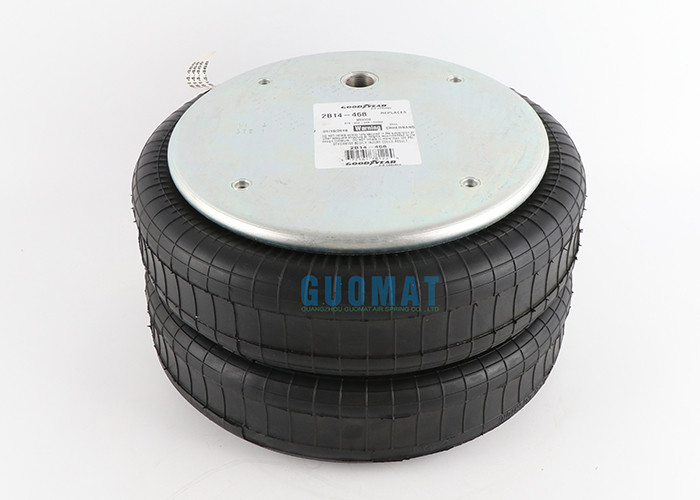

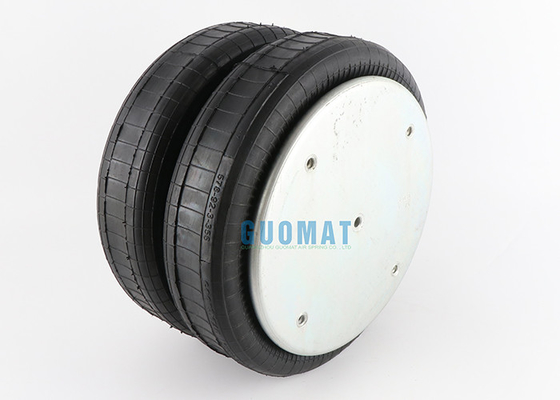

W01-M58-6377 Industrial Air Spring Air Bag Kits 578923356 Goodyear Part 2B14-468

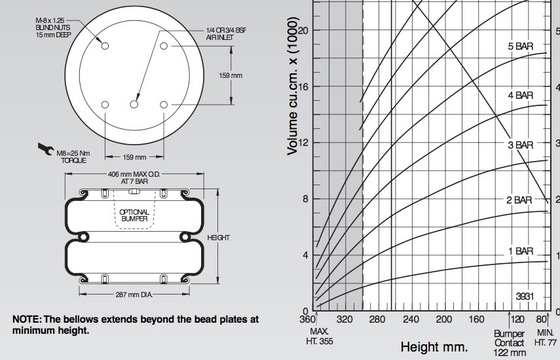

Goodyear Part 2B14-468 Technical parameters
❶Nut / Blind Nut
Top Cover Plate Screw (Nut) Tooth : 4pcsXM8X1.25
Screw Center Distance of Top Cover Plate : 159 mm
Bottom Cover Plate Screw (Nut) Tooth :4pcsXM8X1.25
Screw Center Distance of Bottom Cover Plate :159 mm
❷ Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : 3/4-18NPTF
Screw Center Distance Between Gas Hole and Nut : 79.5 mm
❸ Cover Plate
Top Cover Plate Diameter: 287mm
Bottom Cover Plate Diameter: 287mm

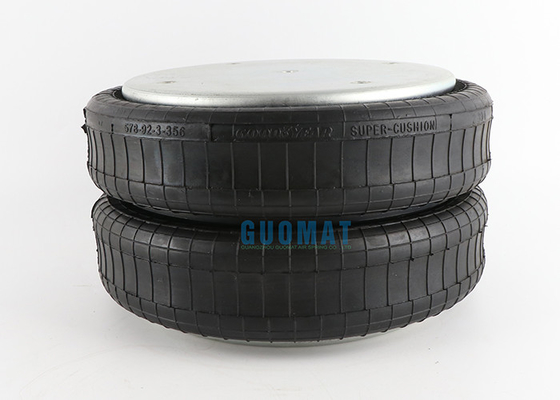

❹Rubber Bellows
Rubber Bellows MAX Diameter: 406 mm
Rubber Bellows Natural Diameter : 320 mm
The Working Stroke : MIN 77 mm to MAX 355 mm
Maximum Height : 355mm
Minimum Height :77mm
Stroke Height : 278 mm
❺ Bumper block / Buffer block
Without or With Bumper Block
❻ Girdle Hoop / Girdle Ring
With Girdle Hoop :One Pieces of Girdle Hoop
| Design Height (mm) | 267 |
| Load (at Design Height) at: 3 Bar (kN) | 16.7 |
| Load (at Design Height) at: 5 Bar (kN) | 39.2 |
| Load (at Design Height) at: 7 Bar (kN) | 41.1 |
| Natural Frequency (@5 Bar)(fn(Hz) | 1.6 |
| % of Isolation at Forced Frequency 7 Hz | 95.6 |
| % of Isolation at Forced Frequency 13 Hz | 98.8 |
| % of Isolation at Forced Frequency 25 Hz | 99.7 |
OEM Original Equipment Manufacturer:
Firestone 22-1,
Goodyear Part # 2B14-468;2B14 468;2B14468
Goodyear bellows # 578-92-3-356;578 92 3 356;578923356
Firestone W01-M58-6377;W01 M58 6377;W01M586377
The usal kinds of Double Convolution Air Springs
Style 21-2 Two Ply
Blind nuts, 1/4 BSP:W01-M58-6377;W01-M58-6377;W01 M58 6377;W01M586377
Blind nuts, 1/4 BSP, bumper:W01-M58-6379;W01 M58 6379;W01M586379
Blind nuts, 3/4 BSP:W01-M58-6378;W01 M58- 6378;W01M586378
Rubber bellows only:W01-358-0140;W01 358 0140;W013580140
Assembly weight (bead plate version, no bumper):8.3kg.
Force to collapse to minimum height (@ 0 BAR):156 N.
