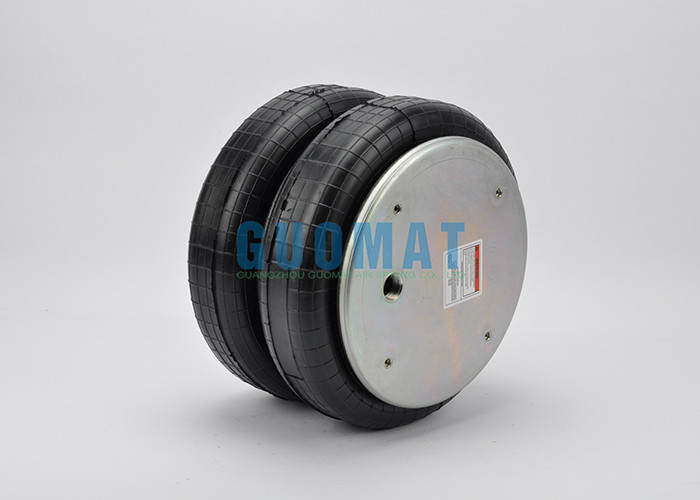

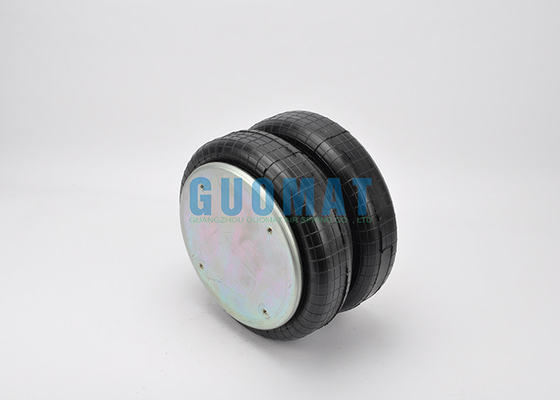

Airstroke W01-M58-6107 Air Bag Kits For Scissors Type Lifting Table

China Airstroke W01-M58-6107 Air Bag Kits For Scissors Type Lifting Table supplier
Airstroke W01-M58-6107 Air Bag Kits For Scissors Type Lifting Table supplier Airstroke W01-M58-6107 Air Bag Kits For Scissors Type Lifting Table supplier Airstroke W01-M58-6107 Air Bag Kits For Scissors Type Lifting Table supplier

Large Image :  Airstroke W01-M58-6107 Air Bag Kits For Scissors Type Lifting Table

Product Details:

Place of Origin: China
Brand Name: GUOMAT
Certification: ISO/TS16949:2009
Model Number: 2B6107

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: strong carton box or as customers need
Delivery Time: 2-8 work days
Payment Terms: T/T, Western Union,Paypal or Others
Supply Ability: 1000pcs/week
Contact Now
Detailed Product Description
Material: Steel And Rubber FIRESTONE: W01-M58-6107
Warranty: 12 Months Weight: 8.9kg
Other Name: Rubber Air Airstroke Pressure Ability: 0.2-0.8 M Pa
Screw (Nut) Tooth: 2pcsXM8X1.25 Gas Hole: 1/4NPTF

Firestone Airstroke W01-M58-6107 Air Bag Kits For Scissors-type Lifting Table





GUOMAT 2B6107 Technical parameters



Nut / Blind Nut



Top Cover Plate Screw (Nut) Tooth : 2pcsXM8X1.25

Screw Center Distance of Top Cover Plate : 159 mm

Bottom Cover Plate Screw (Nut) Tooth : 2pcsXM8X1.25

Screw Center Distance of Bottom Cover Plate :159 mm



Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet : 1/4-18NPTF

Screw Center Distance Between Gas Hole and Nut : 79.5 mm



Cover Plate

Top Cover Plate Diameter: 287mm

Bottom Cover Plate Diameter: 287mm



Rubber Bellows

Rubber Bellows MAX Diameter: 406 mm

Rubber Bellows Natural Diameter : 350 mm

The Working Stroke : MIN 77 mm to MAX 394 mm

Maximum Height : 394mm

Minimum Height :77mm

Stroke Height : 317 mm



Bumper block / Buffer block

Without or With Bumper Block



Girdle Hoop / Girdle Ring

With Girdle Hoop :One Pieces of Girdle Hoop



Design Height (mm) 286
Load (at Design Height) at: 3 Bar (kN) 16.5
Load (at Design Height) at: 5 Bar (kN) 41.4
Load (at Design Height) at: 7 Bar (kN) 43.4
Natural Frequency (@5 Bar)(fn(Hz) 1.4
% of Isolation at Forced Frequency 7 Hz 95.2
% of Isolation at Forced Frequency 13 Hz 98.8
% of Isolation at Forced Frequency 25 Hz

99.7







OEM Original Equipment Manufacturer:


Firestone 233-2,
Firestone W01-M58-6107;W01 M58 6107;W01M586107





The usal kinds of Double Convolution Air Springs



Style 233-2 Two Ply Bellows



Blind nuts, 1/4 BSP
W01-M58-6107;W01 M58 6107;W01M586107

Blind nuts, 3/4 BSP
W01-M58-6109;W01 M58 6109;W01M586109

Assembly :8.9 kg.
Force to collapse to minimum height (@ 0 BAR):156 N.



Airstroke W01-M58-6107 Air Bag Kits For Scissors Type Lifting TableAirstroke W01-M58-6107 Air Bag Kits For Scissors Type Lifting Table
