| Place of Origin: | China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 2H6985 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | strong carton box or as customers need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union,Paypal or Others |
| Supply Ability: | 1000pcs/week |
| Material: | Aluminum Alloy And Rubber | Firestone: | W01M586985 |
|---|---|---|---|
| Warranty: | 12 Months | Net Weight: | 10.8 KG |
| Other Name: | Industry Air Isolator | Pressure Ability: | 0.2-0.8 M Pa |
| Gross Weight: | 12.0 KG | Flange Ring: | With Or Without |
| Connection Method: | Flange Connection | Flange Ring Size: | 451 Mm |
| BOLT CIRCLE DIA: | 419 Mm | ||
| High Light: | air helper springs,air suspension parts |
||

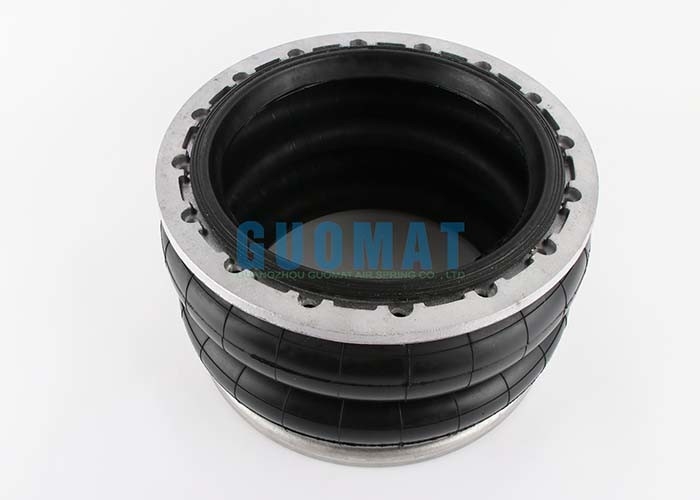

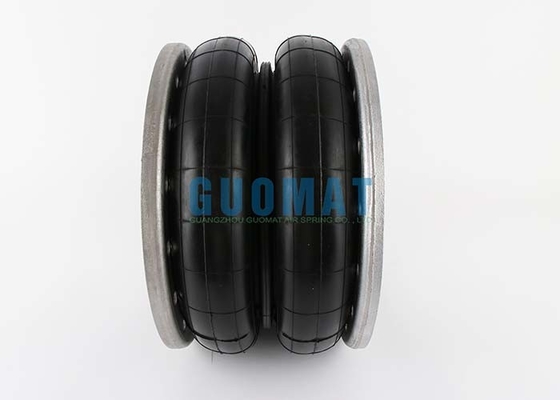

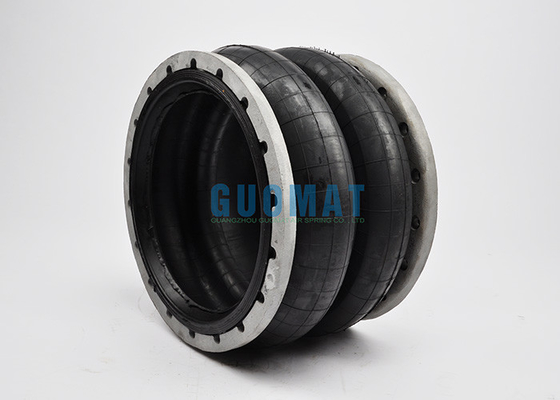

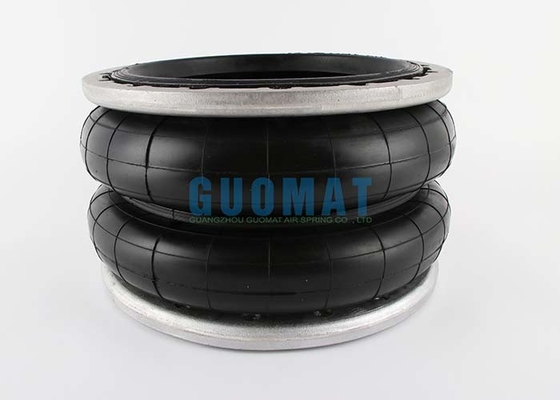

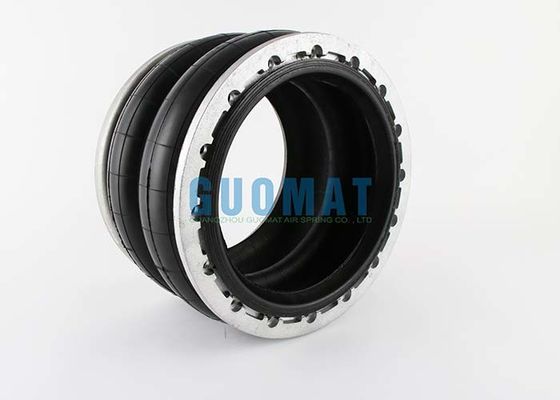

Flange Ring Bolt Circle DIA 419 mm W01M586985 Double Convoluted Air Lift Bags
Industrial Double Convoluted Air Spring Specifications
Rubber bellows only
Style 203 Two Ply Bellows
Ribbed neck aluminum bead,rings (equal spacing), 45 mm,bolts, nuts, washers:W01-M58-6985;W01 M58 6985;W01M586985
Rolled plate assembly,1/2 blind nuts, 3/4 NPT:SEE NOTE BELOW
Rubber bellows only:W01-358-0205;W01 358 0205;W013580205
Assembly weight.:10.8 kg.
Force to collapse to minimum height (@ 0 BAR):178N.
Style 218
High Strength Construction
Ribbed neck aluminum bead,rings (equal spacing), 45 mm,bolts, nuts, washers:W01-M58-6986;W01 M58 6986;W01M586986
Rubber bellows only:W01-358-0219;W01 3580219;W013580219

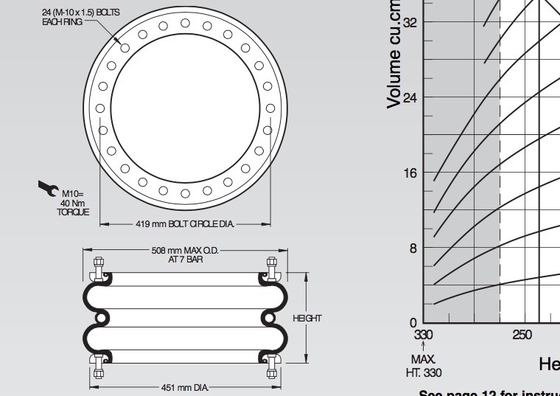

| Bead ring Type | 4 | Maximum Diameter @ 7 Bar (mm) | 508 |
| Dim. C (Bolt Circle Diameter mm) | 419 | Maximum Height (mm) | 84 |
| # of Bolts (each ring) | 24 | Maximum Stroke (mm) | 183 |
| Design Height (mm) | 241 | Minimum Usable Height (mm) | 267 |
| Load (at Design Height) at: 3 Bar (kN) | 34.9 | Force in kN @ 5 Bar at Stroke of 25 mm | 86.3 |
| Load (at Design Height) at: 5 Bar (kN) | 80.6 | Force in kN @ 5 Bar at Stroke of 50% of Max Stroke | 75.1 |
| Load (at Design Height) at: 7 Bar (kN) | 84.5 | Force in kN @ 5 Bar at Stroke of Maximum Stroke | 52.1 |
| Natural Frequency (@5 Bar)(fn(Hz) | 1.6 | Style Cross-Ref High Strength Style Number | 218 |
| % of Isolation at Forced Frequency 7 Hz | 93.9 | Material | 2-Ply Standard Cord |
| % of Isolation at Forced Frequency 13 Hz | 98.5 | % of Isolation at Forced Frequency 25 Hz | 99.6 |
Other Uses
• Use as a protective boot or flexible coupling
• Use when the application requires a rapid flow of air in and out of the air spring
• Stack multiple air springs together for increased stroke capabilities
| Flange connection type of air spring model comparison table | |||
| GUOMAT NO. | Contitech NO. | GUOMAT NO. | Contitech NO. |
| FS22-3DICR | FS 22-3 DI CR | FS960-12RS | FS 960-12 RS |
| FS44-5DICR | FS 44-5 DI CR | FS1330-11RS | FS 1330-11 RS |
| FS76-7DICR | FS 76-7 DI CR | FS1710-12RS | FS 1710-12 RS |
| FS76-7DSCR | FS 76-7 DS CR | FS2870-16RS | FS 2870-16 RS |
| FS138-8DS | FS 138-8 DS | FS5450-16RS | FS 5450-16 RS |
| FS210-10DS | FS 210-10 DS | FD960-22RS | FD 960-22 RS |
| FS412-10DS | FS 412-10 DS | FD1120-30RI | FD 1120-30 RI |
| FS614-13DS | FS 614-13 DS | FD1330-25RS | FD 1330-25 RS |
| FS816-15DS | FS 816-15 DS | FD1710-25RS | FD 1710-25 RS |
| FD22-4DICR | FD 22-4 DI CR | FD1730-40RI | FD 1730-40 RI |
| FD44-10DICR | FD 44-10 DI CR | FD2380-24RS | FD 2380-24 RS |
| FD76-14DICR | FD 76-14 DI CR | FD2470-40RI | FD 2470-40 RI |
| FD76-14DSCR | FD 76-14 DS CR | FD2870-30RS | FD 2870-30 RS |
| FD138-18DS | FD 138-18 DS | FD5450-28RS | FD 5450-28 RS |
| FD209-21DS | FD 209-21 DS | FT960-34RS | FT 960-34 RS |
| FD210-22DS | FD 210-22 DS | FT1330-35RS | FT 1330-35 RS |
| FD412-18DS | FD 412-18 DS | FT1710-38RS | FT 1710-38 RS |
| FD614-26DS | FD 614-26 DS | FT2870-45RS | FT 2870-45 RS |
| FD816-30DS | FD 816-30 DS | FT5450-44RS | FT 5450-44 RS |
| FT22-6DICR | FT 22-6 DI CR | ||
| FT44-15DICR | FT 44-15 DI CR | ||
| FT76-20DICR | FT 76-20 DI CR | ||
| FT76-20DSCR | FT 76-20 DS CR | ||
| FT138-26DS | FT 138-26 DS | ||
| FT210-32DS | FT 210-32 DS | ||
| FT412-32DS | FT 412-32 DS | ||
| FT614-36DS | FT 614-36 DS | ||
| FT816-40DS | FT 816-40 DS | ||
