W01-M58-6120 Firestone Airstroke Triple Convoluted Air Bag For Lifting Table

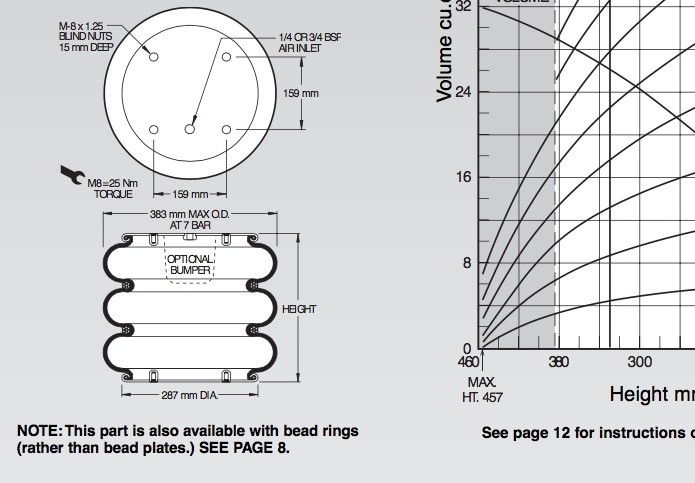

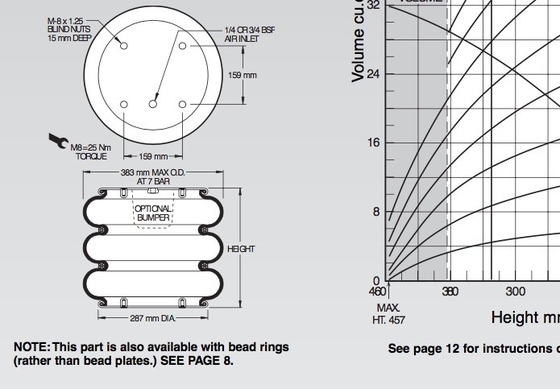

GUOMAT 2B6107 Technical parameters
❶Nut / Blind Nut
Top Cover Plate Screw (Nut) Tooth : 2pcsXM8X1.25
Screw Center Distance of Top Cover Plate : 159 mm
Bottom Cover Plate Screw (Nut) Tooth : 2pcsXM8X1.25
Screw Center Distance of Bottom Cover Plate :159 mm
❷ Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : 1/4-18NPTF
Screw Center Distance Between Gas Hole and Nut : 79.5 mm
❸ Cover Plate
Top Cover Plate Diameter: 287mm
Bottom Cover Plate Diameter: 287mm
❹Rubber Bellows
Rubber Bellows MAX Diameter: 383 mm
Rubber Bellows Natural Diameter : 350 mm
The Working Stroke : MIN 115 mm to MAX 457 mm
Maximum Height : 342mm
Minimum Height :115mm
Stroke Height : 457 mm
❺ Bumper block / Buffer block
Without or With Bumper Block
❻ Girdle Hoop / Girdle Ring
With Girdle Hoop :One Pieces of Girdle Hoop
OEM Original Equipment Manufacturer:
Firestone 233-2,
Firestone W01-M58-6107;W01 M58 6107;W01M586107
| Bead plate Type | 2 | Dim. B (mm) | 4 |
| Dim. A (Blind Nut Centers) (mm) | 159 | Design Height (mm) | 330 |
| Maximum Diameter @ 7 Bar (mm) | 384 | Load (at Design Height) at: 3 Bar (kN) | 16 |
| Maximum Height (mm) | 114 | Load (at Design Height) at: 5 Bar (kN) | 27.6 |
| Maximum Stroke (mm) | 267 | Load (at Design Height) at: 7 Bar (kN) | 39.6 |
| Minimum Usable Height (mm) | 381 | Natural Frequency (@5 Bar)(fn(Hz) | 1.4 |
| Force in kN @ 5 Bar at Stroke of 25 mm | 42.9 | % of Isolation at Forced Frequency 7 Hz | 95.5 |
| Force in kN @ 5 Bar at Stroke of 50% of Max Stroke | 35.7 | % of Isolation at Forced Frequency 13 Hz | 98.9 |
| Force in kN @ 5 Bar at Stroke of Maximum Stroke | 22 | % of Isolation at Forced Frequency 25 Hz | 99.7 |
| Style Cross-Ref High Strength Style Number | 39 |
The usal kinds of Double Convolution Air Springs
Style 313 Two Ply Bellows
Blind nuts, 1/4 BSP:W01-M58-6120;W01 M58 6120;W01M586120
Blind nuts, 1/4 BSP, bumper:W01-M58-6121;W01 M58 6121;W01M586121
Blind nuts, 3/4 BSP:W01-M58-6122;W01 M58 6122;W01M586122
Blind nuts, 3/4 BSP, bumper:W01-M58-6123;W01 M58 6123;W01M586123
Countersunk steel bead rings,40 mm bolts, nuts, washers:W01-M58-7526;W01 M58 7526;W01M587526
Rubber bellows only:W01-358-7900;W01 358 7900;W013587900
Assembly Weight:8.84 kg.
Force to collapse to minimum height (@ 0 BAR):205 N.
Style 39 High Strength Bellows
Blind nuts, 1/4 BSP:W01-M58-6132;W01 M58 6132;W01M586132
Blind nuts, 3/4 BSP:W01-M58-6130;W01 M58 6130;W01M586130
Countersunk steel bead rings.,40 mm bolts, nuts, washers W01-M58-7534;W01 M58 7534;W01M587534
