| Place of Origin: | China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 2B6136 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | strong carton box or as customers need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union,Paypal or Others |
| Supply Ability: | 1000pcs/week |
| Material: | Steel And Rubber | FIRESTONE: | W01-M58-6136 |
|---|---|---|---|
| Warranty: | 12 Months | Weight: | 11.2 Kg |
| Other Name: | Rubber Air Airstroke | Pressure Ability: | 0.2-0.8 M Pa |
| Screw (Nut) Tooth: | 2pcsXM8X1.25 | Gas Hole: | 1/4NPTF |
| High Light: | air helper springs,air suspension parts |
||
Firestone W01-M58-6136 Metric Airstroke Triple Convoluted Air Spring Actuator

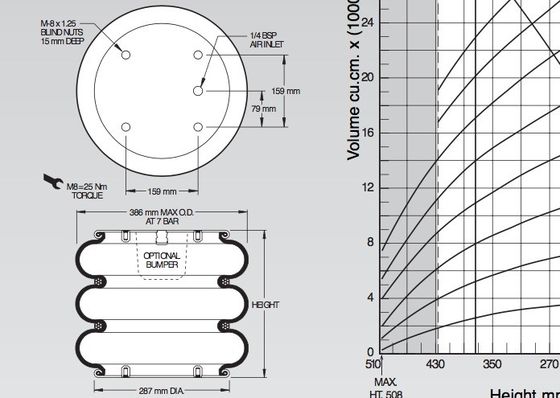

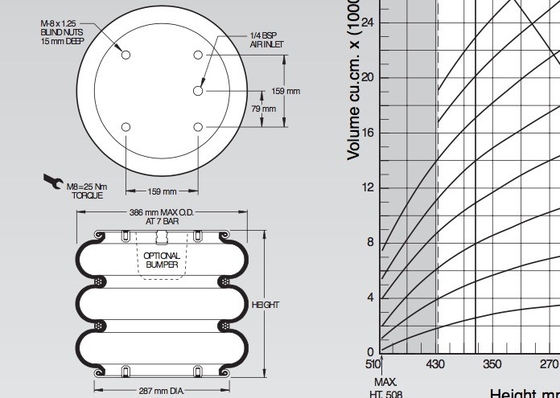

GUOMAT 2B6136 Technical parameters
❶Nut / Blind Nut
Top Cover Plate Screw (Nut) Tooth : 2pcsXM8X1.25
Screw Center Distance of Top Cover Plate : 159 mm
Bottom Cover Plate Screw (Nut) Tooth : 2pcsXM8X1.25
Screw Center Distance of Bottom Cover Plate :159 mm
❷ Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : 1/4-18NPTF
Screw Center Distance Between Gas Hole and Nut : 79.5 mm
❸ Cover Plate
Top Cover Plate Diameter: 287mm
Bottom Cover Plate Diameter: 287mm
❹Rubber Bellows
Rubber Bellows MAX Diameter: 383 mm
Rubber Bellows Natural Diameter : 350 mm
The Working Stroke : MIN 115 mm to MAX 508 mm
Maximum Height : 508mm
Minimum Height :115mm
Stroke Height : 305 mm
❺ Bumper block / Buffer block
Without or With Bumper Block
❻ Girdle Hoop / Girdle Ring
With Girdle Hoop :One Pieces of Girdle Hoop
OEM Original Equipment Manufacturer:
Goodyear Part # 3B14-409;3B14 409;3B14409
Firestone 333,
Firestone W01-M58-6136, W01M586136, WO1-M58-6136, WO1M586136
| Maximum Diameter @ 7 Bar (mm) | 386 | Design Height (mm) | 373 |
| Maximum Height (mm) | 419 | Load (at Design Height) at: 3 Bar (kN) | 15.9 |
| Maximum Stroke (mm) | 305 | Load (at Design Height) at: 5 Bar (kN) | 27.8 |
| Minimum Usable Height (mm) | 115 | Load (at Design Height) at: 7 Bar (kN) | 39.5 |
| Force in kN @ 5 Bar at Stroke of 25 mm | 44 | Natural Frequency (@5 Bar)(fn(Hz) | 1.3 |
| Force in kN @ 5 Bar at Stroke of 50% of Max Stroke | 36 | % of Isolation at Forced Frequency 7 Hz | 96.8 |
| Force in kN @ 5 Bar at Stroke of Maximum Stroke | 23.4 | % of Isolation at Forced Frequency 13 Hz | 99.2 |
| Material | 2-Ply Standard Cord | % of Isolation at Forced Frequency 25 Hz | 99.8 |
| Bead plate Type | 2 | Dim. B (mm) | 4 |
| Dim. A (Blind Nut Centers) (mm) | 159 |
The usal kinds of Double Convolution Air Springs
Style 333 Two Ply Bellows
Blind nuts, 1/4 BSP
W01-M58-6136;W01 M58 6136;W01M586136
Blind nuts, 1/4 BSP, rubber bumper
W01-M58-6138;W01 M58 6138;W01M586138
Blind nuts, 3/4 BSP
W01-M58-6137;W01 M58 6137;W01M586137
Countersunk steel bead rings!40 mm bolts, nuts, washers
W01-M58-7535;W01 M58 7535;W01M587535
Rubber bellows only
W01-358-7019;W01 358 7019;W013587019
Assembly weight:11.2kg.
Force to collapse to minimum height (@ 0 BAR):289 N.
