| Place of Origin: | China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 3H7530 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | strong carton box or as customers need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union,Paypal or Others |
| Supply Ability: | 1000pcs/week |
| Material: | Aluminum Alloy And Rubber | Firestone: | W01-M58-7530 |
|---|---|---|---|
| Warranty: | 12 Months | Net Weight: | 11.3 KG |
| Other Name: | Air Spring Isolator | Pressure Ability: | 0.2-0.8 M Pa |
| Gross Weight: | 12.5 KG | Flange Ring: | With Or Without |
| Connection Method: | Flange Connection | Flange Ring Size: | 384 Mm |
| BOLT CIRCLE DIA: | 350 Mm | ||
| High Light: | air helper springs,air suspension parts |
||

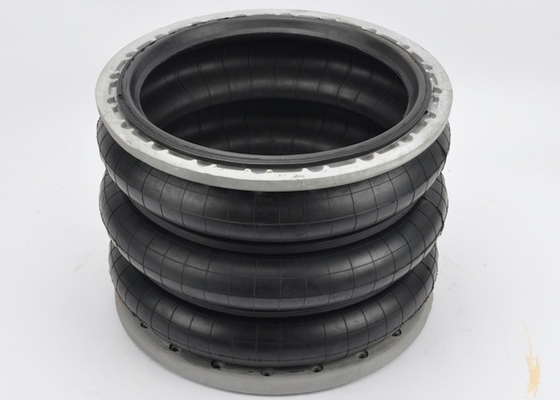

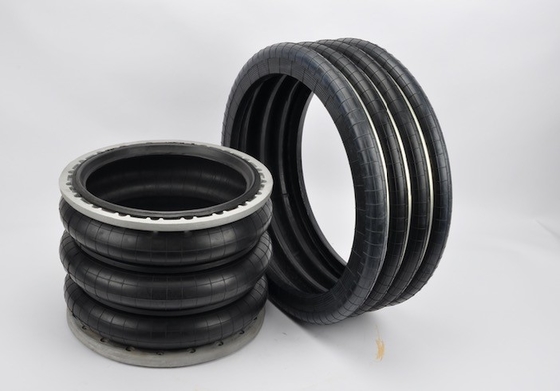

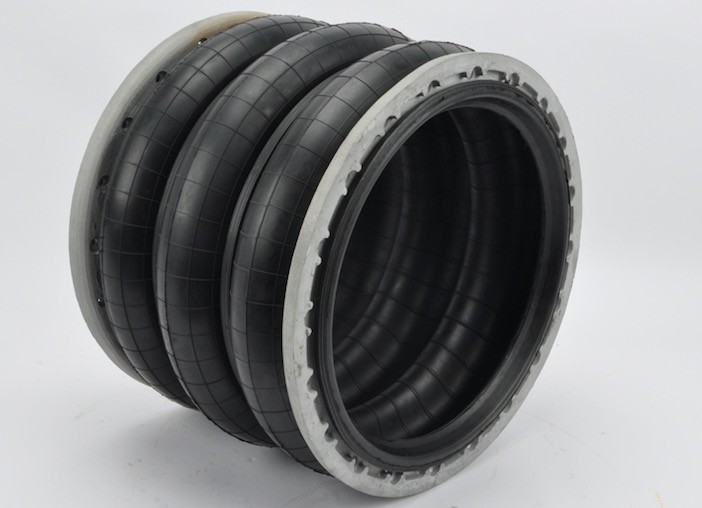

W01-M58-7530 Convoluted Industrial Air Spring Flange Rubber Bellows W01-358-7914
Industrial Double Convoluted Air Spring Specifications
Rubber bellows only
Style 28 Two Ply Bellows
Ribbed neck aluminum bead,rings (equal spacing), 45 mm,bolts, nuts, washers:W01-M58-7530;W01 M58 7530;W01M587530
Rolled plate assembly,1/2 blind nuts, 3/4 NPT:SEE NOTE BELOW
Rubber bellows only:W01-358-7914;W01 358 7914;W013587914
Assembly weight.:.11.3 kg.
Force to collapse to minimum height (@ 0 BAR):600N.
Style 314
High Strength Construction
W01-M58-6981;W01 M58 6981;W01M586981;
Rubber bellows only:W01-358-7926;W01 358 7926;W013587926;
| Maximum Diameter @ 7 Bar (mm) | 462 | 330 | |
| Maximum Height (mm) | 114 | Load (at Design Height) at: 3 Bar (kN) | 24.7 |
| Maximum Stroke (mm) | 264 | Load (at Design Height) at: 5 Bar (kN) | 42.7 |
| Minimum Usable Height (mm) | 378 | Load (at Design Height) at: 7 Bar (kN) | 60.6 |
| Force in kN @ 5 Bar at Stroke of 25 mm | 63.3 | Natural Frequency (@5 Bar)(fn(Hz) | 1.4 |
| Force in kN @ 5 Bar at Stroke of 50% of Max Stroke | 52.4 | % of Isolation at Forced Frequency 7 Hz | 95.9 |
| Force in kN @ 5 Bar at Stroke of Maximum Stroke | 35.2 | % of Isolation at Forced Frequency 13 Hz | 99 |
| Style Cross-Ref High Strength Style Number | 314 | % of Isolation at Forced Frequency 25 Hz | 99.7 |
| Material | 2-Ply Standard Cord | Bead ring Type | 4 |

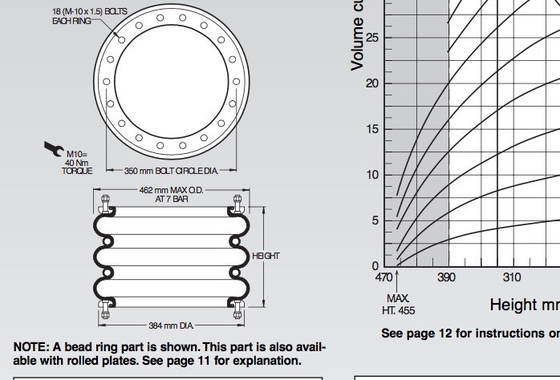

| Dim. C (Bolt Circle Diameter mm) | 351 | # of Bolts (each ring) | 18 |
Bead Ring Applications and Other Uses
Applications
• Laminate press equipment
• Large material handling equipment - Heavy Industry
• Paper & pulp mill equipment
• Stamping press cushions in automotive plants
