| Place of Origin: | China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 3H6980 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | strong carton box or as customers need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union,Paypal or Others |
| Supply Ability: | 1000pcs/week |
| Material: | Aluminum Alloy And Rubber | Firestone: | W01M586980 |
|---|---|---|---|
| Warranty: | 12 Months | Net Weight: | 14.2 KG |
| Other Name: | Industry Air Isolator | Pressure Ability: | 0.2-0.8 M Pa |
| Gross Weight: | 15.3 KG | Flange Ring: | With Or Without |
| Connection Method: | Flange Connection | Flange Ring Size: | 451 Mm |
| BOLT CIRCLE DIA: | 419 Mm | ||
| High Light: | air helper springs,air suspension parts |
||

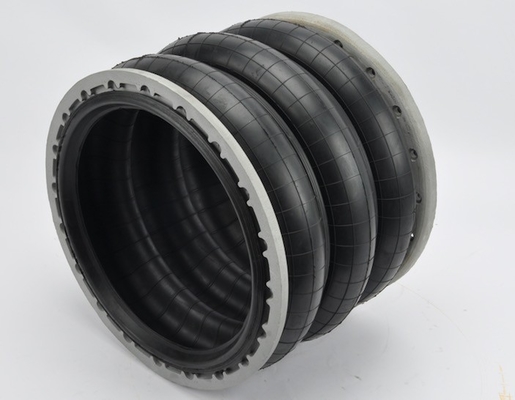

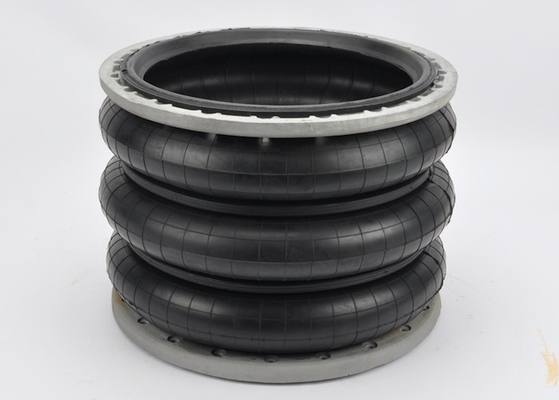

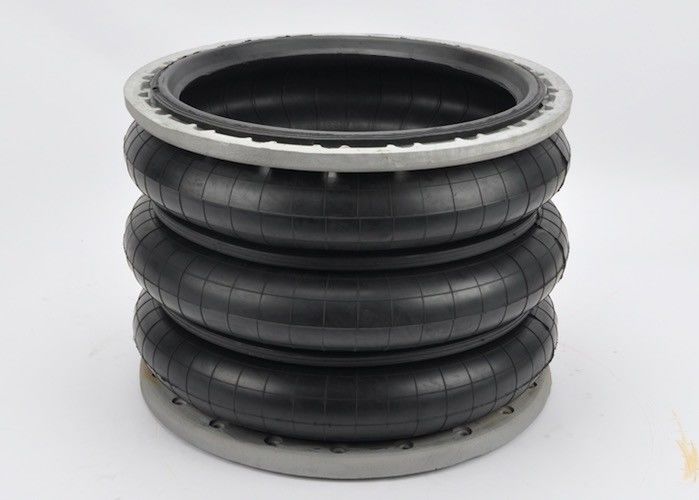

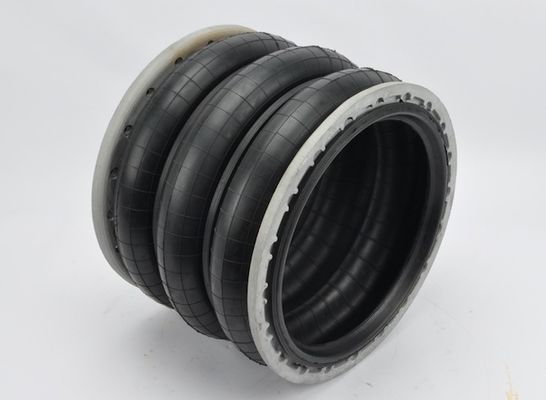

W01M586980 Flange Ring Bolt Circle DIA 419 mm Triple Convoluted Firestone Air Bag Kit
Industrial Double Convoluted Air Spring Specifications
Rubber bellows only
Style 323 Two Ply Bellows
Ribbed neck aluminum bead,rings (equal spacing), 45 mm,bolts, nuts, washers:W01-M58-6980;W01 M58 6980;W01M586980
Rolled plate assembly,1/2 blind nuts, 3/4 NPT:SEE NOTE BELOW
Rubber bellows only:W01-358-7921;W01 358 7921;W013587921
Assembly weight.:14.2 kg.
Force to collapse to minimum height (@ 0 BAR):311N.
Style 324
High Strength Construction
Ribbed neck aluminum bead,rings (equal spacing), 45 mm,bolts, nuts, washers:W01-M58-6968;W01 M58 6968;W01M586968
Rubber bellows only:W01-358-0324;W01 3580324;W013580324

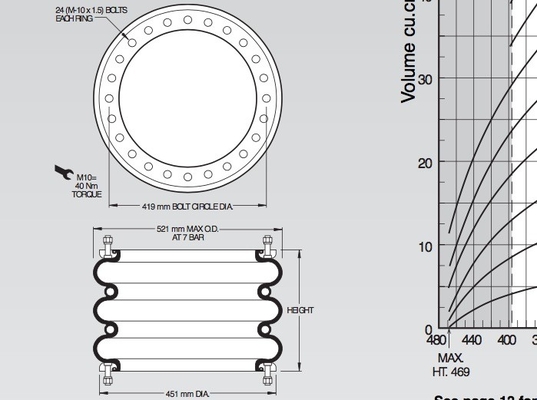

| Maximum Diameter @ 7 Bar (mm) | 521 | Design Height (mm) | 330 |
| Maximum Height (mm) | 114 | Load (at Design Height) at: 3 Bar (kN) | 35.7 |
| Maximum Stroke (mm) | 277 | Load (at Design Height) at: 5 Bar (kN) | 62 |
| Minimum Usable Height (mm) | 391 | Load (at Design Height) at: 7 Bar (kN) | 87.8 |
| Force in kN @ 5 Bar at Stroke of 25 mm | 85.5 | Natural Frequency (@5 Bar)(fn(Hz) | 1.3 |
| Force in kN @ 5 Bar at Stroke of 50% of Max Stroke | 73.2 | % of Isolation at Forced Frequency 7 Hz | 95.9 |
| Force in kN @ 5 Bar at Stroke of Maximum Stroke | 50.1 | % of Isolation at Forced Frequency 13 Hz | 99 |
| Style Cross-Ref High Strength Style Number | 324 | % of Isolation at Forced Frequency 25 Hz | 99.7 |
| Material | 2-Ply Standard Cord | Dim. C (Bolt Circle Diameter mm) | 419 |
| Bead ring Type | 4 | # of Bolts (each ring) | 24 |
