| Place of Origin: | Guangdong,China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 2B8x2 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiation |
| Packaging Details: | strong carton box or as customers need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union,Paypal or Others |
| Supply Ability: | 1000pcs/week |
| Material: | Rubber Bellows | GUOMAT NO.: | 2B8"x2 |
|---|---|---|---|
| Bellows NO .: | Springride DF 8"x 2 | Firestone: | W01R584045 |
| Plate Dia.: | 184 Mm | Max Dia.: | 189mm |
| Pressure Ability: | 0.2-0.8 MPa | Air Inlet: | G1/2 |
| Natural H.: | 175 Mm | ||
| High Light: | air suspension parts,convoluted air spring |
||

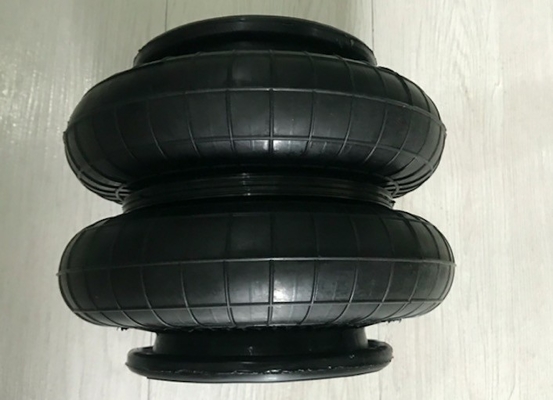

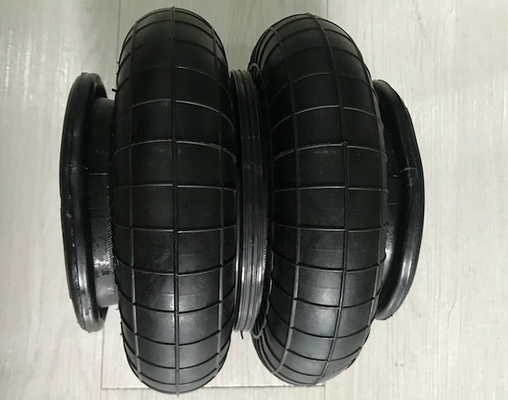

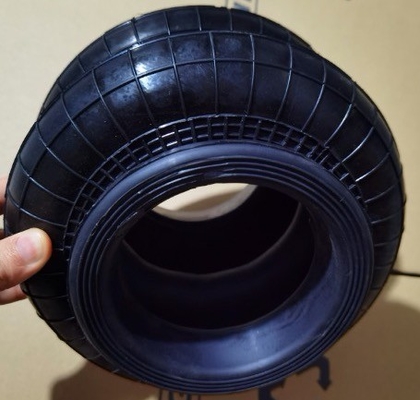

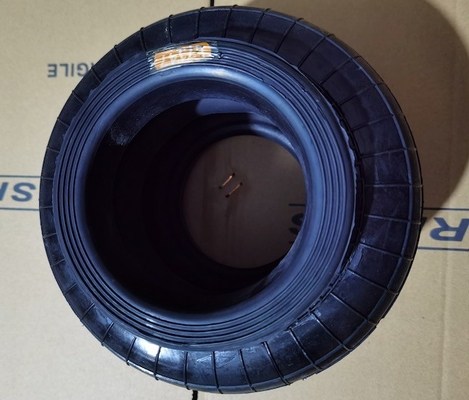

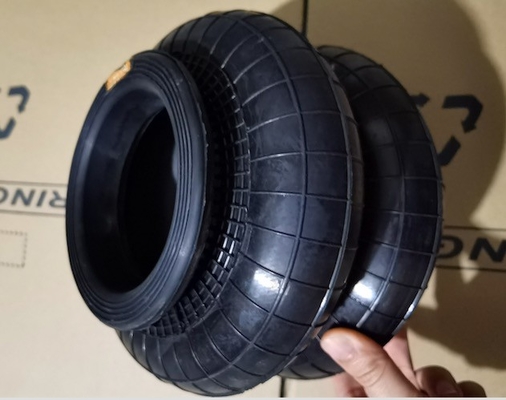

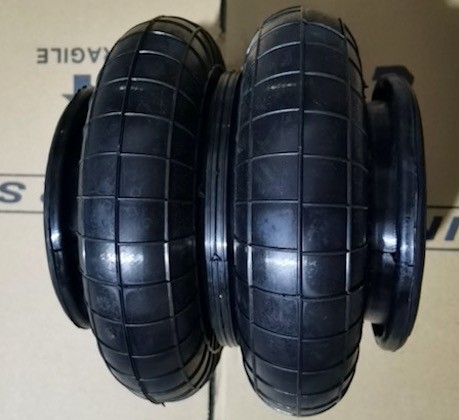

Spare Part Bellow 8"x2 W01-R58-4045 Industrial Air Spring Bags 8x2 Firestone Air Bag Kit
This 8X2 kind of air spring is produced by GUOMAT,which can replace Norgren 8x2.
GUOMAT 8X2 is the same size as Norgren 8x2.
GUOMAT 8X2 is good quality and the best price.

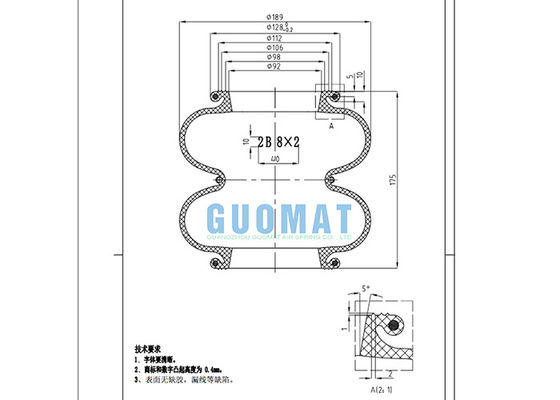

Specifications and Detail Technical Parameters:Style 8" x2
❶Nut / Blind Nut
Top Cover Plate Screw (Nut) Tooth : 4pcs X M10
Bottom Cover Plate Screw (Nut) Tooth : 4pcs X M10
❷ Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : G1/2
❸ Cover Plate
Top Cover Plate Diameter (Width): 184 mm
Bottom Cover Plate Diameter (Width): 184 mm
Material top and bottom plate:Steel
❹Rubber Bellows
Diameter max at 7 bar:220MM
Stroke of Rubber Bellows:110mm-240m
❺ Bumper block / Buffer block
Without Bumper Block
❻ Girdle Hoop / Girdle Ring
With Girdle Hoop :One Pieces of Girdle Hoop
max force at stroke 25 mm and 5 bar 13,2 kN
Other kinds of model air bellows:
W01-R58-4081 (2 3/4" x3)
W01-R58-4051 Dunlop Style 4,5 " x 2
W01-R58-4052 - (6" x1 steel)
Firestone W01-R58-4057 - (10 x1 steel)
Firestone W01-R58-4027 - 8x2 (Epichlorhydrin / Herclor)
Firestone W01-R58-4090 - 8"x2 Butyl
Firestone W01-R58-4055 - 8x2 Steel
Firestone W01-R58-4060 (12 x1 steel)
Firestone W01-R58-4077 (12 x1 Herclor )
Firestone W01-R58-4056 -8"x3 Steel
Firestone W01-R58-4062 (12 x3 Steel)
Firestone W01-R58-4065 (14 1/2 x3 Steel)
Firestone W01-R58-4098 (14 1/2 x1 Herclor)
Firestone W01-R58-4097 (14" 1/2 x2 Herclor)
Firestone W01-R58-4025 - (10" x1 Epichlorhydrin/Herclor)
Firestone W01-R58-4078 - (6 x1 Alu )
Firestone W01-R58-4070 - (6 x 2 Alu )
Firestone W01-R58-4053 - (6 x 2 Steel )
Firestone W01-R58-4059 - (10" x3 steel)
Firestone W01-R58-4054 - 8x1 Steel
Firestone W01-R58-4028 - 8"x1 Epichlorhydrin
Spar Part Bellow 8"x2 W01-R58-4045
Firestone W01-R58-4064 -14" 1/2 x2
Firestone W01-R58-4063 -14 1/2 x1
Bellow only 8" x 1 -- W01-R58-4085
Firestone W01-R58-4048
W01-R58-4080 - 2 3/4" x 2
Firestone W01-R58-4060- 12" x2 steel
Firestone W01-R58-4070 - (6 x 2 V2a )
Firestone W01-R58-4051E 4,5 x 2 Stainless Steel
Firestone W01-R58-4050
W01-R58-4080 - 2 3/4" x 1
| GUOMAT NO. | Model | Nominal Ø (inch) x convolutions | Maximum stroke (mm) | Air Port size |
| 1B 2 3/4x 1 | PM/31021 | 2 3/4“ x 1 | 20 | G1/4 |
| 2B 2 3/4x 2 | PM/31022 | 2 3/4“ x 2 | 45 | G1/4 |
| 3B 2 3/4x 3 | PM/31023 | 2 3/4“ x 3 | 65 | G1/4 |
| 1B 4 1/2x 1 | PM/31041 | 4 1/2“ x 1 | 140 | G3/8 |
| 2B 4 1/2x 2 | PM/31042 | 4 1/2“ x 2 | 280 | G3/8 |
| 1B 6x 1 | PM/31061 | 6" x 1 | 155 | G1/2 |
| 2B 6x 2 | PM/31062 | 6" x 2 | 155 | G1/2 |
| 1B 8x 1 | PM/31081 | 8" x 1 | 95 | G3/4 |
| 2B 8x 2 | PM/31082 | 8" x 2 | 185 | G3/4 |
| 1B 9 1/4x 1 | PM/31091 | 9 1/4” x 1 | 105 | G3/4 |
| 2B 9 1/4x 1 | PM/31092 | 9 1/4“ x 1 | 230 | G3/4 |
| 1B 12x 1 | PM/31121 | 12" x 1 | 105 | G3/4 |
| 2B 12x 2 | PM/31122 | 12" x 2 | 215 | G3/4 |
| 3B 12x 3 | PM/31123 | 12" x 3 | 315 | G3/4 |
