| Place of Origin: | Guangdong,China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 644N |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | strong carton box or as customers need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union,paypal or others |
| Supply Ability: | 1000pcs/week |
| Material: | Natural Rubber | FIRESTONE: | 1R1A390295 |
|---|---|---|---|
| Natural Outer Diameter: | 210 Mm | Opening Diameter: | 130.8 Mm |
| Height: | 395 Mm | GOODYEAR: | 8017 |
| NEOPLAN: | 100110300 | ||
| High Light: | air spring bellows,air helper springs |
||
1R1A390295 FIRESTONE Bus Air Spring GOODYEAR 8017 For NEOPLAN 100110300

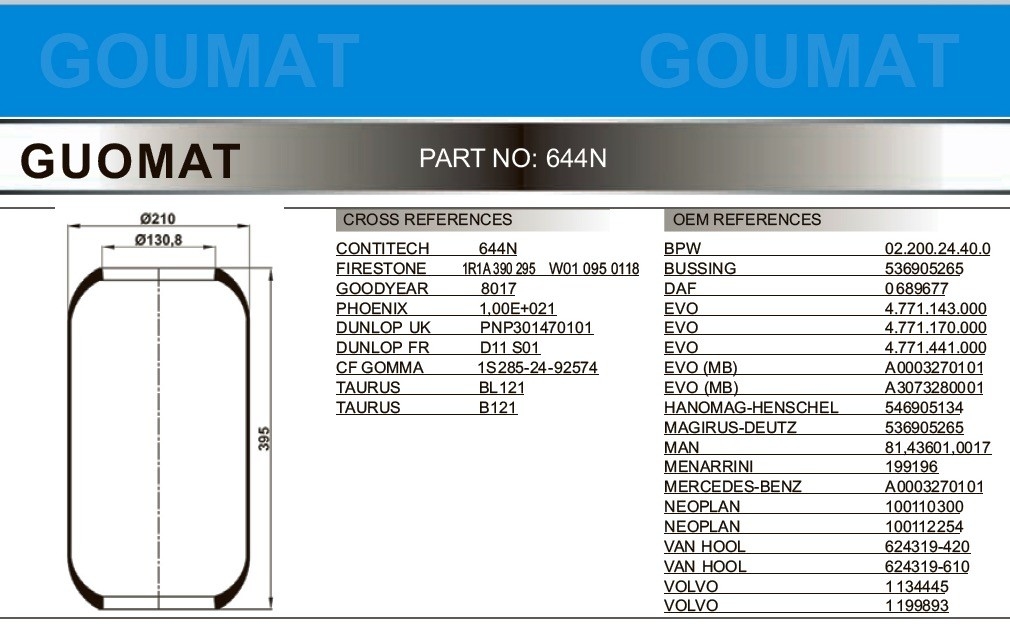

644N Technical parameters
Minimum height / h min 155 mm
Maimum height / h ma 415 mm
Maimum diameter /d ma 300 mm
Required Space diameter / d R 325 mm
Natural height / h 275 mm
CROSS REFERENCES OEM REFERENCES
CONTITECH 644N
FIRESTONE 1R1A 390 295;1R1A-390-295;1R1A390295
FIRESTONE W01 095 0118
GOODYEAR 8017
PHOENIX 1,00E+021
DUNLOP UK PNP301470101
DUNLOP FR D11 S01
CF GOMMA 1S285-24-92574
TAURUS BL121
TAURUS B121
BPW 02.200.24.40.0
BUSSING 536905265
DAF 0 689677
EVO 4.771.143.000
EVO 4.771.170.000
EVO 4.771.441.000
EVO (MB) A0003270101
EVO (MB) A3073280001
HANOMAG-HENSCHEL 546905134
MAGIRUS-DEUTZ 536905265
MAN 81,43601,0017
MENARRINI 199196
MERCEDES-BENZ A0003270101
NEOPLAN 100110300
NEOPLAN 100112254
VAN HOOL 624319-420
VAN HOOL 624319-610
VOL-VO 1 134445
VOL-VO 1 199893
1R1A390295 can fit for the below Vehicle Model:
|
1R1A390295 can fit for the below Vehicle Model:
|
| Bussing 536 905 265 ( 1R1A390295 ) Vehicle : F 76 |
| DAF 0 689 677 ( 1R1A390295 ) Vehicle : SB 2000 |
| DAF 0 689 677 ( 1R1A390295 ) Vehicle : SB 201 |
| Droeg ( 1R1A390295 ) Vehicle : 303 / 9-15 |
| EVO 4.771.170.000 ( 1R1A390295 ) Vehicle : 216 DHS |
| EVO 4.771.170.000 ( 1R1A390295 ) Vehicle : 228 DT |
| EVO 4.771.170.000 ( 1R1A390295 ) Vehicle : S 228 DT 6t |
| EVO 4.771.170.000 ( 1R1A390295 ) Vehicle : S 110 |
| EVO 4.771.170.000 ( 1R1A390295 ) Vehicle : S 12 |
| EVO 4.771.170.000 ( 1R1A390295 ) Vehicle : S 14 |
| EVO 4.771.170.000 ( 1R1A390295 ) Vehicle : S 15 L |
| EVO 4.771.170.000 ( 1R1A390295 ) Vehicle : S 120 GV/HV |
| EVO 4.771.170.000 ( 1R1A390295 ) Vehicle : S 125 |
| EVO 4.771.170.000 ( 1R1A390295 ) Vehicle : S 1305 |
| EVO 4.771.170.000 ( 1R1A390295 ) Vehicle : S 140 E/ES/H |
| EVO 4.771.170.000 ( 1R1A390295 ) Vehicle : S 150 E/H |
| EVO 4.771.170.000 ( 1R1A390295 ) Vehicle : S 180 |
| EVO 4.771.170.000 ( 1R1A390295 ) Vehicle : S 200 |
| EVO 4.771.170.000 ( 1R1A390295 ) Vehicle : S 209 |
| EVO 4.771.170.000 ( 1R1A390295 ) Vehicle : S 211 |
| EVO 4.771.170.000 ( 1R1A390295 ) Vehicle : S 212 |
| EVO 4.771.170.000 ( 1R1A390295 ) Vehicle : S 210 H/HD |
| EVO 4.771.170.000 ( 1R1A390295 ) Vehicle : S 213 |
| EVO 4.771.170.000 ( 1R1A390295 ) Vehicle : S 214 |
| EVO 4.771.170.000 ( 1R1A390295 ) Vehicle : S 215 |
| EVO 4.771.170.000 ( 1R1A390295 ) Vehicle : S 216 HSD |
| EVO 4.771.170.000 ( 1R1A390295 ) Vehicle : SG 175 |
| EVO 4.771.170.000 ( 1R1A390295 ) Vehicle : SG 98 |
| EVO 4.771.170.000 ( 1R1A390295 ) Vehicle : SG 052 |
MAN 81436010017
VOL-VO 1134445 - 1622111 - 1199873 - 1590136 - 1199893
NEOPLAN 100110300
VAN HOOL 624319610
DAF 689677 - 696229
EVO BUS 4771143000 - 4771143000 - A0003280001 - 4771170000
MERCEDES A0003270101 - A6133270001 - 3073280001 - 3643277001
IVE-CO 4714025 - 536905265
Mode Of Conventional Models
| Contitech | Firestone | Goodyear | Phoenix | Dunlop FR | CF Gomma | Taurus |
| 661 N | W01-095-0021 | 8018 | 1E 25 | D12S02 | 1S 310-28 | B 114 |
| 644 N | W01-095-0118 | 8017 | 1E 21 | D11S01 | 1S 285-24 | B 121 |
| 662 N | W01-095-0207 | 9007 | 1E 32 | D13S01 | 1S 360-30 | BL 143 |
| 673 N | W01-095-0198 | 9051 | 1F 21A | 1S 285-22 | B 141 |
