| Place of Origin: | Guangdong,China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 769N |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | strong carton box or as customers need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union,paypal or others |
| Supply Ability: | 1000pcs/week |
| Material: | Natural Rubber | GOODYEAR: | 8053 |
|---|---|---|---|
| Natural Outer Diameter: | 190 Mm | Opening Diameter: | 130.8 Mm |
| Height: | 380 Mm | MENARINI: | 252933 |
| PHOENIX: | 1E18 | ||
| High Light: | air helper springs,contitech air bags |
||
769N GOODYEAR 8053 TAURUS B156 Bus Air Spring For MENARINI 252933
The others OEM of GOODYEAR 8053 Spring Airbags

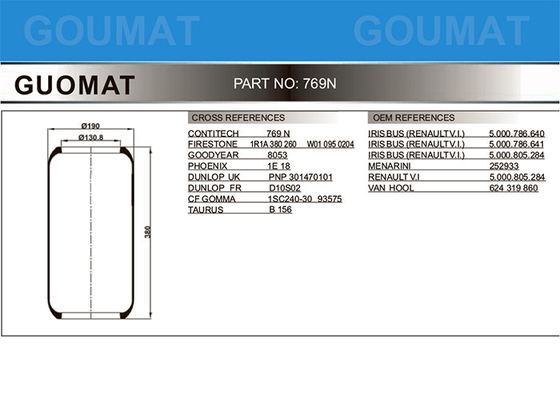

CROSS REFERENCES
CONTITECH 769 N; 769N
FIRESTONE 1R1A 380 260; 1R1A380260; 1R1A-380-260
FIRESTONE W01 095 0204; W010950204; W01-095-0204
PHOENIX 1 E 18; 1E18; 1 E18
TAURUS B 156; B156
DUNLOP UK PNP305140100
DUNLOP FR D10S02
GOODYEAR 8053
CF GOMMA 1SC 240-30; 1SC24030 ;1SC240-30
CF GOMMA 97326
OEM REFERENCES
MENARINI 252933
French car V.I 5.000.805.284
VAN HOOL 624319-860
The technical date of CONTITECH 769 N
Natural Outer Diameter 190 mm
Opening Diameter 130.8 mm
Height 380 mm
Material: natural rubber
Net weight: 1.6 kg
Design height: 265mm
Working stroke: 195mm
dMax: 255mm
Space required: 275 mm
Deformation (minimum height): 175mm
Deflection (maximum height): 370mm
Nominal working pressure : 5.0-6.0 bar
maximum working pressure : 7.0bar
space envelope diameter : 275mm
maximum height: 380mm
Assembly height: 160mm - 280mm
Minimum height: 170mm
Minimum burst pressure : 18bar
load capacity (7.0 bar): 2425kg
GOODYEAR 8053 Air Springs Pneumatic Suspensions fit for IRIS Bus (IVE-CO) ,RVI ,Scania and Van Hool Vehicle
| IRIS Bus (IVE-CO) |
| IRIS 5.000.786.640 ( GOODYEAR 8053 ) Vehicle : ER/PR 180 |
| IRIS 5.000.786.641 ( GOODYEAR 8053 ) Vehicle : 100 V 8 |
| IRIS 5.000.805.284 ( GOODYEAR 8053 ) Vehicle : PR 100 Before 05.81 |
| IRIS 5.000.805.284 ( GOODYEAR 8053 ) Vehicle : PR 100-G 107 Heuliez Before 01.90 |
| IRIS 5.000.805.284 ( GOODYEAR 8053 ) Vehicle : PR 100-G 107 Heuliez Before 01.90 |
| IRIS 5.000.805.284 ( GOODYEAR 8053 ) Vehicle : PR 14 |
| IRIS 5.000.805.284 ( GOODYEAR 8053 ) Vehicle : PR 180-G 187 Heuliez Before 01.90 |
| IRIS 5.000.805.284 ( GOODYEAR 8053 ) Vehicle : PR 180-G 187 Heuliez Articulated, before 01.90 |
| RVI 5.000.805.284 ( GOODYEAR 8053 ) Vehicle : PR 100 Substitude lobe |
| RVI 5.000.785.792 769 M PR 100 |
| RVI 5.000.786.640 769 MB PR 100 |
| RVI 5.000.805.999 769 MB Tubolar spring for 769 MB |
| Scania |
| SCA ( GOODYEAR 8053 ) Vehicle : BR CR 110 |
| SCA ( GOODYEAR 8053 ) Vehicle : BR/CR 116/145 |
| SCA ( GOODYEAR 8053 ) Vehicle : BR/CR 85/86 |
| SCA ( GOODYEAR 8053 ) Vehicle : BR/CR 112 |
| SCA ( GOODYEAR 8053 ) Vehicle : CR 76 |
| Van Hool 624319-860 ( GOODYEAR 8053 ) Vehicle : |
Dunlop Part Number
PNP 03769 02 00
Contitech Reference
769 N
Firestone Style
1R1A 380-260
Firestone Reference
W01 095 0204
Phoenix
1 E 18
Taurus
B 156
Goodyear
8053
Dunlop France
D10 S02
CF Gomma (Pirelli)
1 SC 240-30
OEM Applications / Part Numbers
IRIS 5.000.805.284 IRIS 5.000.786.640 IRIS 5.000.786.641 VAN HOOL 624319-860 RVI 5.000.805.284 SCANIA
Warranty period of air spring
GUOMAT air springs are made of high-quality materials (natural rubber), and the warranty period is one year.
Our air springs provide high performance and power while ensuring perfect grip and maximum driving comfort in any situation. In addition to improving the stability of the vehicle, they can also reduce the number of vibrations caused by road defects, thereby optimizing passenger comfort and allowing you to drive smoothly.
Our shock absorbers are designed to provide excellent driving quality by quickly adapting to different road and vehicle conditions, while providing ultimate safety and functionality.
