Place of Origin: | Guangdong,China |
Brand Name: | GUOMAT |
Certification: | ISO/TS16949:2009 |
Model Number: | 3B7850 |
Minimum Order Quantity: | Negotiable |
---|---|
Price: | Negotiable |
Packaging Details: | strong carton box or as customers need |
Delivery Time: | 2-8 work days |
Payment Terms: | T/T, Western Union,Paypal or Others |
Supply Ability: | 1000pcs/week |
Material: | Steel Cover Plate , Rubber Bellows | Firestone: | W013587850 |
---|---|---|---|
Gas Hole: | 1/4NPTF | Two Pillars Stick Nuts: | 3/8 UNC |
Screw Center Distance: | 157 Mm | Cover Plate Diameter: | 287mm |
Pressure Ability: | 0.2-0.8 M Pa | Natural Height: | 380 Mm |
High Light: | air suspension parts,convoluted air spring |
W013587850 Firestone Air Spring Bellow NO. 333 Triple Convoluted Air Bag Goodyear 3B14-452
GUOMAT NO. 3B7850 Cross others OEM
Contitech FT 530-35 441;FT530-35 441;FT530-35441
SUSPENSIONS INC. 200177
Firestone W01-358-7850;W01 358 7850;W013587850
Goodyear 3B14-452;3B14 452;3B14452
WATSON & CHALIN:AS-0086
HISTEER 10301
GUOMAT NO. 3B7850 Technical Parameters
Compression height: 4.80 inches / 122MM
Top plate number: 3187
Top plate width: 11.31 inches / 287MM
Piston number: 3197
Piston width: 11.31 inches / 287MM
Firestone bellows number: 333
Goodyear Part Number:3B14-452;3B14 452;3B14452
Goodyear bellows number: 556-33-8-335;556 33 8 335;556338335
Triangle part number: 4441
Number of triangular bellows: 6335
Watson and Charing #: AS-0086
Hanging company number 200177
Note: HS INDUSTRIES / LINK 10301

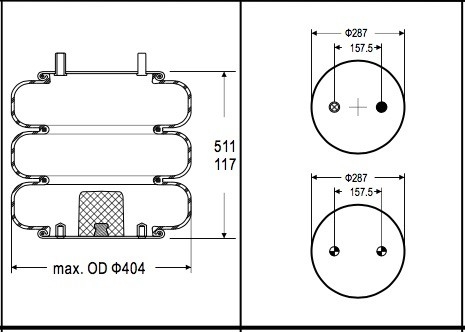

❶Nut / Blind Nut
Top Cover Plate Screw (Nut) Tooth : 2pcsX1/2-16UNC
Top Cover Plate Screw (Nut) Tooth : 2pcsX3/8-16UNC
Screw Center Distance of Top Cover Plate : 157.5mm
Bottom Cover Plate Screw (Nut) Tooth : 2pcsX3/8-16UNC
Screw Center Distance of Bottom Cover Plate : 157.5mm
❷ Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : 1/4 N P.T.F. / 1/4NPTF
❸ Cover Plate
Top Cover Plate Diameter: 287 mm
Bottom Cover Plate Diameter: 287 mm
❹Rubber Bellows
Rubber Bellows MAX Diameter: 404 mm
Rubber Bellows Natural Diameter :380 mm
The Working Stroke : MAX 511 mm to MIN 117 mm
Maximum Height : 511 mm
Minimum Height :117 mm
Compression Height : 394mm
❺ Bumper block / Buffer block
Without Bumper Block
❻ Girdle Hoop / Girdle Ring
With Girdle Hoop :Two Pieces of Girdle Hoop
Other kinds of FT 530-35 that GUOMAT have:
GUOMAT NO. | Reference | Order NO. | Force (lbs) | Max OD (mm) | Design height(mm) | Height | Narural frequ.[cpm] | ||
80 psi | 100 psi | Min | MAX | ||||||
FT 530 35 435 | FT 530-35 435 | 161358 | 6900 | 8620 | 381 | 355.6 | 104.14 | 541.02 | 75 |
FT 530 35 436 | FT 530-35 436 | 161359 | 6900 | 8620 | 381 | 355.6 | 104.14 | 541.02 | 75 |
FT 530 35 437 | FT 530-35 437 | 161360 | 6900 | 8620 | 381 | 355.6 | 104.14 | 541.02 | 75 |
FT 530 35 438 | FT 530-35 438 | 161361 | 6900 | 8620 | 381 | 355.6 | 104.14 | 541.02 | 75 |
FT 530 35 439 | FT 530-35 439 | 161362 | 6900 | 8620 | 381 | 355.6 | 101.6 | 541.02 | 75 |
FT 530 35 441 | FT 530-35 441 | 161363 | 6900 | 8620 | 381 | 355.6 | 104.14 | 541.02 | 75 |
FT 530 35 455 | FT 530-35 455 | 161364 | 6900 | 8620 | 381 | 355.6 | 104.14 | 541.02 | 75 |
FT 530 35 456 | FT 530-35 456 | 161365 | 6900 | 8620 | 381 | 355.6 | 104.14 | 541.02 | 75 |
FT 530 35 457 | FT 530-35 457 | 161366 | 6900 | 8620 | 381 | 355.6 | 104.14 | 541.02 | 75 |
FT 530 35 521 | FT 530-35 521 | 161367 | 6900 | 8620 | 381 | 355.6 | 101.6 | 541.02 | 75 |
FT 530 35 522 | FT 530-35 522 | 161368 | 6900 | 8620 | 381 | 355.6 | 104.14 | 541.02 | 75 |
FT 530 35 523 | FT 530-35 523 | 161369 | 6900 | 8620 | 381 | 355.6 | 104.14 | 541.02 | 75 |
FT 530 35 534 | FT 530-35 534 | 161370 | 6900 | 8620 | 381 | 355.6 | 101.6 | 541.02 | 75 |
FT 530 35 537 | FT 530-35 537 | 161371 | 6900 | 8620 | 381 | 355.6 | 104.14 | 541.02 | 75 |
