| Place of Origin: | Guangdong,China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 3B7853 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | strong carton box or as customers need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union,Paypal or Others |
| Supply Ability: | 1000pcs/week |
| Material: | Steel Cover Plate , Rubber Bellows | Contitech: | FT530-35537 |
|---|---|---|---|
| Gas Hole: | 3/4NPTF | Two Pillars Stick Nuts: | 1/2 UNC |
| Screw Center Distance: | 159 Mm | Cover Plate Diameter: | 287 Mm |
| Pressure Ability: | 0.2-0.8 M Pa | Natural Height: | 380 Mm |
| High Light: | air suspension parts,convoluted air spring |
||
Contitech FT530-35537 Triple Convoluted Air Bag Air Spring Firestone W013587853
GUOMAT NO. 3B7853 Cross others OEM
Contitech FT 530-35 537；
Contitech FT530-35 537；
Contitech FT530-35537
Firestone W01-358-7853；
Firestone W01 358 7853；
Firestone W013587853
GUOMAT NO. 3B7853 Technical Parameters
Compression height: 4.80 inches / 122MM
Top Plate Number:3136
Top plate width: 11.31 inches / 287MM
Piston Number:3316
Piston width: 11.31 inches / 287MM
Firestone bellows number: 333
Note:Chalmers

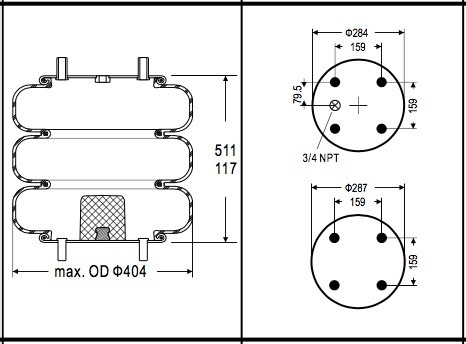

❶Nut / Blind Nut
Top Cover Plate Screw (Nut) Tooth : 4pcsX1/2-16UNC
Top Cover Plate Screw (Nut) Tooth : 4pcsX1/2-16UNC
Screw Center Distance of Top Cover Plate : 159mm
Bottom Cover Plate Screw (Nut) Tooth : 4pcsX1/2-16UNC
Screw Center Distance of Bottom Cover Plate : 159mm
❷ Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : 3/4 N P.T.F. / 3/4NPTF
❸ Cover Plate
Top Cover Plate Diameter: 284 mm
Bottom Cover Plate Diameter: 287 mm
❹Rubber Bellows
Rubber Bellows MAX Diameter: 404 mm
Rubber Bellows Natural Diameter :380 mm
The Working Stroke : MAX 511 mm to MIN 117 mm
Maximum Height : 511 mm
Minimum Height :117 mm
Compression Height : 394mm
❺ Bumper block / Buffer block
Without Bumper Block
❻ Girdle Hoop / Girdle Ring
With Girdle Hoop :Two Pieces of Girdle Hoop
Other kinds of FT 530-35 that GUOMAT have:
| GUOMAT NO. | Reference | Order NO. | Force (lbs) | Max OD (mm) | Design height(mm) | Height | Narural frequ.[cpm] | ||
| 80 psi | 100 psi | Min | MAX | ||||||
| FT 530 35 435 | FT 530-35 435 | 161358 | 6900 | 8620 | 381 | 355.6 | 104.14 | 541.02 | 75 |
| FT 530 35 436 | FT 530-35 436 | 161359 | 6900 | 8620 | 381 | 355.6 | 104.14 | 541.02 | 75 |
| FT 530 35 437 | FT 530-35 437 | 161360 | 6900 | 8620 | 381 | 355.6 | 104.14 | 541.02 | 75 |
| FT 530 35 438 | FT 530-35 438 | 161361 | 6900 | 8620 | 381 | 355.6 | 104.14 | 541.02 | 75 |
| FT 530 35 439 | FT 530-35 439 | 161362 | 6900 | 8620 | 381 | 355.6 | 101.6 | 541.02 | 75 |
| FT 530 35 441 | FT 530-35 441 | 161363 | 6900 | 8620 | 381 | 355.6 | 104.14 | 541.02 | 75 |
| FT 530 35 455 | FT 530-35 455 | 161364 | 6900 | 8620 | 381 | 355.6 | 104.14 | 541.02 | 75 |
| FT 530 35 456 | FT 530-35 456 | 161365 | 6900 | 8620 | 381 | 355.6 | 104.14 | 541.02 | 75 |
| FT 530 35 457 | FT 530-35 457 | 161366 | 6900 | 8620 | 381 | 355.6 | 104.14 | 541.02 | 75 |
| FT 530 35 521 | FT 530-35 521 | 161367 | 6900 | 8620 | 381 | 355.6 | 101.6 | 541.02 | 75 |
| FT 530 35 522 | FT 530-35 522 | 161368 | 6900 | 8620 | 381 | 355.6 | 104.14 | 541.02 | 75 |
| FT 530 35 523 | FT 530-35 523 | 161369 | 6900 | 8620 | 381 | 355.6 | 104.14 | 541.02 | 75 |
| FT 530 35 534 | FT 530-35 534 | 161370 | 6900 | 8620 | 381 | 355.6 | 101.6 | 541.02 | 75 |
| FT 530 35 537 | FT 530-35 537 | 161371 | 6900 | 8620 | 381 | 355.6 | 104.14 | 541.02 | 75 |
